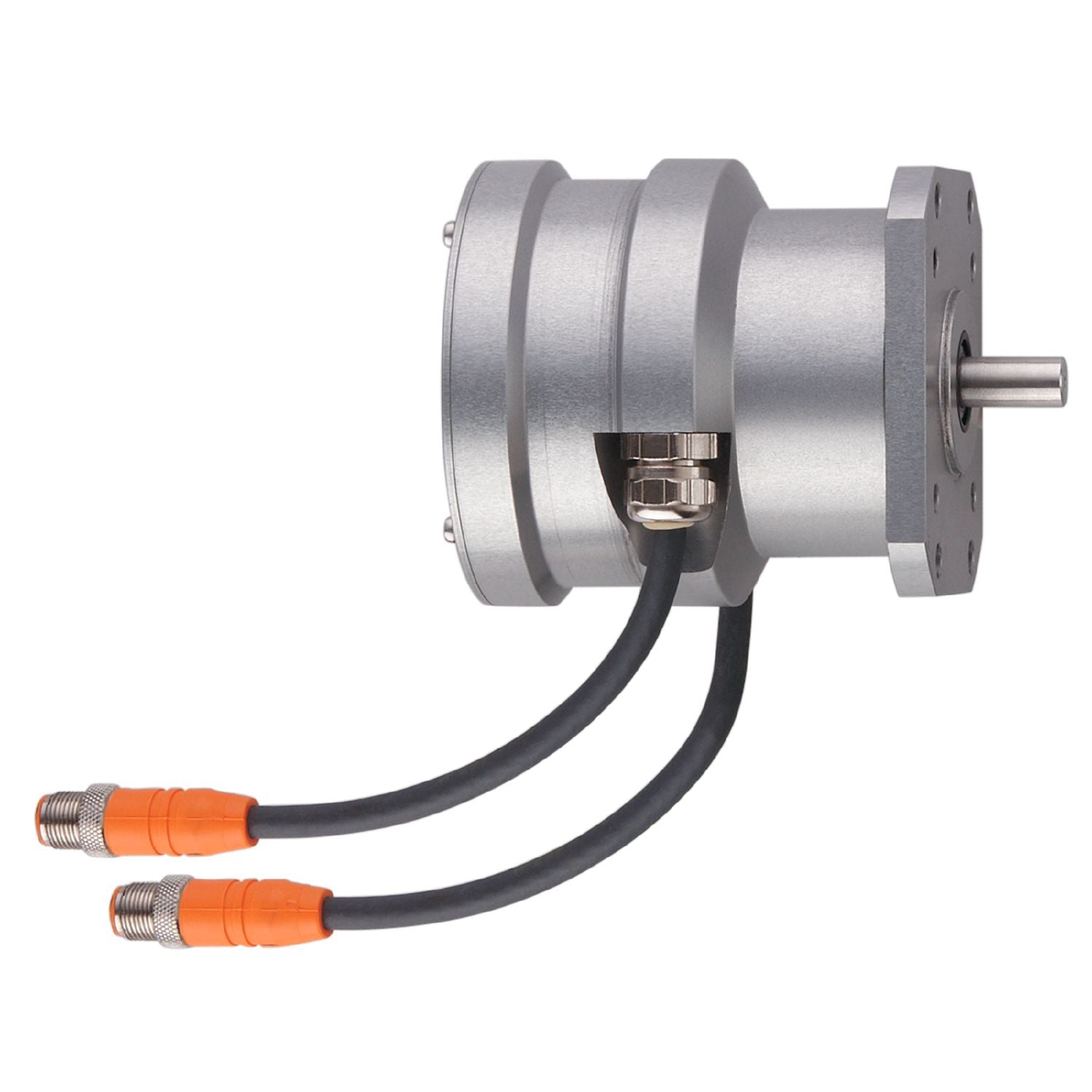

IFM RN6065 - absolute singleturn double shaft encoder RN-8192-S24/S

Resolution	8192 revolutions; 13 bit
Communication interface	SSI data interface
Shaft design	solid shaft
Shaft diameter [mm]	10

Function principle	absolute
Revolution type	singleturn

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 100

Inputs

Inputs	reversal of direction of rotation; reset to zero

Outputs

Code	Gray code;(increasing code values when turned clockwise (seen on the shaft))
Code signal	Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.)

Measuring/setting range

Resolution	8192 revolutions; 13 bit

Interfaces

Communication interface	SSI data interface

Operating conditions

Ambient temperature [°C]	-40...100
Max. relative air humidity [%]	98
Protection	IP 67

Tests / approvals

EMC	EN IEC 61000-6-4 radiation of interference / industrial environments EN IEC 61000-6-2 immunity / industrial environments
Shock resistance	EN 60068-2-27 < 50 g 6 ms
Vibration resistance	EN 60068-2-6 < 10 g / 55...2000 Hz
MTTF [years]	289

Weight [g]	1342.7
Dimensions [mm]	Ø 89 / L = 116
Materials	flange: aluminium anodised; housing: aluminium anodised
Max. revolution, mechanical [U/min]	6000
Max. starting torque [Nm]	4
Reference temperature torque [°C]	25
Shaft design	solid shaft
Shaft diameter [mm]	10
Shaft material	stainless steel (1.4305 / 303)
Max. shaft load axial (at the shaft end) [N]	40
Max. shaft load radial (at the shaft end) [N]	110

Remarks	Wires/pins not connected (n.c.) must not be used.

Electrical connection - SSI 1

Connection	Cable: 0.15 m, PUR
Connection	Connector: 1 x M12; coding: A

Electrical connection - SSI 2

	Cable: 0.15 m, PUR
	Connector: 1 x M12; coding: A

Diagrams and graphs

	1 clock 2 data t1 ≤ 0.5 µsclock: 1 MHz t2 < 0.4 µs t3 = 13...20 µs T = 1...10 µs 13 Bit without parity bit
