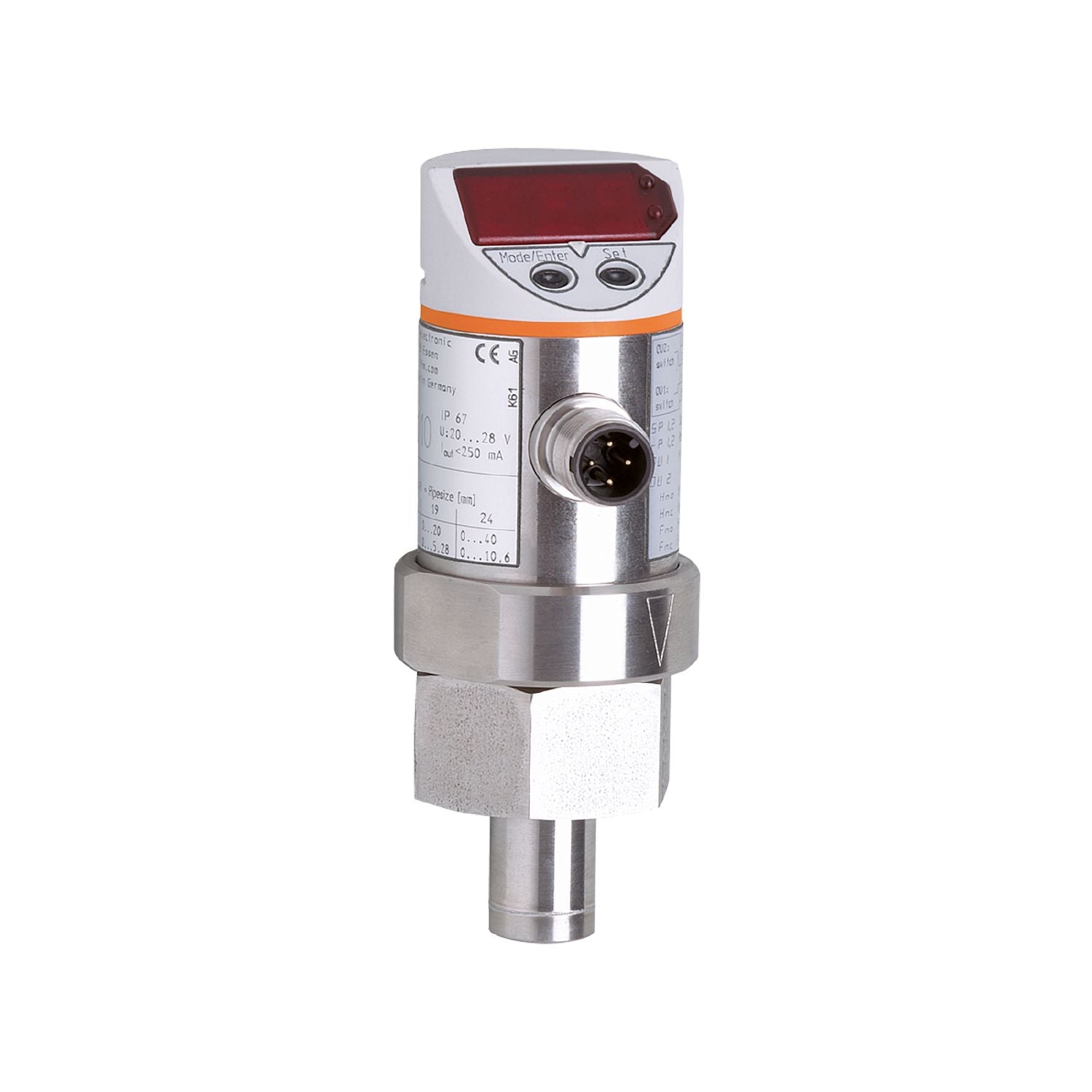

IFM SA3010 - Flow monitor SAD18BBDFRKG/W/US-100-IPF

Reliable monitoring of water in pipes.
Two switching outputs, one of them programmable as analogue output.
Easy setting of the switch points for quick set-up.
Robust housing for use in harsh industrial environments.
LED display for indication of the measured value

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range [l/min]	0...10

Special feature	Gold-plated contacts
Installation	T-pieces;((DIN 2353): QL 18-18-18 (NW 15 mm) / QL 22-18-22 (NW 19 mm) / QL 28-18-28 (NW 24 mm))
Media	water
Medium temperature [°C]	0...80
Pressure rating [bar]	30

Operating voltage [V]	20...28 DC
Current consumption [mA]	< 80
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250;(per output)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Analogue voltage output [V]	0...10; (scalable)
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range [l/min]	0...10
Display range [l/min]	0...12
Set point SP [l/min]	0.1...12
Reset point rP [l/min]	0...11.9
Analogue start point ASP [l/min]	0...8
Analogue end point AEP [l/min]	4...12
In steps of [l/min]	0.1

Accuracy / deviations

Repeatability [% of the measured value]	3 (Q < 30%) / 7 (Q < 100%)
Temperature gradient [K/min]	200
Accuracy (in the measuring range)	± 10

Response times

Response time [s]	5;(10%...90%)
Delay time programmable dS, dr [s]	0...50

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; current/voltage output; inside pipe diameter; start-up delay; adaptation of displayed values; display can be rotated and switched off; Display unit

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
MTTF [years]	184

Weight [g]	330.5
Materials	stainless steel (1.4404 / 316L); PBT; PC; PA; EPDM/X; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 70 Shore A

Displays / operating elements

Display	switching status 2 x LED, red measured values 7-segment LED display programming 7-segment LED display
Display unit	l/min; gpm; l/h; gph; m³/h

Remarks	NW = nominal diameter
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
