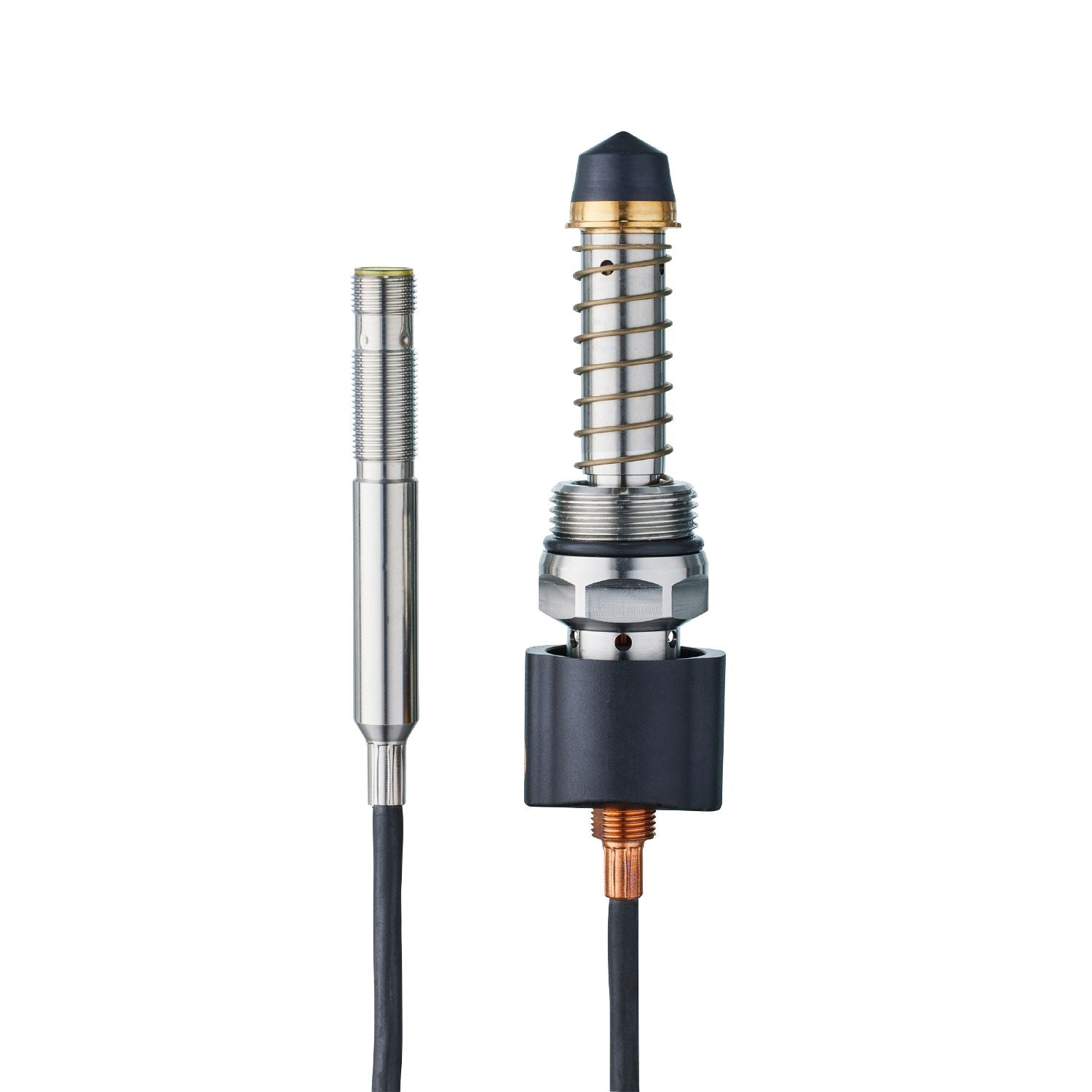

IFM SBM613 - Measurement insert for flow transmitters with integrated backflow prevention SBM34XKX10KG/O/US

Suitable for water and glycol solutions.
Reliable backflow prevention with very fast response time.
For installation in a pipe section or a valve

Measuring range [l/min]	0.3...25
Process connection	G 3/4

Media	Liquids; water; glycol solutions
Medium temperature [°C]	10...180
Pressure rating [bar]	15
Pressure rating [MPa]	1.5
Note on pressure rating	at max. medium temperature at temperatures up to 85 °C: 25 bar / 2,5 MPa

Operating voltage tolerance [%]	-15...10
Operating voltage [V]	24 DC;(to SELV/PELV)
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes

Outputs

Output signal	analogue signal
Analogue current output [mA]	4...20
Max. load [Ω]	500
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring range [l/min]	0.3...25

Accuracy / deviations

Repeatability [% of the final value]	1
Measuring error [% of the final value]	± 5

Response times

Response time [s]	< 0.01

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-15...80
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 20 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 5 g (10...2000 Hz)
MTTF [years]	1380

Weight [g]	285
Materials	brass white bronze coated; PPS; copper alloy; aluminium anodised; silicone; PEI
Materials (wetted parts)	stainless steel (316 / 1.4401); brass; PPS; O-ring: FKM
Tightening torque [Nm]	15
Process connection	G 3/4
Switching cycles mechanical	10 million

Remarks	All data refer to water (20 °C). Recommendation Use 200 micron filtration
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.3 m, silicone
Connection	Connector: 1 x M12; coding: A
