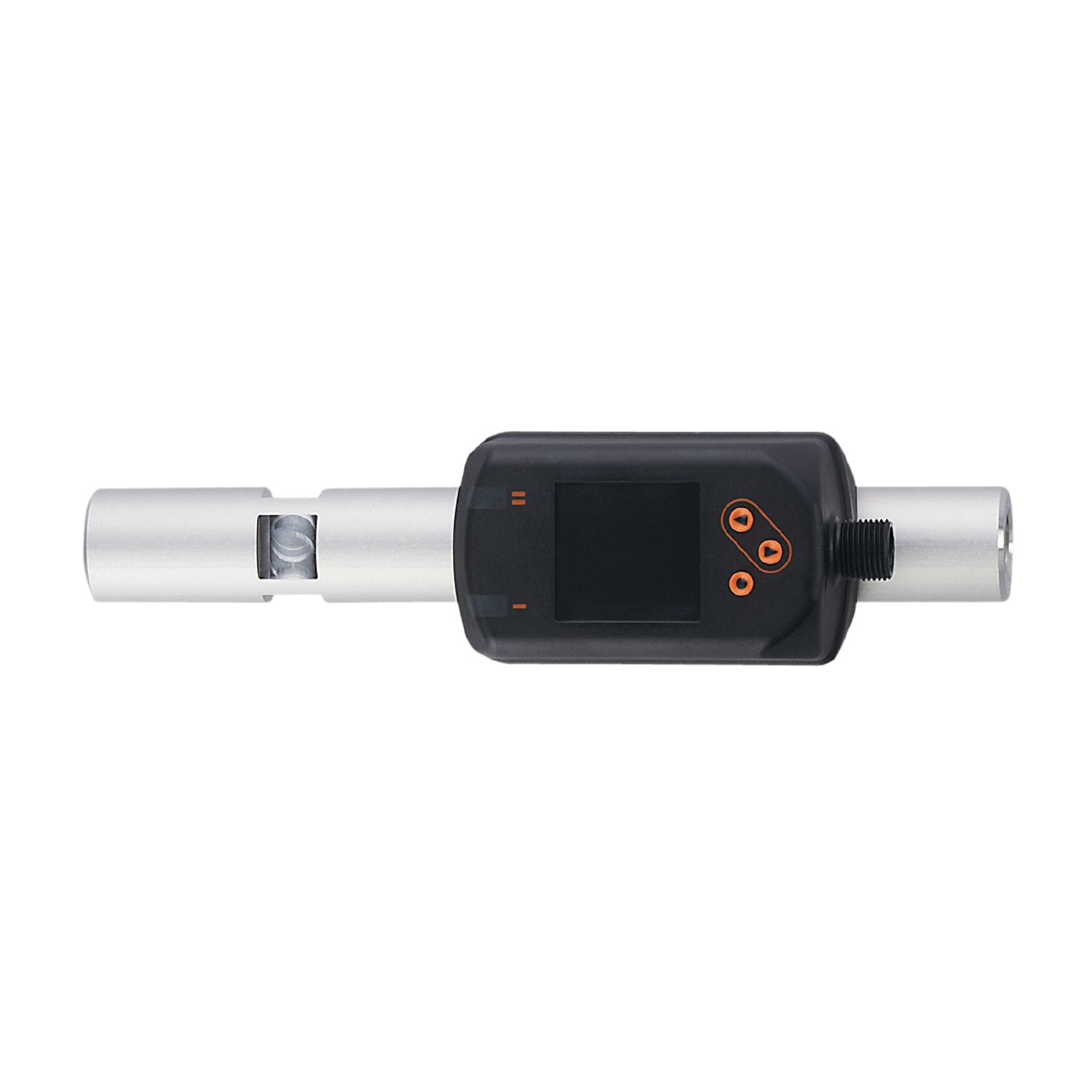

IFM SD5600 - industrial gas counter SDR14DGXFRKG/US-100

Precise measurement of flow, consumption, pressure and medium temperature.
High accuracy, repeatability and measurement dynamics.
For detecting argon (Ar), carbon dioxide (CO2), nitrogen (N2) and compressed air.
Red/green display for clear identification of the acceptable range.
Display can be rotated for optimum alignment

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	0.8...250 l/min 0.3...82.9 m/s 0.05...15 m³/h
Process connection	threaded connection G 1/4 DN8

Application	for industrial applications
Media	Argon (Ar); carbon dioxide (CO2); nitrogen (N2); compressed air
Medium temperature [°C]	-10...60
Min. bursting pressure [bar]	64
Min. bursting pressure [MPa]	6.4
Pressure rating [bar]	16
Pressure rating [MPa]	1.6
MAWP (for applications according to CRN) [bar]	9.5

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 80
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputs	counter reset

Outputs

Output signal	switching signal; analogue signal; pulse signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(per output)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Pulse output	consumed quantity meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0.8...250 l/min 0.3...82.9 m/s 0.05...15 m³/h
Display range	0...300 l/min 0...99.5 m/s 0...18 m³/h
Resolution	0.2 l/min 0.1 m/s 0.01 m³/h
Set point SP	2.2...249.9 l/min 0.7...82.9 m/s 0.13...14.99 m³/h
Reset point rP	0.9...248.7 l/min 0.3...82.5 m/s 0.06...14.92 m³/h
Analogue start point ASP	0...200 l/min 0...66.3 m/s 0...12 m³/h
Analogue end point AEP	50...250 l/min 16.6...82.9 m/s 3...15 m³/h
Low flow cut-off LFC	0.3...2.7 l/min 0.1...0.9 m/s 0.02...0.16 m³/h
In steps of	0.1 l/min 0.1 m/s 0.01 m³/h

Measuring range [bar]	-1...16
Display range [bar]	-1...20
Resolution [bar]	0.05
Set point SP [bar]	-0.92...16
Reset point rP [bar]	-1...15.92
Analogue start point [bar]	-1...12.8
Analogue end point [bar]	2.2...16
In steps of [bar]	0.01

Measuring range	0...100000000 m³ 0...353146667.2 scf
Display range	0...100000000 m³ 0...353146667.2 scf
Set point SP	0.001...10000000 m³ 0.05...353146667.2 scf
Pulse value	0.001...10000000 m³ 0.05...353146667.2 scf
In steps of	0.0001 m³ 0.005 scf
Pulse length [s]	0.01...2

Measuring range	-10...60 °C 14...140 °F
Display range	-24...74 °C -11.2...165.2 °F
Resolution	0.2 °C 0.5 °F
Set point SP	-9.7...60 °C 14.6...140 °F
Reset point rP	-10...59.7 °C 14...139.4 °F
Analogue start point	-10...46 °C 14...114.8 °F
Analogue end point	4...60 °C 39.2...140 °F
In steps of	0.1 °C 0.1 °F

Accuracy / deviations

Temperature coefficient [1/K]	± 0,07 % MW
Accuracy (in the measuring range)	± (6 % MW + 0,6 % MEW); at medium temperature 23 °C
Repeatability	± (0,4 % MW + 0,1 % MEW)

Repeatability [% of the final value]	± 0,2
Characteristics deviation [% of the final value]	< ± 0,5;(BFSL = Best Fit Straight Line)
Greatest TEMPCO of the span [% MEW / 10 K]	± 0,3
Greatest TEMPCO of the zero point [% MEW / 10 K]	± 0,1

Accuracy [K]	± 0,5;(medium flow in the limit area of the flow measurement range)

Response times

Response time [s]	0.1;(dAP = 0)
Damping process value dAP [s]	0...5

Response time [s]	0.05

Dynamic response T05 / T09 [s]	T09 = 0,5

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Digital Measuring Sensor (0x800A), Identification and Diagnosis (0x4000)
SIO mode	yes
Required master port type	A
Process data analogue	8
Process data binary	2
Min. process cycle time [ms]	7.2
Supported DeviceIDs	Type of operation DeviceID default 861

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 60947-5-9
CPA approval	model number 003TG accuracy class - maximum allowable error ± 7 % FS Q (min) 0,05 m³/h (Air) Q (t) - Q (max) 15 m³/h (Air)
Vibration resistance	DIN EN 68000-2-6 5 g (10...2000 Hz)
MTTF [years]	183
UL approval	UL Approval no. I012 File number UL E174189
Pressure Equipment Directive	Sound engineering practice; can be used for stable gases fluid group 2

Weight [g]	558
Materials	PBT+PC-GF30; PPS GF40; stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); steel (1.5523) galvanised; 2.0401 (brass / CW614N); FKM
Materials (wetted parts)	EN AW-6082 (aluminium); stainless steel (1.4305 / 303); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate
Process connection	threaded connection G 1/4 DN8

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Remarks	MW = measured value MEW = Final value of the measuring range Standard conditions: 1013.25 mbar / 15 °C / 0 % relative humidity For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SD5600-00 — 13.04.2023 —
