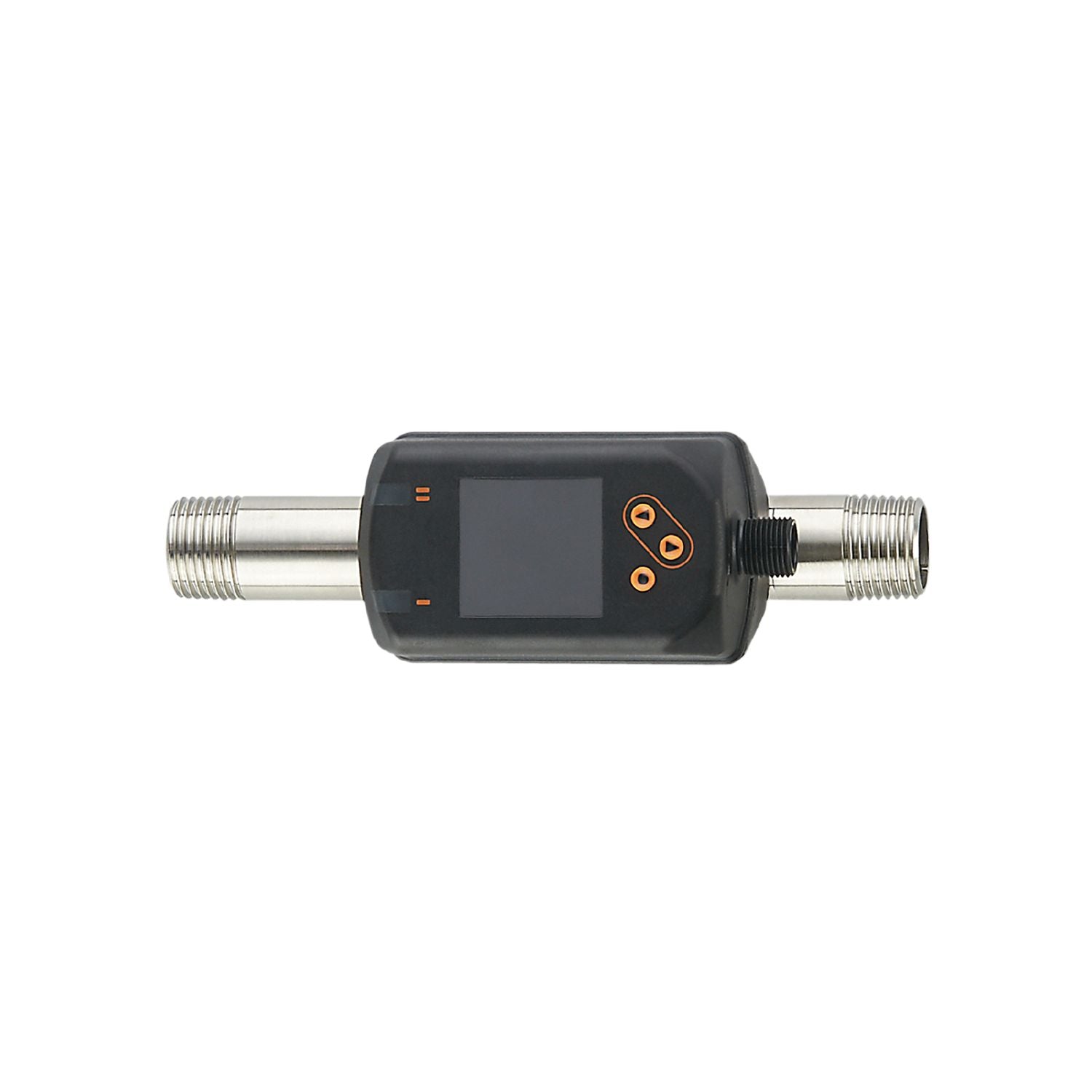

Precise measurement of flow, consumption and medium temperature. High repeatability and measurement dynamics. For detecting compressed air in industrial use. Red/green display for clear identification of the acceptable range. Display can be rotated for optimum alignment
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
4...1250 l/min
0.3...99.8 m/s
0.25...75 m³/h
Process connection
threaded connection R 1/2 DN15
Application
for industrial applications
Media
compressed air
Medium temperature [°C]
-10...60
Min. bursting pressure [bar]
64
Min. bursting pressure [MPa]
6.4
Pressure rating [bar]
16
Pressure rating [MPa]
1.6
MAWP (for applications according to CRN) [bar]
16
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Current consumption [mA]
< 80
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
1
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Permanent current rating of switching output DC [mA]
150;(per output)
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable)
Max. load [Ω]
500
Pulse output
consumed quantity meter
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
4...1250 l/min
0.3...99.8 m/s
0.25...75 m³/h
Display range
0...1500 l/min
0...119.8 m/s
0...90 m³/h
Resolution
1 l/min
0.1 m/s
0.05 m³/h
Set point SP
11...1250 l/min
0.9...99.8 m/s
0.65...74.97 m³/h
Reset point rP
5...1243 l/min
0.4...99.3 m/s
0.28...74.6 m³/h
Analogue start point ASP
0...1000 l/min
0...79.8 m/s
0...60 m³/h
Analogue end point AEP
250...1250 l/min
20...99.8 m/s
15...75 m³/h
Low flow cut-off LFC
1...13 l/min
0.1...1.1 m/s
0.09...0.8 m³/h
In steps of
1 l/min
0.1 m/s
0.01 m³/h
Volumetric flow quantity monitoring
Measuring range
0...100000000 m³
0...353146667.2 scf
Display range
0...100000000 m³
0...353146667.2 scf
Set point SP
0.001...10000000 m³
0.05...353146667.2 scf
Pulse value
0.001...10000000 m³
0.05...353146667.2 scf
In steps of
0.0001 m³
0.005 scf
Pulse length [s]
0.002...2
Temperature monitoring
Measuring range
-10...60 °C
14...140 °F
Display range
-24...74 °C
-11.2...165.2 °F
Resolution
0.2 °C
0.5 °F
Set point SP
-9.7...60 °C
14.6...140 °F
Reset point rP
-10...59.7 °C
14...139.4 °F
Analogue start point
-10...46 °C
14...114.8 °F
Analogue end point
4...60 °C
39.2...140 °F
In steps of
0.1 °C
0.1 °F
Accuracy / deviations
Temperature coefficient [1/K]
± 0,07 % MW
Accuracy (in the measuring range)
± (15 % MW + 1,5 % MEW);(maximum value to be achieved for air quality class 344 (DIN8573-1:2010); when using pipes of tolerance class T3/T4; inlet and outlet pipe lengths without edges and abrupt diameter changes; inner surface of the pipe free of burrs)
Repeatability
± 1,5 % MW
Temperature monitoring
Accuracy [K]
± 0,5;(medium flow in the limit area of the flow measurement range)
Response times
Response time [s]
0.1;(dAP = 0)
Damping process value dAP [s]
0...5
Temperature monitoring
Dynamic response T05 / T09 [s]
T09 = 0,5
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Digital Measuring Sensor (0x800A), Identification and Diagnosis (0x4000)
SIO mode
yes
Required master port type
A
Process data analogue
6
Process data binary
2
Min. process cycle time [ms]
5.9
Supported DeviceIDs
Type of operation
DeviceID
default
1001
Operating conditions
Ambient temperature [°C]
0...60
Storage temperature [°C]
-20...85
Max. relative air humidity [%]
90
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 60947-5-9
CPA approval
model number
004TG
accuracy class
-
maximum allowable error
± 16,5 % FS
Q (min)
0,25 m³/h
Q (t)
-
Q (max)
75 m³/h
Vibration resistance
DIN EN 68000-2-6
5 g (10...2000 Hz)
MTTF [years]
195
UL approval
UL Approval no.
I012
File number UL
E174189
Pressure Equipment Directive
Sound engineering practice; can be used for stable gases fluid group 2
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
For information about installation and operation please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SD6020-00 — 13.04.2023 —
