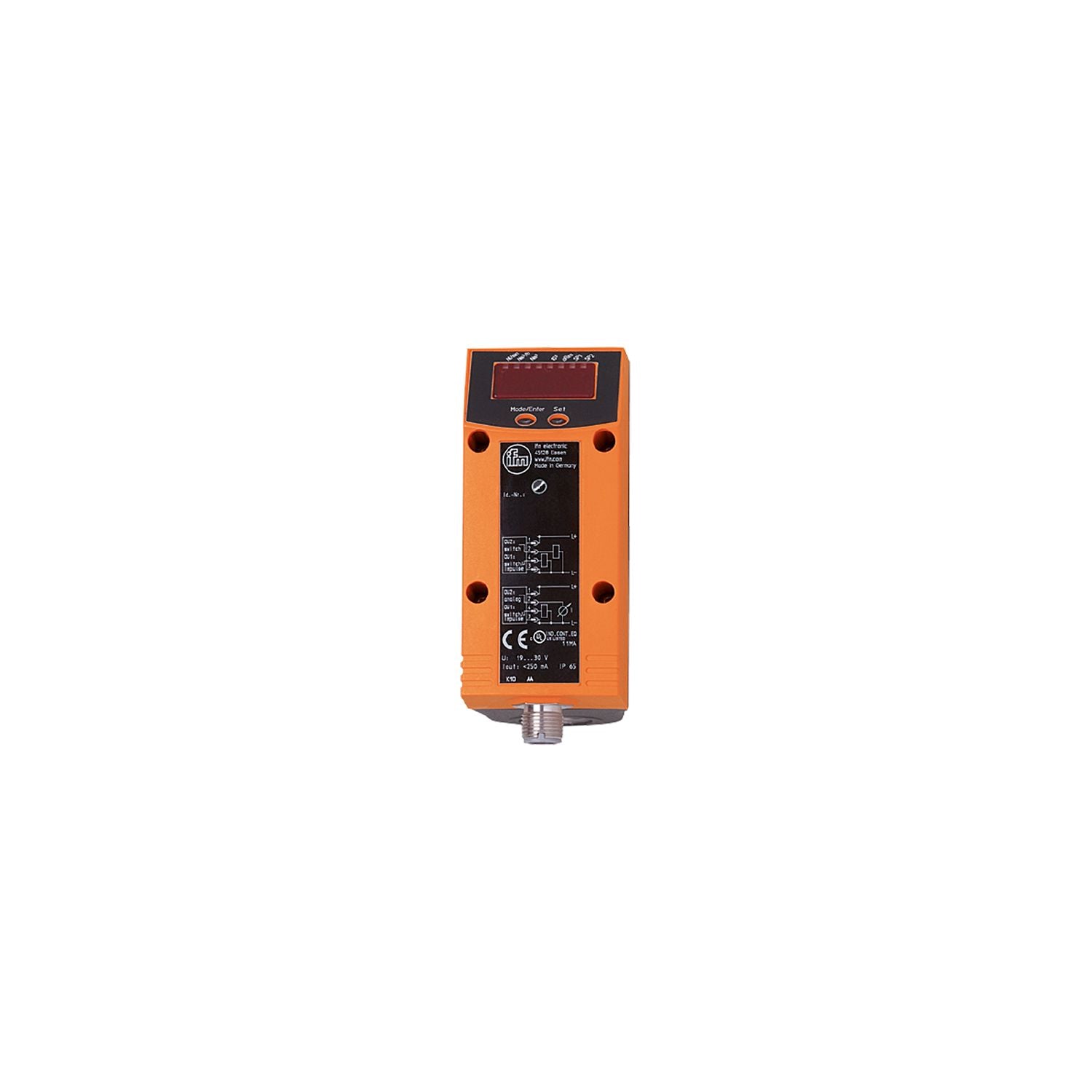

IFM SD6050 - Compressed air meter SDR12DGXFPKG/US-100

Precise measurement of flow, consumption and medium temperature.
High accuracy, repeatability and measurement dynamics.
For detecting compressed air in industrial use.
With switching output, analogue output and pulse output.
Clearly visible 4-digit LED display

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	10...1250 l/min 0.3...103.6 m/s 0.2...75 m³/h
Process connection	threaded connection G 1/2 DN15

Application	for industrial applications
Media	compressed air
Medium temperature [°C]	0...60
Pressure rating [bar]	16
Pressure rating [MPa]	1.6

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 110
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; pulse signal; IO-Link;(configurable)
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250;(per output)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Pulse output	consumed quantity meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	10...1250 l/min 0.3...103.6 m/s 0.2...75 m³/h
Display range	0...1500 l/min 0...124.3 m/s 0...90 m³/h
Set point SP	10...1250 l/min 0.8...103.6 m/s 0.6...75 m³/h
Reset point rP	4...1244 l/min 0.3...103.1 m/s 0.2...74.6 m³/h
Analogue start point ASP	0...938 l/min 0...77.7 m/s 0...56.3 m³/h
Analogue end point AEP	312...1250 l/min 25.9...103.6 m/s 18.7...75 m³/h
In steps of	1 l/min 0.1 m/s 0.1 m³/h

Pulse value	0.001...1000000 m³
In steps of	0.001 m³
Pulse length [s]	0,02...2

Measuring range [°C]	0...60
Display range [°C]	-12...72

Accuracy / deviations

Repeatability [% of the measured value]	± 1,5
Accuracy (in the measuring range)	± (15 % MW + 1,5 % MEW);(maximum value to be achieved for air quality class 344 (DIN 8573-1); when using pipes of tolerance class T3/T4; inlet and outlet pipe lengths without edges and abrupt diameter changes; inner surface of the pipe free of burrs)

Accuracy [K]	± 2;(medium flow in the limit area of the flow measurement range)

Response times

Response time [s]	0.1;(dAP = 0)
Damping process value dAP in steps [s]	0 - 0,2 - 0,4 - 0,6 - 0,8 - 1

Software / programming

Parameter setting options	Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated and switched off; Display unit; totaliser

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	no profile
SIO mode	yes
Required master port type	A
Process data analogue	3
Process data binary	2
Min. process cycle time [ms]	4.1
Supported DeviceIDs	Type of operation DeviceID default 262

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90
Protection	IP 65

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
CPA approval	model number 004TG accuracy class - maximum allowable error ± 16,5 % FS Q (min) 0,2 m³/h Q (t) - Q (max) 75 m³/h
Vibration resistance	DIN EN 68000-2-6 5 g (55...2000 Hz)
MTTF [years]	227
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	579
Materials	PBT-GF20; NBR; PC; stainless steel (1.4301 / 304); PTFE; brass coated; FKM; aluminium powder-coated
Materials (wetted parts)	stainless steel (1.4301 / 304); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminium
Tightening torque [Nm]	50
Process connection	threaded connection G 1/2 DN15

Displays / operating elements

Display	Display unit 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) function display 1 x LED, green switching status 2 x LED, yellow measured values alphanumeric display, 4-digit programming alphanumeric display, 4-digit

Remarks	MW = measured value MEW = Final value of the measuring range Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533. For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SD6050-01 — 13.04.2023 —
