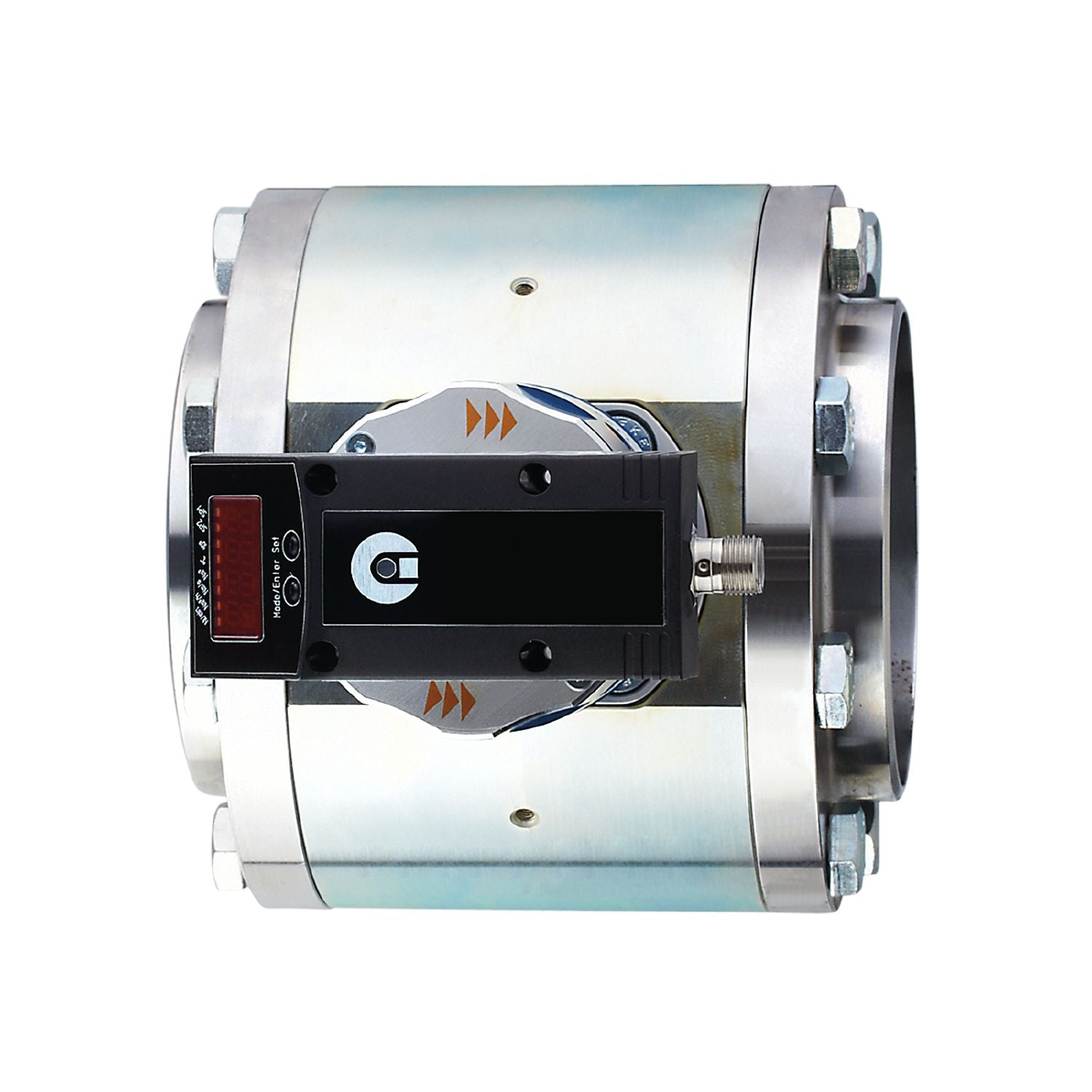

IFM SDG202 - Compressed air meter SDG8"(DN200)metris PB DN200 LM

Precise measurement of flow and consumption.
High accuracy, repeatability and measurement dynamics.
For detecting compressed air in industrial use.
With switching output, analogue output and pulse output.
Clearly visible 4-digit LED display

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range [m³/h]	58...17500
Process connection	flange DN200 according to:DIN EN 10220

Application	totaliser function
Media	compressed air
Note on media	air quality ISO 8573-1 class 141 class 344
Medium temperature [°C]	0...60
Pressure rating [bar]	16
Pressure rating [MPa]	1.6

Operating voltage [V]	19...30 DC
Current consumption [mA]	< 100
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; pulse signal;(configurable)
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250;(per output)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Pulse output	consumed quantity meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range [m³/h]	58...17500
Display range [m³/h]	0...21000

Pulse value	10 Nm³
Pulse length [s]	0,1

Accuracy / deviations

Accuracy (in the measuring range)	± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW);(class 141 /; class 344)

Response times

Response time [s]	0.1;(dAP = 0)

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90
Protection	IP 65

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Vibration resistance	DIN IEC 68-2-6 5 g (55...2000 Hz)
MTTF [years]	214

Weight [g]	37951
Materials	PBT-GF20; PC; PC; stainless steel (1.4301 / 304); FKM; pipe section: steel galvanised
Materials (wetted parts)	stainless steel (316 / 1.4401); stainless steel (1.4301 / 304); ceramics glass passivated; PEEK; polyester; FKM; aluminium anodised; steel galvanised
Process connection	flange DN200 according to:DIN EN 10220

Remarks	MW = measured value MEW = Final value of the measuring range Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533. For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
