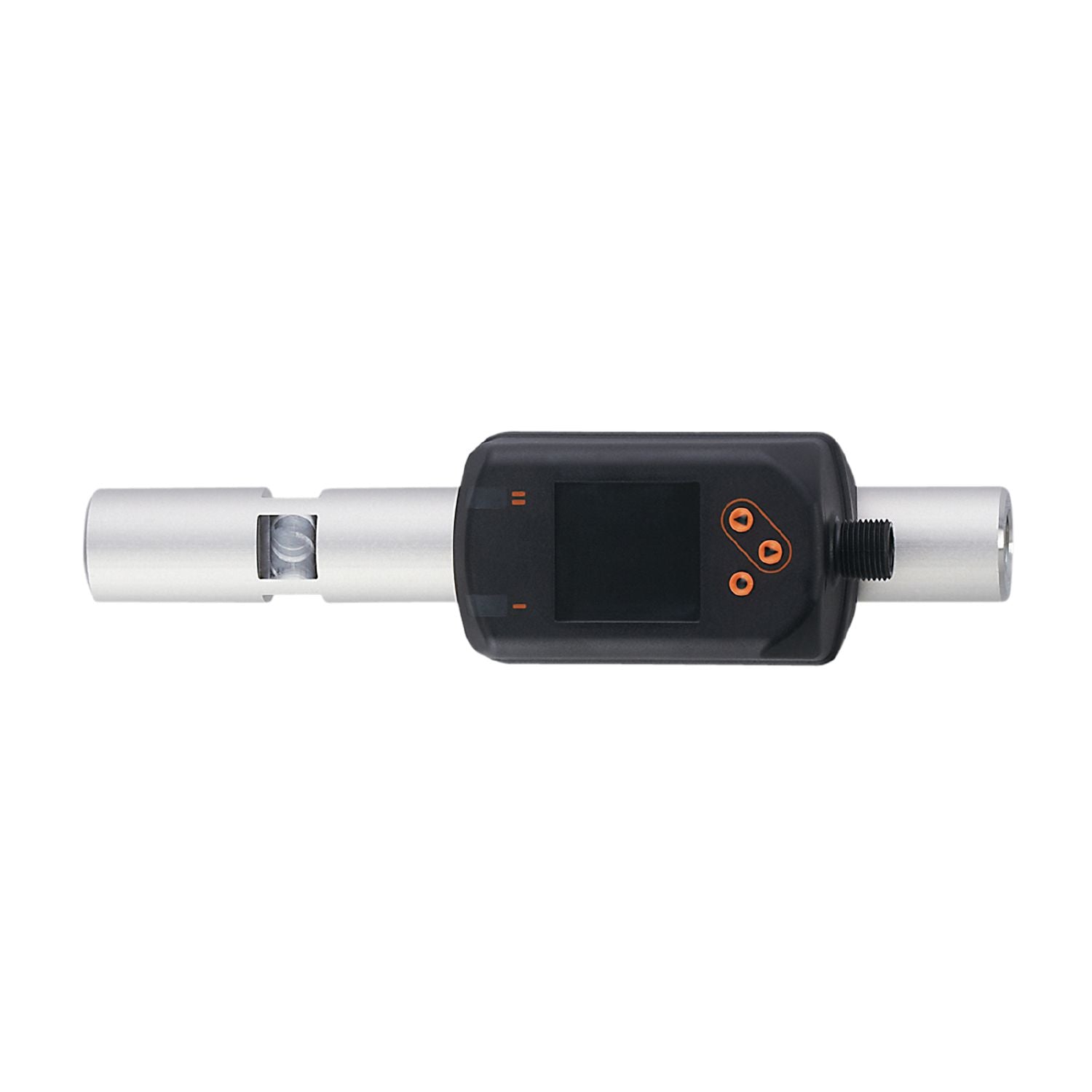

IFM SDP110 - air gap sensor SDR14DGXFRKG/US-100

Air gap provided as absolute value.
Precise values at all times thanks to pressure-compensated measuring principle.
Enables zero gap and clogging detection.
Self-cleaning measuring channel even resists purge air pressure.
Easy teaching of thresholds with just one click

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Process connection	threaded connection G 1/4 DN8

Measuring range	0...400;(depending on the nozzle used) µm

Measuring range	0...800

Application	for industrial applications
Media	compressed air
Medium temperature [°C]	-10...60
Min. bursting pressure	64 bar 6.4 MPa
Pressure rating	16 bar 1.6 MPa

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 80
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputs	teach input

Outputs

Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(per output)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0...400;(depending on the nozzle used) µm
Setting range	0...500;(depending on the nozzle used) µm
Resolution	1 µm
Set point SP	2...500 µm
Reset point rP	0...498 µm
Analogue start point ASP	0...400 µm
Analogue end point AEP	100...500 µm
In steps of	1 µm

Measuring range	0...800
Setting range	0...1000
Resolution	1
Set point SP	4...1000
Reset point rP	0...996
Analogue start point ASP	0...800
Analogue end point AEP	200...1000
In steps of	1

Measuring range [bar]	-1...16
Display range [bar]	-1...20
Resolution [bar]	0.05
Set point SP [bar]	-0.92...16
Reset point rP [bar]	-1...15.92
Analogue start point [bar]	-1...12.8
Analogue end point [bar]	2.2...16
In steps of [bar]	0.01

Measuring range	0.8...100 l/min 0.3...33.2 m/s 0.05...6 m³/h
Display range	0...120 l/min 0...39.8 m/s 0...7.2 m³/h
Resolution	0.2 l/min 0.1 m/s 0.01 m³/h
Set point SP	1.4...100 l/min 0.5...33.2 m/s 0.08...6 m³/h
Reset point rP	0.9...99.5 l/min 0.3...33 m/s 0.05...5.97 m³/h
Analogue start point ASP	0...80 l/min 0...26.6 m/s 0...4.8 m³/h
Analogue end point AEP	20...100 l/min 6.6...33.2 m/s 1.2...6 m³/h
Low flow cut-off LFC	0.6...1 l/min 0.2...0.3 m/s 0.04...0.06 m³/h
In steps of	0.1 l/min 0.1 m/s 0.01 m³/h

Accuracy / deviations

Accuracy (in the measuring range)	± (5% MW + 5 µm);(pressure 1...3 bar)
Repeatability	± (3% MW + 2 µm);(pressure 1...6 bar)

Repeatability [% of the final value]	± 0,2
Characteristics deviation [% of the final value]	< ± 0,5;(BFSL = Best Fit Straight Line)
Greatest TEMPCO of the span [% MEW / 10 K]	± 0,3
Greatest TEMPCO of the zero point [% MEW / 10 K]	± 0,1

Temperature coefficient [1/K]	± 0,07 % MW
Accuracy (in the measuring range)	class 141: ± (2 % MW + 1 % MEW); class 344: ± (6 % MW + 1,2 % MEW) ; air quality to ISO 8573-1:2010; at medium temperature 23 °C
Repeatability	± (0,8 % MW + 0,4 % MEW)

Response times

Response time [s]	0.05

Response time [s]	0.1;(dAP = 0)
Damping process value dAP [s]	0...5

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; current output; display can be rotated and switched off; Display unit; Teach function

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Process data analogue	7
Process data binary	2
Min. process cycle time [ms]	7.2
Supported DeviceIDs	Type of operation DeviceID default 1333
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 60947-5-9
Vibration resistance	DIN EN 68000-2-6 5 g (10...2000 Hz)
MTTF [years]	167
UL approval	UL Approval no. I012 File number UL E174189
Pressure Equipment Directive	Sound engineering practice; can be used for stable gases fluid group 2

Weight [g]	548.2
Materials	PBT+PC-GF30; PPS GF40; stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); steel (1.5523) galvanised; 2.0401 (brass / CW614N); FKM
Materials (wetted parts)	EN AW-6082 (aluminium); stainless steel (1.4305 / 303); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate; SINT-A51; stainless steel (1.4301 / 304); CW510L (brass)
Process connection	threaded connection G 1/4 DN8

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Remarks	MW = measured value MEW = Final value of the measuring range Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533. For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SDP110-00 — 17.08.2021 —
