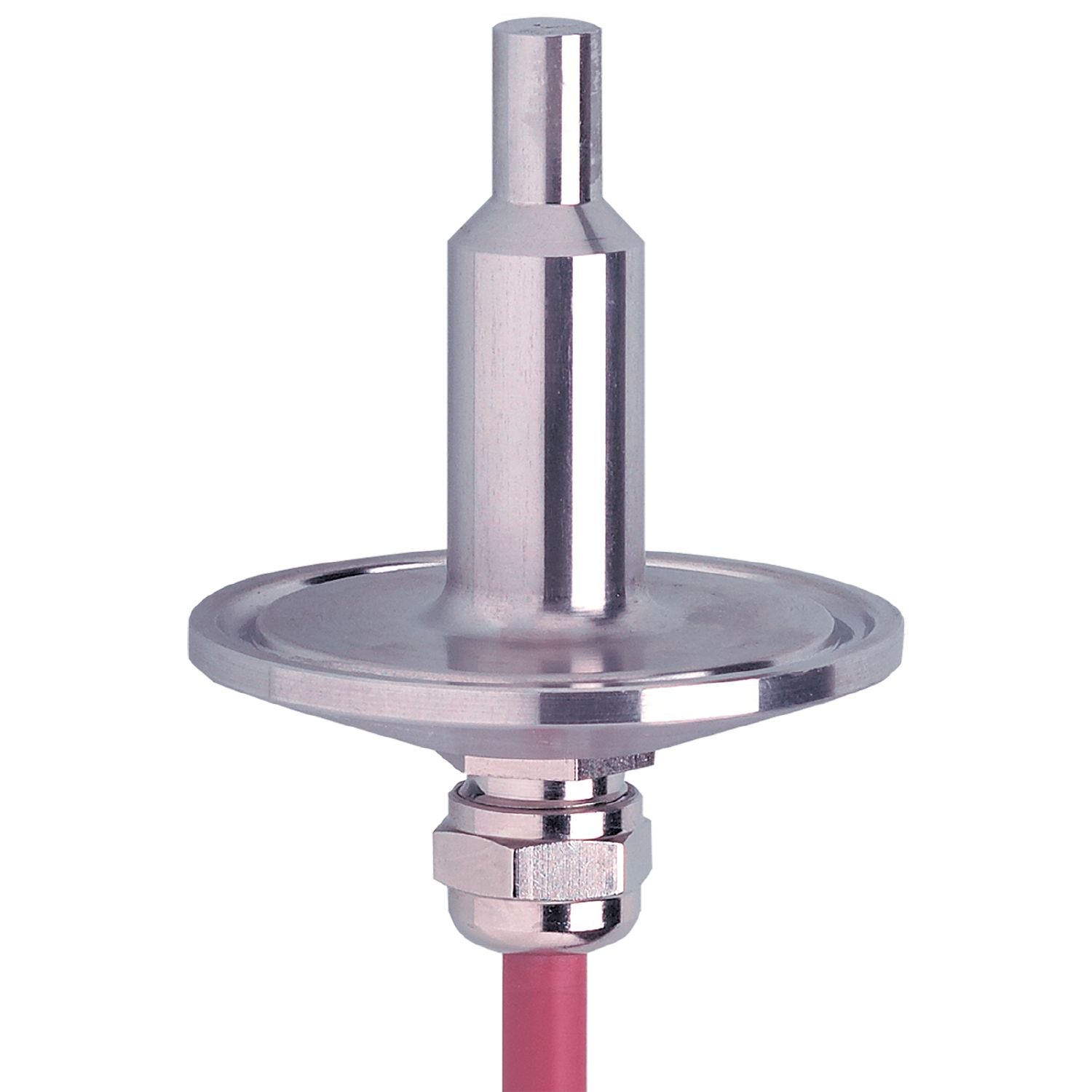

IFM SF0516 - Flow sensor for connection to an evaluation unit SFG14ZBB/6M

Reliable monitoring of liquids and gases in pipes.
For connection to an evaluation unit.
Wetted parts made of stainless steel.
Hygienic design for the requirements of the food and beverage industry.
Suitable for medium temperatures up to 120 °C

Probe length L [mm]	42
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Application	high-temperature range; hygienic applications
Pressure rating [bar]	30

Application	high-temperature range; hygienic applications
Medium temperature [°C]	0...120

Medium temperature [°C]	0...100

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	42

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Setting range [cm/s]	200...2000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	15

Response times

Response time [s]	1...10

Response time [s]	1...10

Response time [s]	1...10

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years]	8648

Weight [g]	485
Materials	stainless steel (1.4571/316Ti )
Materials (wetted parts)	stainless steel (1.4571/316Ti )
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Remarks	The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF0516-00 — 05.11.2020 —
