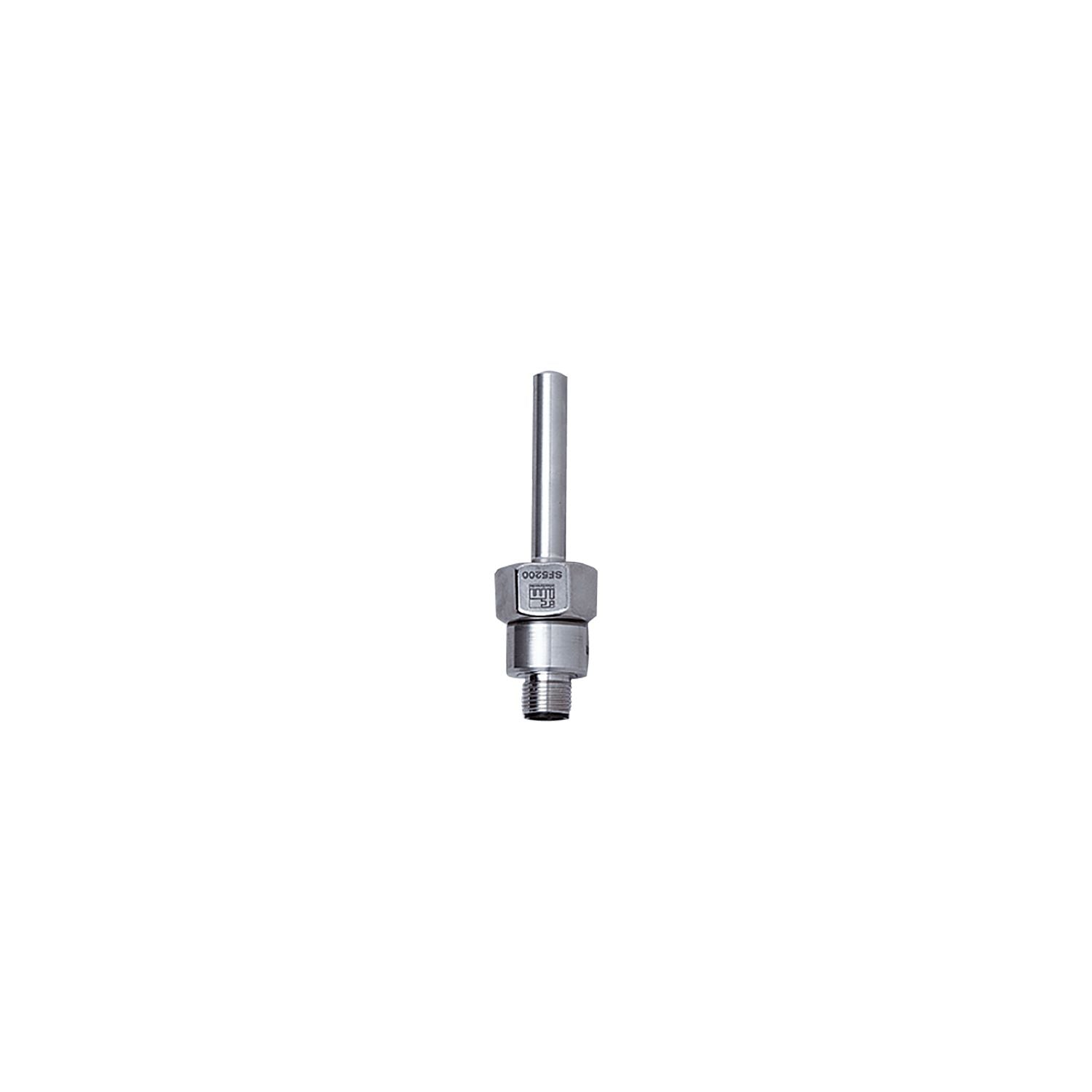

IFM SF0537 - Flow sensor for connection to an evaluation unit SFD10ABB /US-100

Reliable monitoring of liquids and gases.
For connection to an evaluation unit.
Simple process connection via adapter.
Robust design for use in harsh industrial environments.
M12 connector for fast and easy connection

Probe length L [mm]	45
Process connection	M18 x 1,5 internal thread

Application	high-temperature range
Media	Liquids; Gases
Medium temperature [°C]	-25...80
Pressure rating [bar]	30

Application	high-temperature range
Medium temperature [°C]	-25...80

Medium temperature [°C]	-25...80

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	45

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	300

Response times

Response time [s]	1...10

Response time [s]	1...10

Response time [s]	1...10

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years]	8213

Weight [g]	87.5
Housing	for adapter
Materials	stainless steel (1.4404 / 316L)
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Maximum cable length: 100 m

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF0537-00 — 05.11.2020 —
