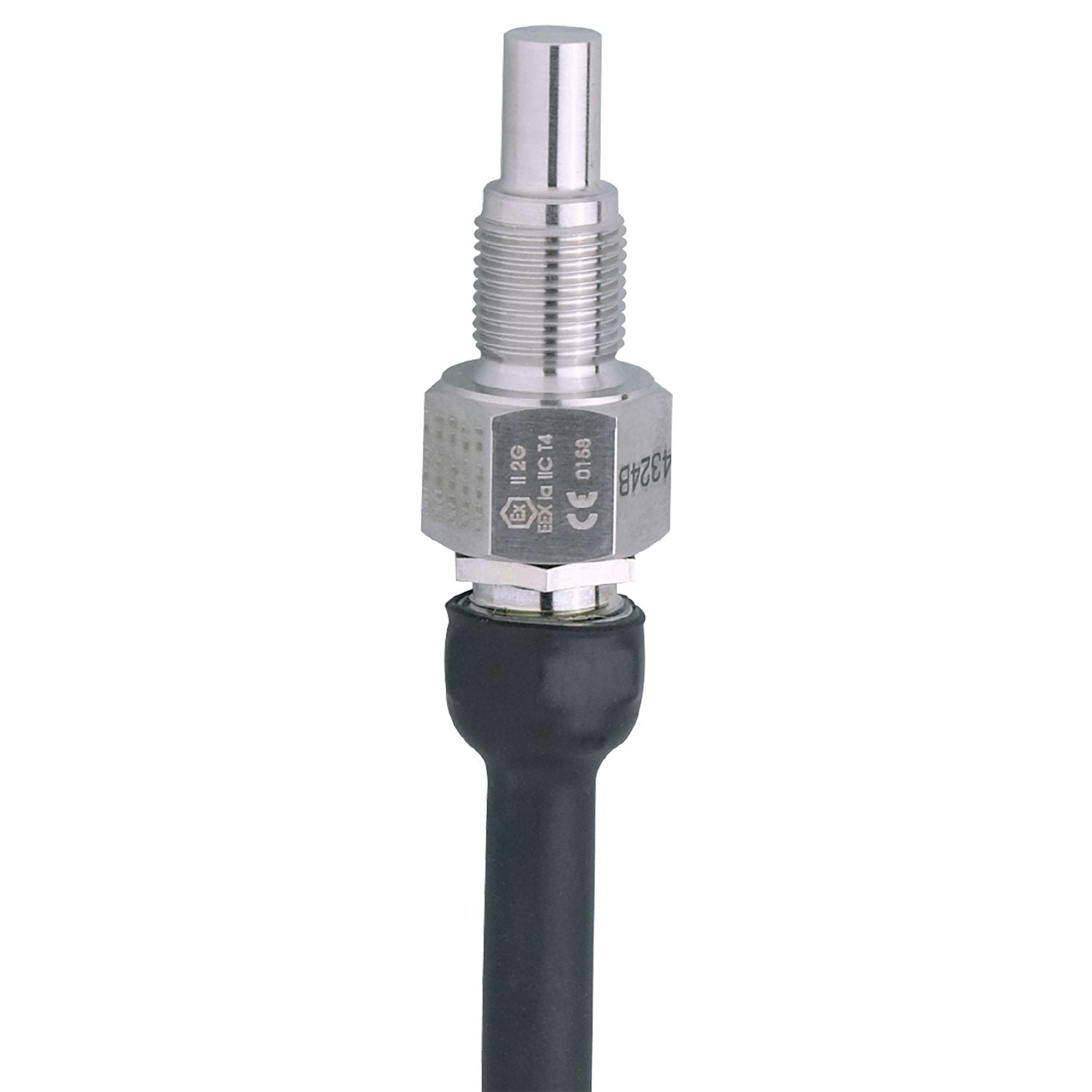

For applications in hazardous areas. Reliable monitoring of liquids and gases in pipes. For connection to an evaluation unit. Robust design for use in harsh industrial environments. Very high pressure rating
Probe length L [mm]
12
Process connection
M12 x 1
Media
Liquids; Gases
Medium temperature [°C]
-20...60
Pressure rating [bar]
300
Liquids
Medium temperature [°C]
-20...60
Gases
Medium temperature [°C]
-20...60
Connection to control monitor
VS2000 Exi (PTB 01 ATEX 2075)
Measuring/setting range
Probe length L [mm]
12
Liquids
Setting range [cm/s]
3...300
Greatest sensitivity [cm/s]
3...60
Gases
Setting range [cm/s]
200...2000
Greatest sensitivity [cm/s]
200...800
Accuracy / deviations
Temperature gradient [K/min]
15
Response times
Response time [s]
1...10
Liquids
Response time [s]
1...10
Gases
Response time [s]
1...10
Operating conditions
Ambient temperature [°C]
-20...60
Protection
IP 67
Tests / approvals
Approval
DMT 03 ATEX E 090 X; TIIS TC17434; IECEx BVS 11.0017 X
ATEX marking
II1/2GEx ia IIC T4 Ga/Gb
Shock resistance
DIN IEC 68-2-27
40 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
10 g (55...2000 Hz)
MTTF [years]
8648
Weight [g]
354.5
Housing
threaded type
Dimensions [mm]
M12 x 1
Thread designation
M12 x 1
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L)
Process connection
M12 x 1
Installation length EL [mm]
27
Remarks
In principle, the type test according to 94/9/EC (ATEX) only takes atmospheric conditions into account (0.8...1.1 bar).
For pressures outside this range use must be assessed and approved by the user.
Adhere to the operating instructions and the type test certificate.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 6 m, TPE-S; Maximum cable length: 100 m; 5 x 0.34 mm²
