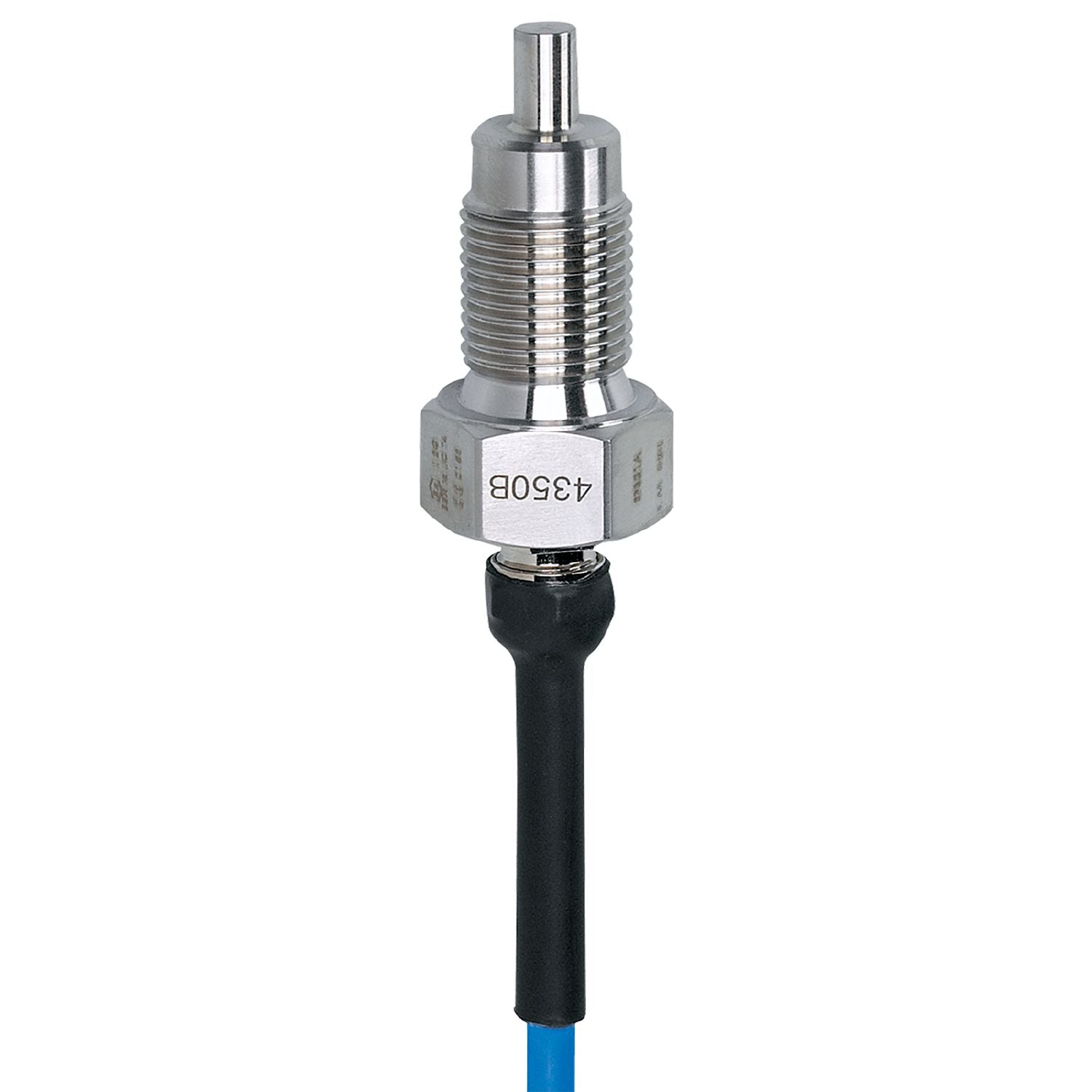

For applications in hazardous areas. Reliable monitoring of liquids and gases in pipes. For connection to an evaluation unit. Robust design for use in harsh industrial environments. Simple process connection via adapter
Probe length L [mm]
12
Process connection
G 1/2 external thread
Media
Liquids; Gases
Medium temperature [°C]
-20...70
Pressure rating [bar]
30
Liquids
Medium temperature [°C]
-20...70
Gases
Medium temperature [°C]
-20...70
Connection to control monitor
VS2000 Exi (PTB 01 ATEX 2075)
Measuring/setting range
Probe length L [mm]
12
Liquids
Setting range [cm/s]
3...300
Greatest sensitivity [cm/s]
3...60
Gases
Setting range [cm/s]
200...2000
Greatest sensitivity [cm/s]
200...800
Accuracy / deviations
Temperature gradient [K/min]
15
Response times
Response time [s]
1...10
Liquids
Response time [s]
1...10
Gases
Response time [s]
1...10
Operating conditions
Ambient temperature [°C]
-20...70
Protection
IP 67
Tests / approvals
Approval
DMT 03 ATEX E091; IECEX BVS 06.0007
ATEX marking
II2GEx ia IIC T4 Gb
Shock resistance
DIN IEC 68-2-27
40 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
10 g (55...2000 Hz)
MTTF [years]
8648
Safety classification
Max. internal capacitance [nF]
1.2
Max. internal inductance [µH]
6
Temperature class
T4
Weight [g]
456
Housing
threaded type
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L)
Process connection
G 1/2 external thread
Installation length EL [mm]
45
Remarks
In principle, the type test according to 94/9/EC (ATEX) only takes atmospheric conditions into account (0.8...1.1 bar).
For pressures outside this range use must be assessed and approved by the user.
Adhere to the operating instructions and the type test certificate.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 6 m, TPE-S; Maximum cable length: 100 m; 5 x 0.34 mm²
