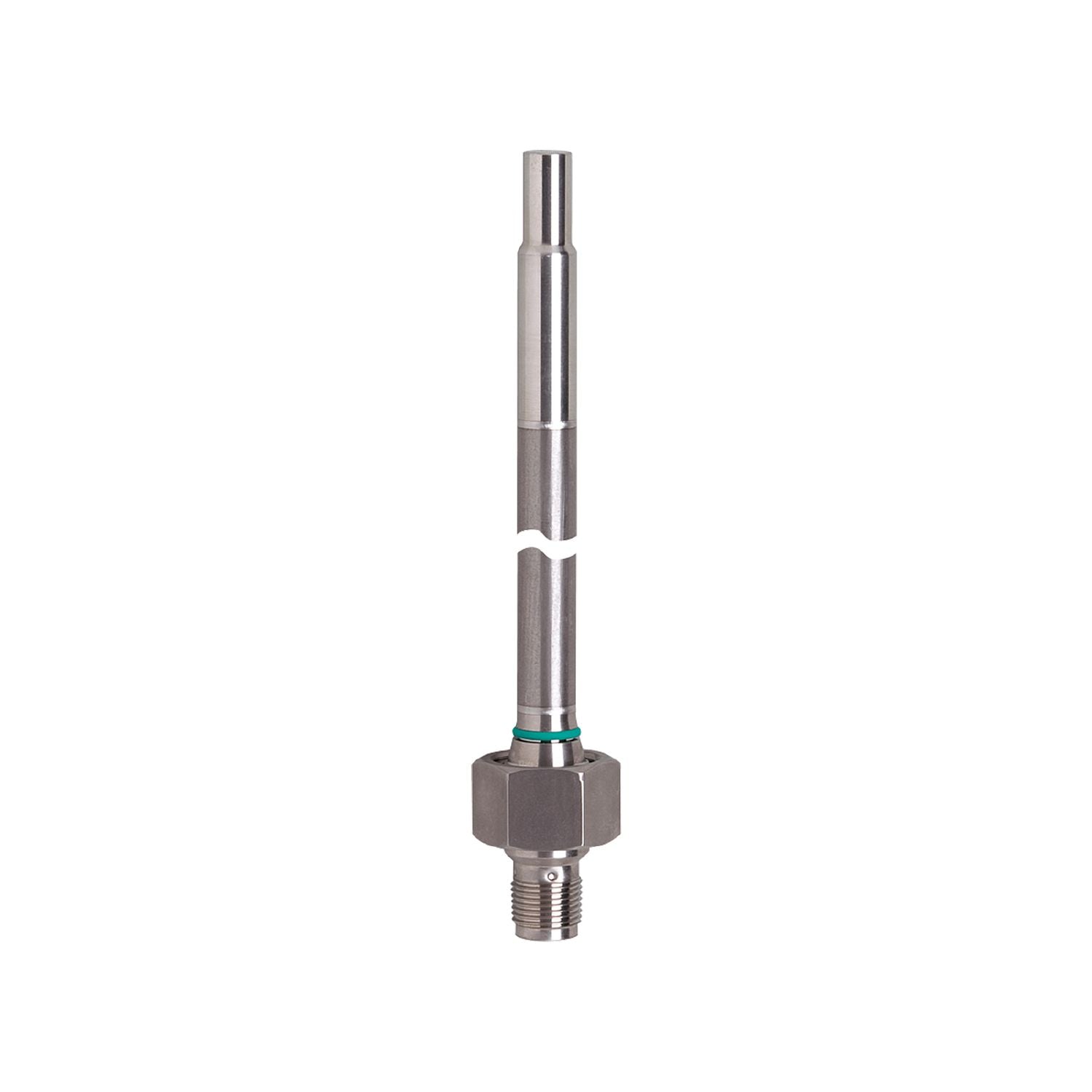

IFM SF5703 - Flow sensor for connection to an evaluation unit SFD10ADT /US-100

Reliable monitoring of liquids and gases in pipes.
For connection to an evaluation unit.
Simple process connection via adapter.
Titanium materials for contact with the medium for use in aggressive media.
M12 connector for fast and easy connection

Probe length L [mm]	143
Process connection	M18 x 1,5 internal thread

Media	Liquids; Gases; aggressive media
Medium temperature [°C]	-25...80
Pressure rating [bar]	100

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	143

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	300

Response times

Response time [s]	1...10

Operating conditions

Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years]	8393.77

Weight [g]	75
Housing	for adapter
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	titanium (3.7035); EPDM; ULTEM
Materials (wetted parts)	titanium (3.7035); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Maximum cable length: 100 m
