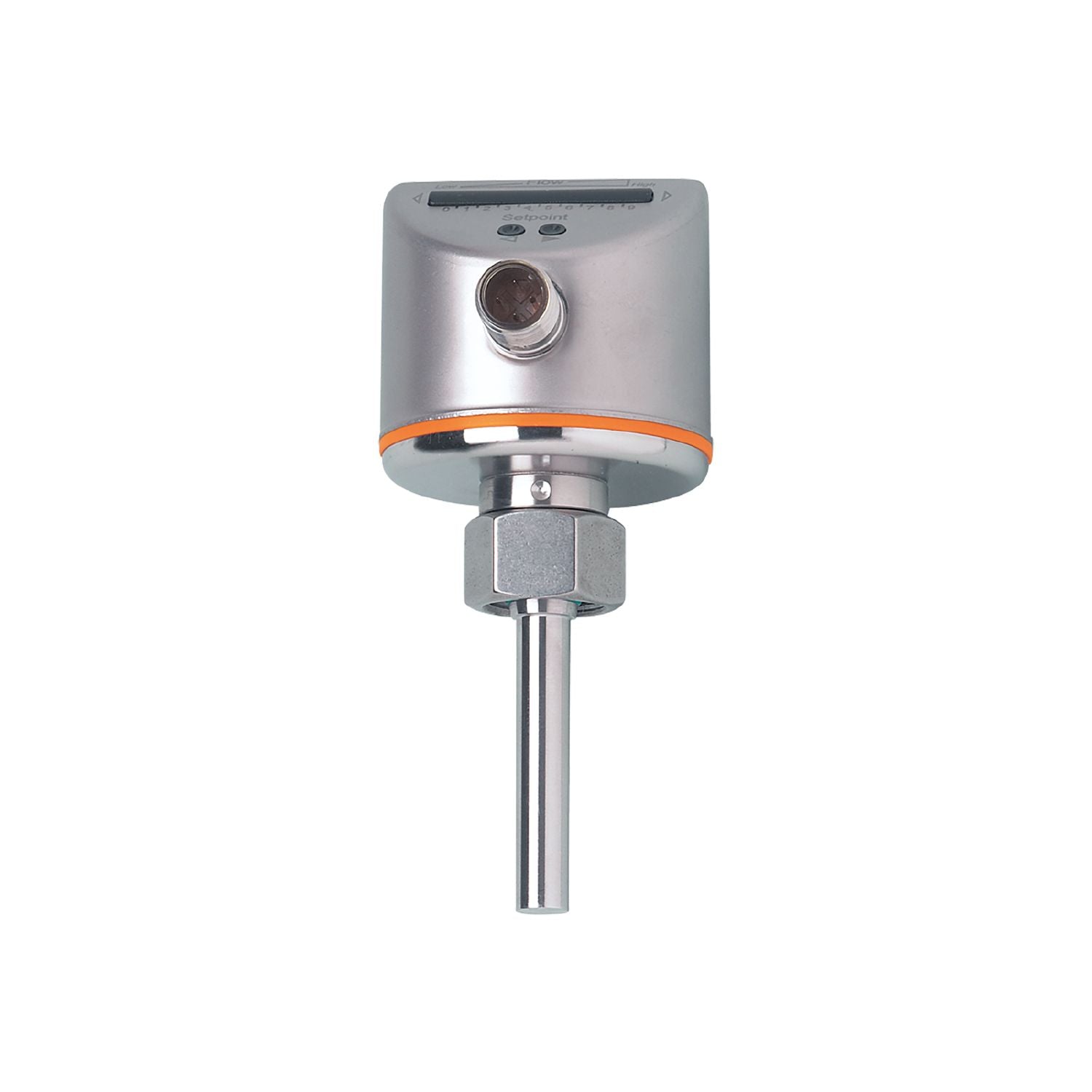

IFM SI0553 - Flow monitor SID10ADHFPKG/US-100

Reliable monitoring of liquids and gases in pipes.
Variable process connection using adapters.
Easy setting of the switch points for quick set-up.
Robust stainless steel housing for use in harsh industrial environments.
LED bar graph for indication of switch point and flow

Number of inputs and outputs	Number of digital outputs: 1
Process connection	M18 x 1,5 internal thread

Media	Liquids; Gases; aggressive media
Medium temperature [°C]	-25...80
Pressure rating [bar]	300

Medium temperature [°C]	-25...80

Medium temperature [°C]	-25...80

Operating voltage [V]	19...36 DC
Current consumption [mA]	< 60
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Probe length L [mm]	45

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...100

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Repeatability [cm/s]	1...5
Note on repeatability	for water 5...100 cm/s; 25 °C Factory setting
Temperature drift [cm/s x 1/K]	0.1;(for water 5...100 cm/s; 10...70 °C)
Temperature gradient [K/min]	300
Switch point accuracy [cm/s]	± 2...± 10;(for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis [cm/s]	2...5;(for water 5...100 cm/s; 25 °C; Factory setting)

Response times

Response time [s]	1...2;(for a temperature gradient: 1 K/min)

Response time [s]	1...10

Software / programming

Adjustment of the switch point	pushbutton

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...100
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (55...2000 Hz)
MTTF [years]	298
UL approval	UL Approval no. I02X

Weight [g]	244
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	Hastelloy C-4 (2.4610); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Displays / operating elements

Display	function 10 x LED, three-colour

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SI0553-01 — 13.04.2023 —
