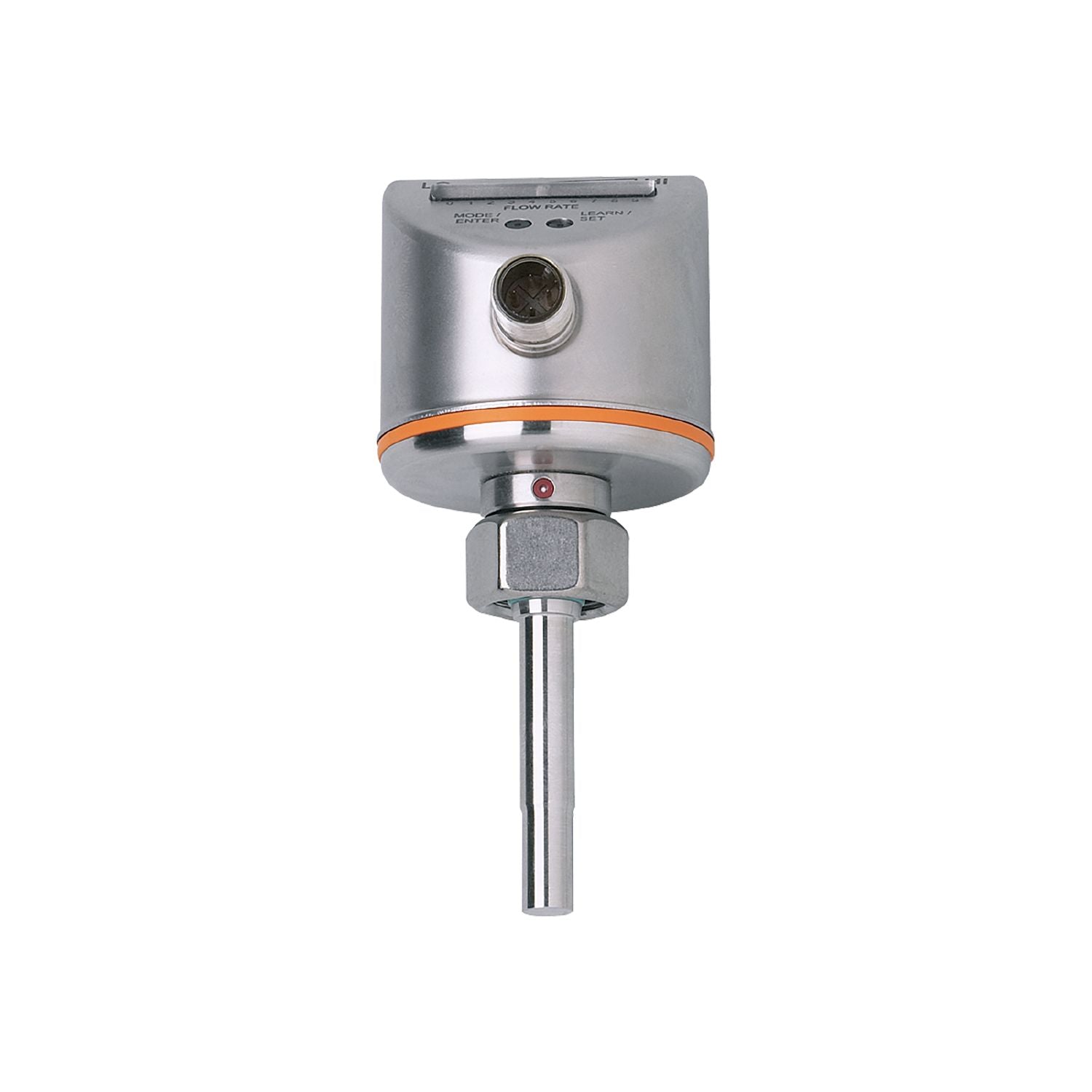

IFM SI0555 - Flow monitor SID10ABBFPKG/US-100

Reliable monitoring of liquids and gases in pipes.
Variable process connection using adapters.
Precise linearized analogue output.
Robust stainless steel housing for use in harsh industrial environments.
LED bar graph for indication of switch point and flow

Number of inputs and outputs	Number of digital outputs: 1
Process connection	M18 x 1,5 internal thread

Media	Liquids; Gases
Medium temperature [°C]	-25...80
Pressure rating [bar]	30

Medium temperature [°C]	-25...80

Medium temperature [°C]	-25...80

Operating voltage tolerance [%]	> -10
Operating voltage [V]	48 DC
Current consumption [mA]	< 40
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Probe length L [mm]	45

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...100

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Repeatability [cm/s]	1...5
Note on repeatability	for water 5...100 cm/s; 25 °C Factory setting
Temperature drift [cm/s x 1/K]	0.1;(for water 5...100 cm/s; 10...70 °C)
Temperature gradient [K/min]	300
Switch point accuracy [cm/s]	± 2...± 10;(for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis [cm/s]	2...5;(for water 5...100 cm/s; 25 °C; Factory setting)

Response times

Response time [s]	1...10

Response time [s]	1...10

Response time [s]	1...10

Software / programming

Adjustment of the switch point	pushbutton

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...100
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (55...2000 Hz)
MTTF [years]	275

Weight [g]	245.65
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Displays / operating elements

Display	function 10 x LED, three-colour

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SI0555-01 — 13.04.2023 —
