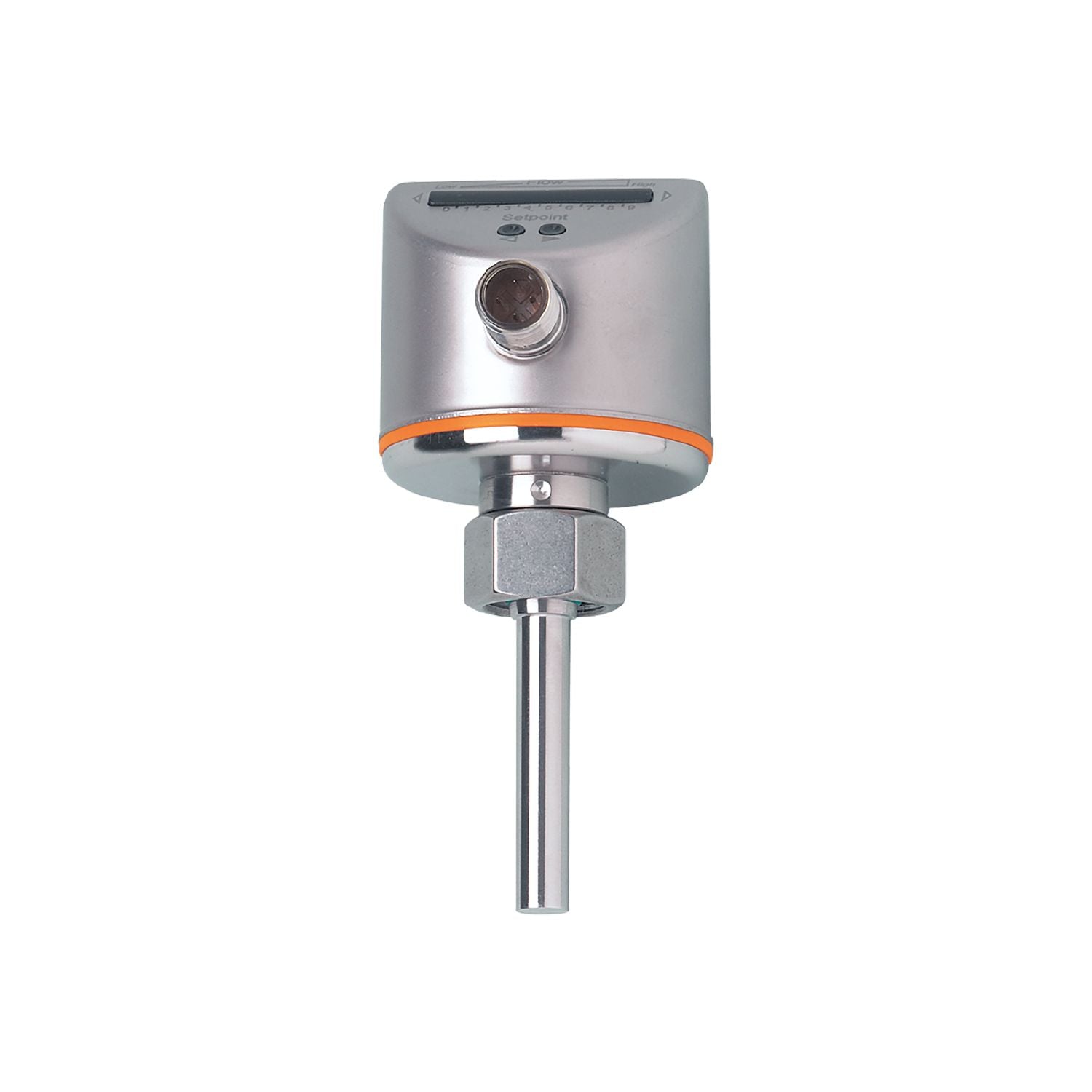

IFM SI0558 - Flow monitor SID10XDBAKOA/US-100

Reliable monitoring of liquids and gases in pipes.
Variable process connection using adapters.
Easy setting of the switch points for quick set-up.
Robust stainless steel housing for use in harsh industrial environments.
LED bar graph for indication of switch point and flow

Number of inputs and outputs	Number of digital outputs: 1
Process connection	M18 x 1,5 internal thread

Media	Liquids; Gases
Medium temperature [°C]	-25...70
Pressure rating [bar]	300

Medium temperature [°C]	-25...70

Medium temperature [°C]	-25...70

Operating voltage tolerance [%]	-15...15
Operating voltage [V]	< 24 AC / 18...36 DC;(to SELV/PELV)
Current consumption [mA]	< 80
Protection class	III
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Number of digital outputs	1
Output function	normally open
Contact rating	2 A, 24 V AC/DC;(to SELV/PELV)
Short-circuit protection	no
Overload protection	no

Measuring/setting range

Probe length L [mm]	45

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...100
Set point SP [cm/s]	20

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Repeatability [cm/s]	1...5
Note on repeatability	for water 5...100 cm/s; 25 °C Factory setting
Temperature drift [cm/s x 1/K]	0.1;(for water 5...100 cm/s; 10...70 °C)
Temperature gradient [K/min]	300
Switch point accuracy [cm/s]	± 2...± 10;(for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis [cm/s]	2...5;(for water 5...100 cm/s; 25 °C; Factory setting)

Response times

Response time [s]	1...2;(for a temperature gradient: 1 K/min)

Response time [s]	1...10

Software / programming

Adjustment of the switch point	pushbutton

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...100
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 60947-5-9
Shock resistance	DIN EN 60068-2-27 20 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 5 g (55...2000 Hz)
MTTF [years]	351

Weight [g]	230.5
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Displays / operating elements

Display	function 10 x LED, three-colour

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SI0558-00 — 13.04.2023 —
