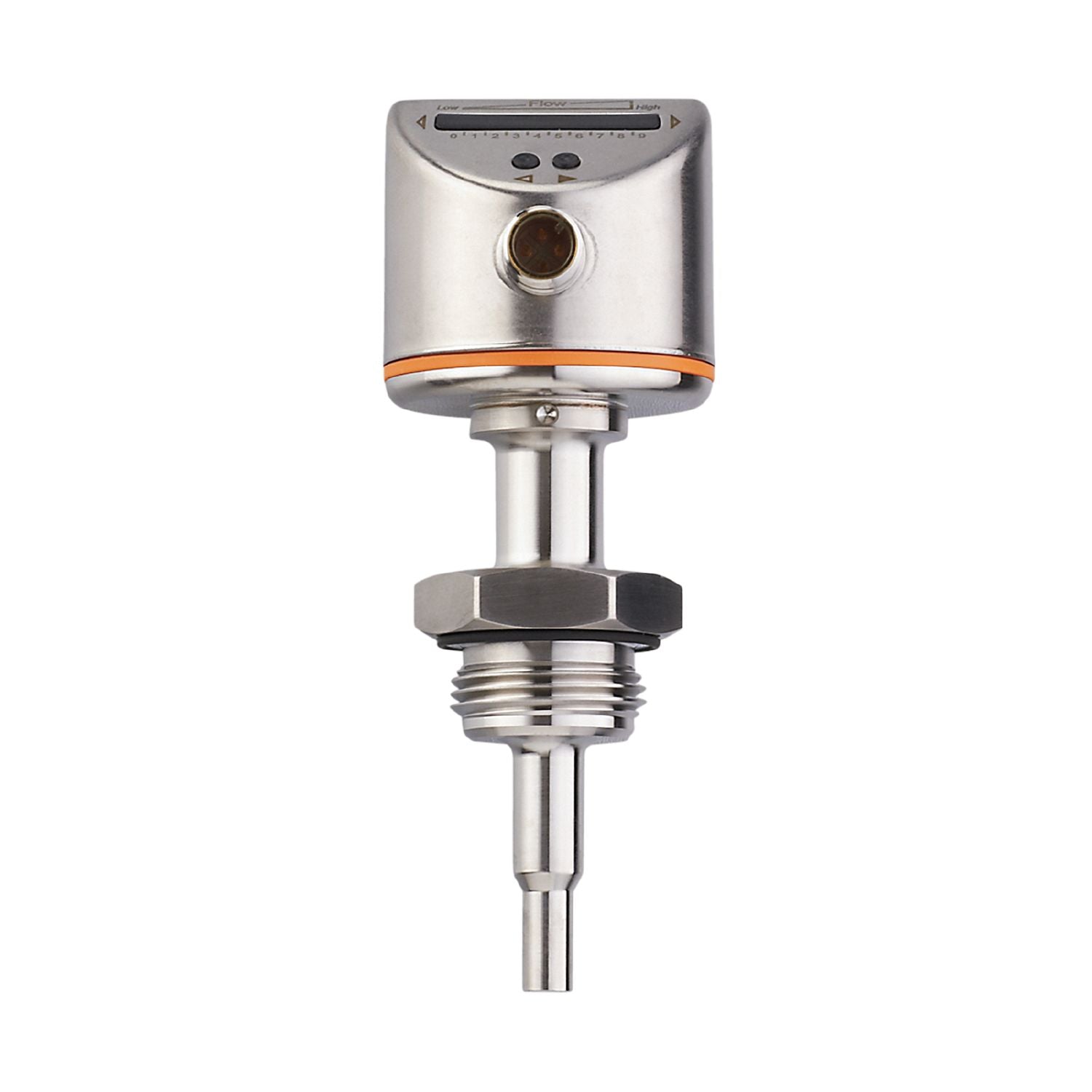

IFM SI6200 - Flow monitor SIS30ABBFPKG/US-100-IPF

Hygienic design for the requirements of the food and beverage industry.
Suitable for SIP processes up to 140 °C.
LED bar graph for indication of switch point and flow.
Extensive range of process adapters in the accessories.
Wetted parts made of stainless steel

Number of inputs and outputs	Number of digital outputs: 1
Process connection	Aseptoflex

Special feature	Gold-plated contacts
Application	hygienic systems
Medium temperature [°C]	-25...95;(for SIP process: ...140 °C)
Pressure rating [bar]	30

Operating voltage [V]	19...36 DC
Current consumption [mA]	< 60
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Probe length L [mm]	38

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...100

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Repeatability [cm/s]	1...5
Note on repeatability	for water 5...100 cm/s; 25 °C Factory setting
Temperature drift [cm/s x 1/K]	0.1;(for water 5...100 cm/s; 10...70 °C)
Temperature gradient [K/min]	300
Switch point accuracy [cm/s]	± 2...± 10;(for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis [cm/s]	2...5;(for water 5...100 cm/s; 25 °C; Factory setting)

Response times

Response time [s]	1...10

Software / programming

Adjustment of the switch point	pushbutton

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 10 g (55...2000 Hz)
MTTF [years]	298

Weight [g]	403.5
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; O-ring: FKM
Materials (wetted parts)	stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4
Process connection	Aseptoflex

Displays / operating elements

Display	function 10 x LED, three-colour

Notes	Please do not use for new projects.; no more adapters available as accessories
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
