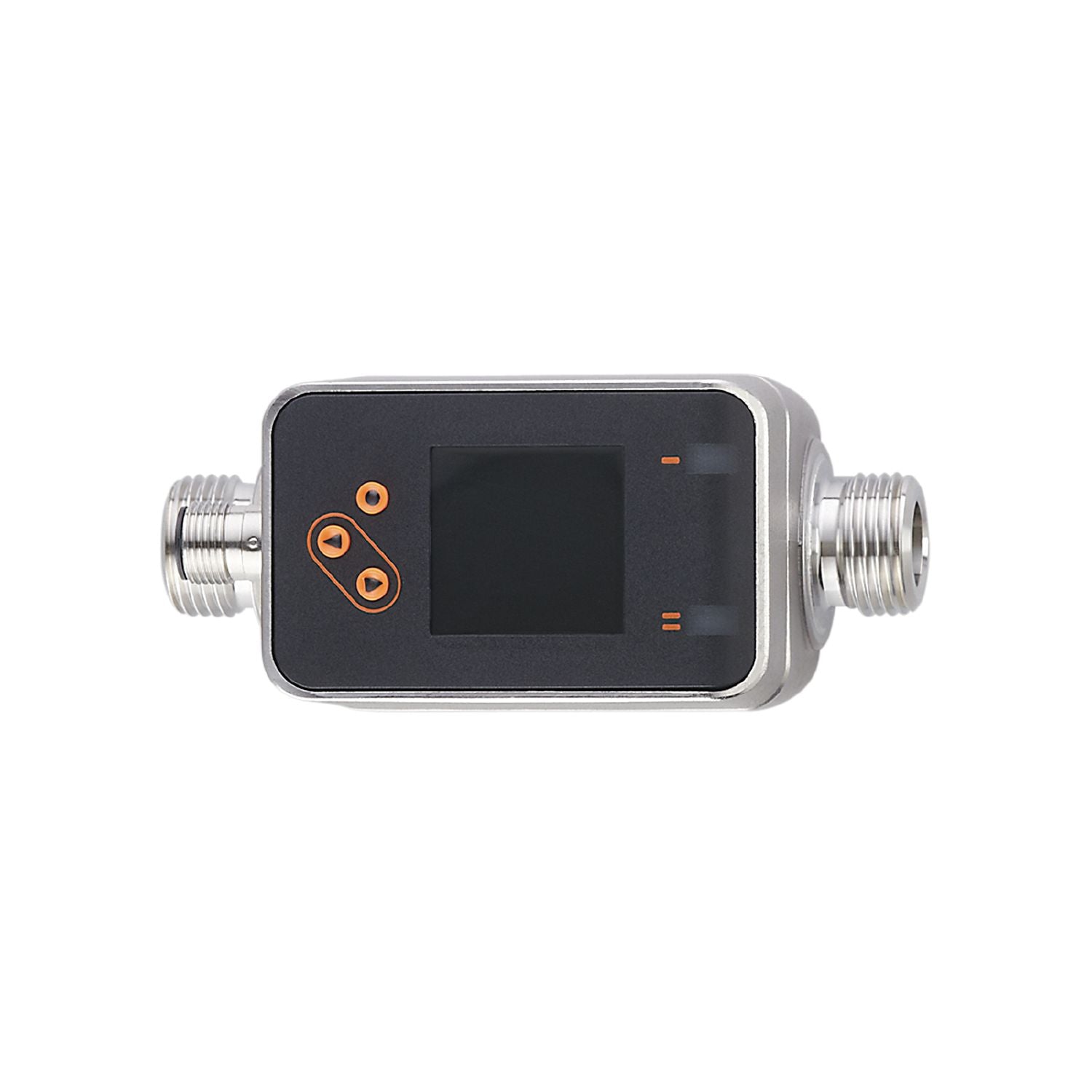

IFM SM6020 - Magnetic-inductive flow meter SMR12XGXFRKG/US-100

Precise measurement of flow, consumption and medium temperature.
High accuracy, repeatability and measurement dynamics.
With switching output, analogue output and pulse output.
Clearly readable colour display with red/green colour change.
No inlet and output pipe lengths required

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	0.05...35 l/min 0.003...2.1 m³/h 0.6...555 gph 0.01...9.25 gpm
Process connection	G 1/2 DN15 flat seal

Special feature	Gold-plated contacts
Media	conductive liquids; water; hydrous media
Note on media	conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C]	-20...90
Pressure rating [bar]	16
Pressure rating [MPa]	1.6

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 80
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputs	counter reset

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; pulse signal; IO-Link; frequency signal;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Pulse output	flow rate meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0.05...35 l/min 0.003...2.1 m³/h 0.6...555 gph 0.01...9.25 gpm
Display range	-42...42 l/min -2.5...2.5 m³/h -666...666 gph -11.1...11.1 gpm
Resolution	0.02 l/min 0.002 m³/h 0.6 gph 0.01 gpm
Set point SP	0.25...35 l/min 0.015...2.1 m³/h 4.2...555 gph 0.07...9.25 gpm
Reset point rP	0...34.8 l/min 0...2.08 m³/h 1.2...552 gph 0.02...9.2 gpm
Analogue start point ASP	0...28 l/min 0...1.7 m³/h 0...666 gph 0...7.4 gpm
Analogue end point AEP	7...35 l/min 0.42...2.1 m³/h 111...555 gph 1.85...9.25 gpm
Low flow cut-off LFC	0.05...1.75 l/min 0.003...0.1 m³/h 0.6...27.6 gph 0.01...0.46 gpm
Frequency end point, FEP	7...35 l/min 0.42...2.1 m³/h 111.6...555 gph 1.86...9.25 gpm
Frequency at the end point FRP [Hz]	1...10000

Pulse length [s]	0.001...2
Pulse value	0.001...99990000 I

Measuring range [°C]	-20...90
Display range [°C]	-42...112
Resolution [°C]	0.1
Set point SP [°C]	-19.6...90
Reset point rP [°C]	-20...89.6
Analogue start point [°C]	-20...68
Analogue end point [°C]	2...90
In steps of [°C]	0.1

Accuracy / deviations

Accuracy (in the measuring range)	± (0,8 % MW + 0,2 % MEW)
Repeatability	± 0,2 % MEW

Accuracy [K]	± 2,5 (Q > 5 % MEW)

Response times

Start-up delay [s]	0...50
Response time [s]	< 0.25;(dAP = 0, T09)
Damping process value dAP [s]	0...5

Response time [s]	15;(Q > 10 % MEW, T09)

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; frequency output; current/pulse output; start-up delay; display can be deactivated; Display unit

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	3
Process data binary	2
Min. process cycle time [ms]	6
Supported DeviceIDs	Type of operation DeviceID default 949

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 60947-5-9
CPA approval	model number 005MI accuracy class - maximum allowable error ± 1,0 % FS Q (min) 0,003 m³/h Q (t) - Q (max) 2,1 m³/h
Shock resistance	DIN IEC 68-2-27 20 g (11 ms)
Vibration resistance	DIN IEC 68-2-6: 5 g (10...2000 Hz)
MTTF [years]	114
UL approval	UL Approval no. I014 File number UL E174189
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	717.2
Materials	stainless steel (1.4408/316); stainless steel (1.4404 / 316L); PC; PBT+PC-GF30
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK; carbon fibre PEEK; FKM; Centellen
Process connection	G 1/2 DN15 flat seal

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Remarks	MW = measured value MEW = Final value of the measuring range
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

	Pressure loss / volumetric flow quantity
