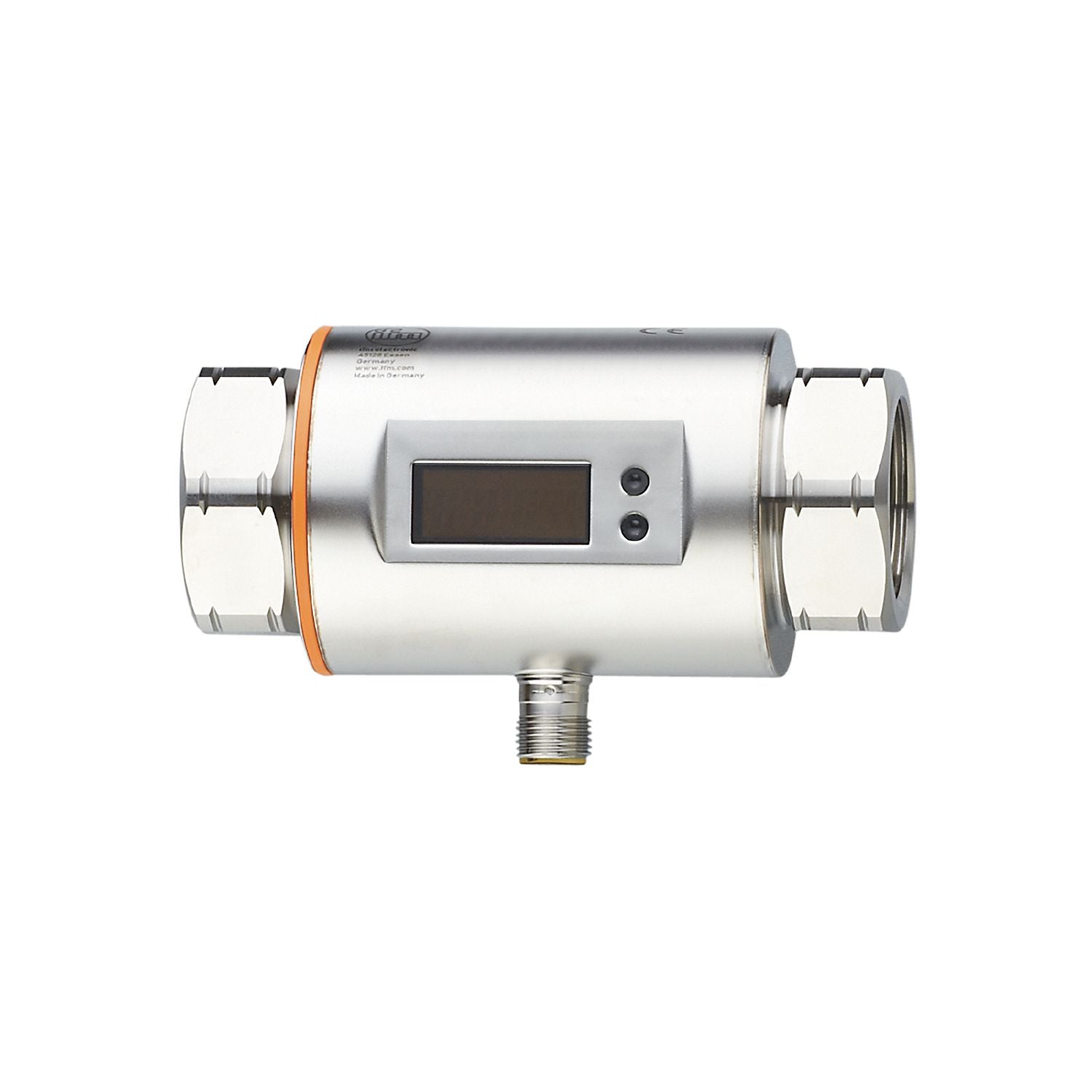

Precise measurement of flow, consumption and medium temperature. High accuracy, repeatability and measurement dynamics. With two precise analogue outputs. Clearly visible 4-digit LED display
Number of inputs and outputs
Number of analogue outputs: 2
Measuring range
0.2...100 l/min
0.1...26.4 gpm
Process connection
threaded connection Rc 1 internal thread DN25
Special feature
Gold-plated contacts
Application
for industrial applications
Media
conductive liquids; water; hydrous media
Note on media
conductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C]
-10...70
Pressure rating [bar]
16
Pressure rating [MPa]
1.6
Operating voltage [V]
20...30 DC;(to SELV/PELV)
Current consumption [mA]
120;(24 V)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
5
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 2
Outputs
Total number of outputs
2
Output signal
analogue signal
Number of analogue outputs
2
Analogue current output [mA]
4...20; (scalable)
Max. load [Ω]
500
Overload protection
yes
Measuring/setting range
Measuring range
0.2...100 l/min
0.1...26.4 gpm
Display range
-120...120 l/min
-31.7...31.7 gpm
Resolution
0.1 l/min
0.05 gpm
Analogue start point ASP
0...80 l/min
0...21.1 gpm
Analogue end point AEP
20...100 l/min
5.3...26.4 gpm
In steps of
0.1 l/min
0.05 gpm
Temperature monitoring
Measuring range [°C]
-20...80
Resolution [°C]
0.2
Analogue start point [°C]
-20...60
Analogue end point [°C]
0...80
In steps of [°C]
0.2
Accuracy / deviations
Flow monitoring
Accuracy (in the measuring range)
± (2 % MW + 0,5 % MEW)
Repeatability
± 0,2 % MEW
Temperature monitoring
Accuracy [K]
± 2,5 (Q > 1 l/min)
Response times
Flow monitoring
Response time [s]
0.15;(dAP = 0, T19)
Damping process value dAP [s]
0...3
Temperature monitoring
Dynamic response T05 / T09 [s]
T09 = 20 (Q > 1 l/min)
Operating conditions
Ambient temperature [°C]
-10...60
Storage temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
EMC
DIN EN 60947-5-9
500 V withstand voltage (V DC)
CPA approval
model number
009MI
accuracy class
-
maximum allowable error
± 2,5 % FS
Q (min)
0,01 m³/h
Q (t)
-
Q (max)
6 m³/h
Shock resistance
DIN IEC 68-2-27
20 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
5 g (10...2000 Hz)
MTTF [years]
175
UL approval
UL Approval no.
I011
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
Pressure loss
dP
Pressure loss
Q
volumetric flow quantity
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SM8404-00 — 20.01.2022 —
