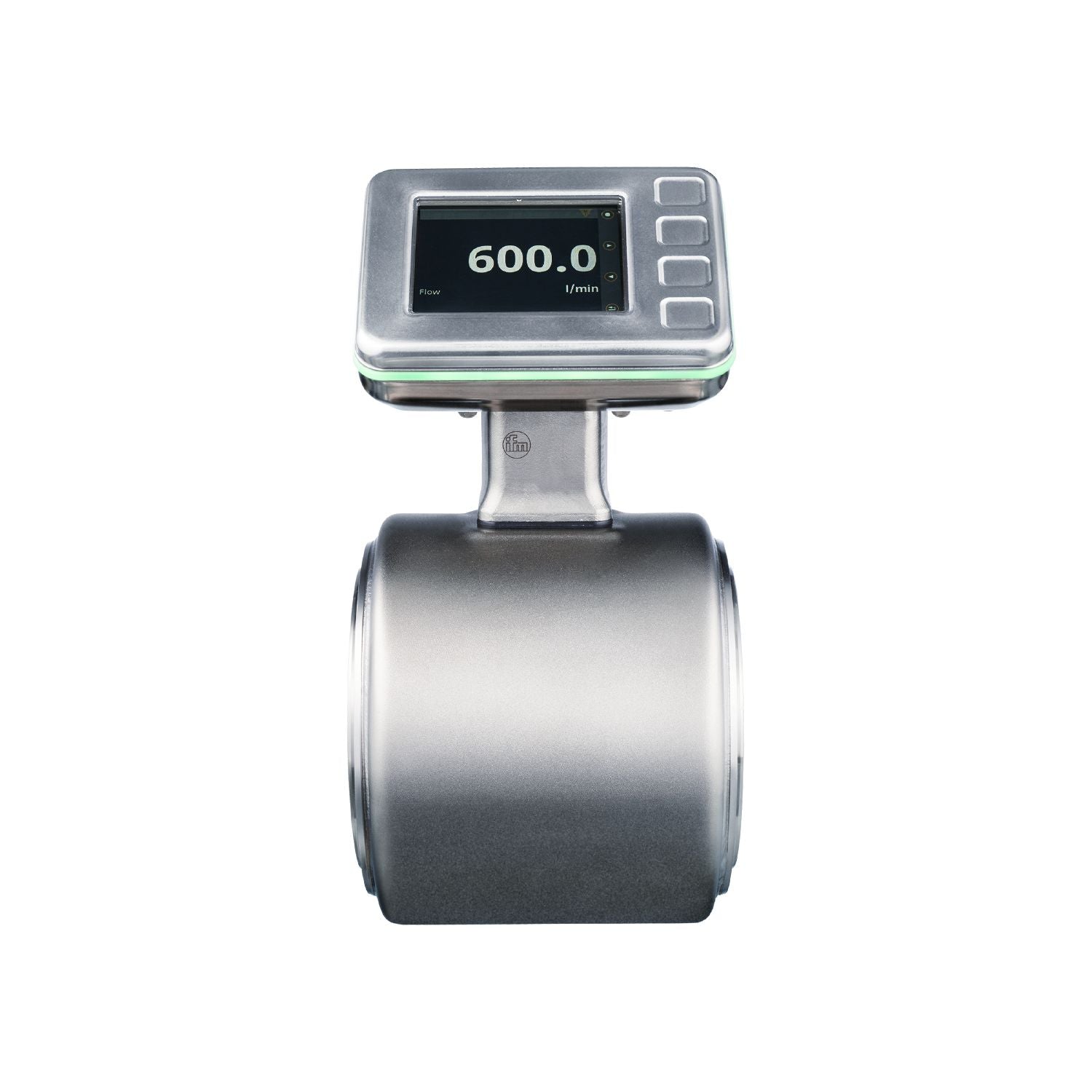

IFM SMF520 - Magnetic-inductive flow meter SMG65KGFFRKG/USD

Magnetic-inductive flow meter (SMF series) for the food and beverage industry.
Measured variables: flow rate, total volume, temperature, conductivity and fluid detection.
Easy to set up thanks to app-based menu, guided installation and hygienic pushbuttons.
Reduced cabling by combining supply voltage and output signals via an M12 connection.
Housing design increases shock and vibration resistance

Measuring range	20...2000 l/min 1200...120000 l/h 0.1...10 m/s 1.2...120 m³/h
Nominal diameter	DN65 (2 1/2“)
Process connection	ifm-specific device flange

Special feature	Gold-plated contacts
Application	food and beverage industry
Media	conductive liquids; water; hydrous media
Note on media	food products such as beer, milk, fruit juices, soft drinks, ketchup, yoghurt, yoghurt toppings, ice cream conductivity: ≥ 5 µS/cm
Medium temperature [°C]	-20...150
Min. bursting pressure	37.5 bar 3.75 MPa
Pressure rating	25 bar 2.5 MPa

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 400
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 5
Measuring principle	magnetic-inductive

Inputs / outputs

Total number of inputs and outputs	2

Inputs

Inputs	OUT2 external totaliser reset

Outputs

Total number of outputs	2
Output signal	OUT1 pulse signal; totaliser switching signal; diagnostic signal; IO-Link OUT2 analogue signal; pulse signal; totaliser switching signal; diagnostic signal
Electrical design	PNP/NPN
Pulse output	flow rate meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Number of analogue outputs	1
Analogue current output [mA]	4...20; (skalierbar)
Max. load [Ω]	500
Resolution of analogue output	0.38 µA

Number of digital outputs	2
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	0...10000

Measuring/setting range

Measuring range	20...2000 l/min 1200...120000 l/h 0.1...10 m/s 1.2...120 m³/h
Display range	-2400...2400 l/min -144000...144000 l/h -12...12 m/s -144...144 m³/h
Resolution	0.1 l/min 100 l/h 0.01 m/s 0.01 m³/h
Note on factory setting	0...30,0 m³/h
Analogue start point ASP	0...1600 l/min 0...96000 l/h 0...8.05 m/s 0...96 m³/h
Analogue end point AEP	400...2000 l/min 24000...120000 l/h 2...10.05 m/s 24...120 m³/h
Low flow cut-off LFC	0...1600 l/min 0...96000 l/h 0...8.05 m/s 0...96 m³/h
Pulse length [s]	0.002...2
Pulse value	0.001...99990000 I

Measuring range [°C]	-20...150
Display range [°C]	-20...150
Resolution [°C]	0.01
Analogue start point [°C]	-20...116
Analogue end point [°C]	14...150

Measuring range [µS/cm]	100...100000
Display range [µS/cm]	0...100000
Resolution [µS/cm]	1
Analogue start point [µS/cm]	0...80000
Analogue end point [µS/cm]	20000...100000

Accuracy / deviations

Accuracy (in the measuring range)	with optional factory calibration (available from 2025) ± (0,2 % MW + 2 mm/s) standard ± (0,5 % MW + 1,5 mm/s)
Repeatability	0,1% MW

Accuracy [K]	± 1
Repeatability [K]	± 0,5

Accuracy (in the measuring range)	in the range of 100...20000 µS/cm ±10% MW in the range of 20000...100000 µS/cm ±20% MW
Repeatability	± 5% MW

Response times

Response time [s]	< 0.3
Damping process value dAP [s]	0...5

Response time [s]	< 3;(flow velocity: ≥ 0,5m/s)

Response time [s]	< 2

Software / programming

Diagnostic functions	direction of flow detection; liquid detection

Interfaces

Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1.3
SDCI standard	IEC 61131-9
Profiles	Function class Designation 0x4000 Identification and Diagnosis 0x001B Measuring and Switching Sensor, floating point, 4 channel
SIO mode	yes
Required master port type	A
Process data analogue	6
Process data binary	8
Min. process cycle time [ms]	1.9
IO-Link process data (cyclical)	function bit length totaliser 32 flow 32 temperature 32 conductivity 32 status 4 binary switching information 8
IO-Link functions (acyclical)	direction of flow detection; totaliser; Speicher; operating hours counter; internal temperature; simulation function

Operating conditions

Ambient temperature [°C]	-20...65
Storage temperature [°C]	-20...80
Protection	IP 67; IP 69

Tests / approvals

EMC	DIN 61326-1
Shock resistance	DIN IEC 68-2-27 20 g (18ms)
Vibration resistance	DIN IEC 68-2-6 5 g (10...2000Hz)
MTTF [years]	81
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	0.001
Inlet pipe length	5 x DN
Outlet pipe length	2 x DN
Materials	housing: stainless steel (1.4404 / 316L); flange: stainless steel (1.4301 / 304); electronics fixture: stainless steel (1.4301 / 304); electronics: stainless steel (1.4404 / 316L); Display: PPSU; Display-Sealing: FKM; LED ring: PP
Materials (wetted parts)	Pipe section: PFA; electrodes: stainless steel (1.4435 / 316L)
Nominal diameter	DN65 (2 1/2“)
Process connection	ifm-specific device flange
Surface characteristics Ra/Rz of the wetted parts	≤ 0.4 μm

Displays / operating elements

Display	process value full graphics TFT display, multi-colour 3,5" 128 x 128 Pixel display layouts: 4 display rotation: 4 x 90° operating status LED ring, three-colour
Display unit	l/min; l/h; hl/min; hl/h; m³/min; m³/h; m/s; °C; μS/cm; S/m; ms/cm
Factory setting	m³/h; °C; μS/cm
Language	German; English; Spanish; French; Italian; Japanese; Korean; Portuguese; Chinese
Operating elements	4 capacitive pushbuttons

Remarks	MW = measured value MEW = Final value of the measuring range pulse and totaliser signal are only available for one of the two outputs reference conditions : water , 15...35 °C, inlet pipe length: 10 x DN, outlet pipe length: 5 x DN
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
