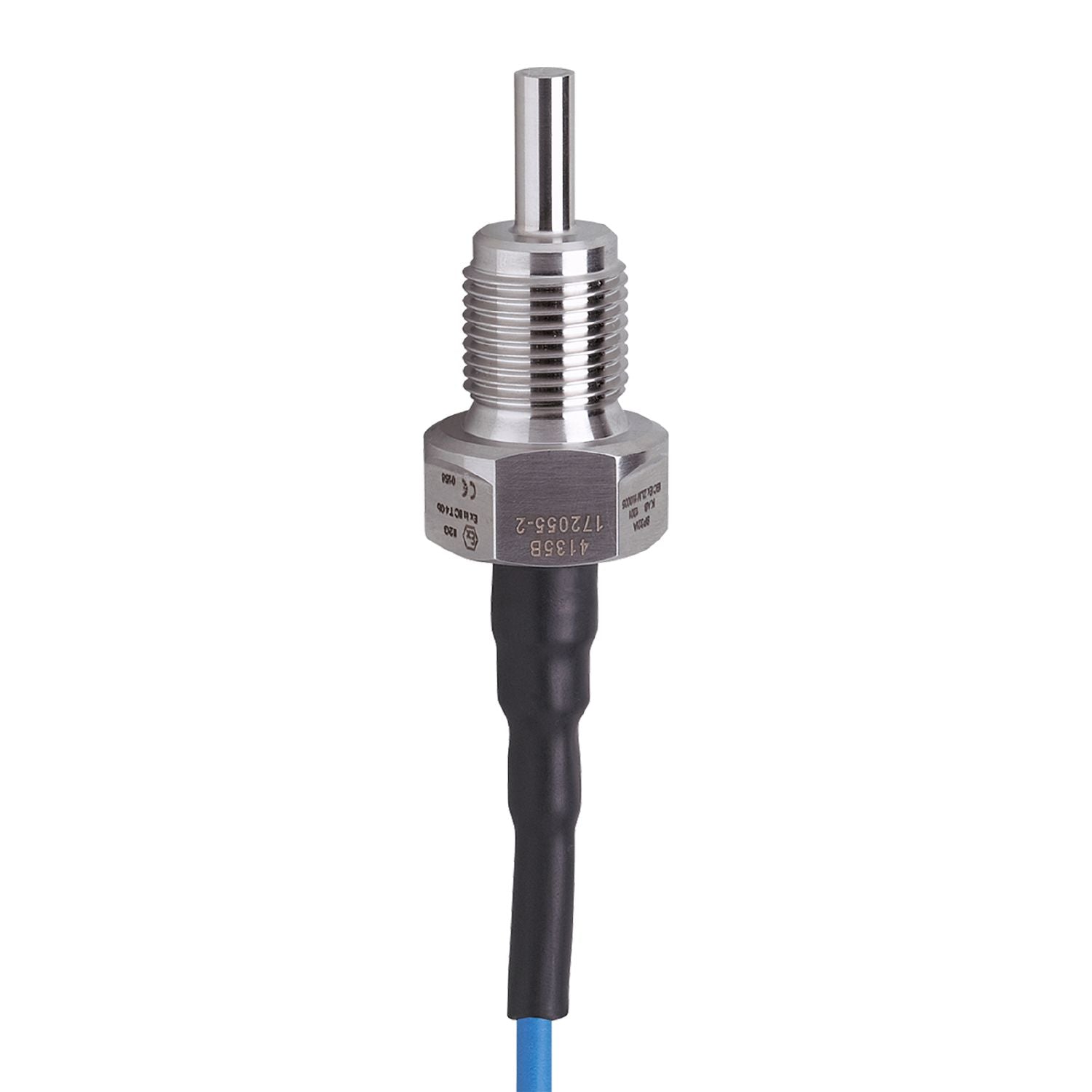

For applications in hazardous areas. Reliable monitoring of liquids and gases in pipes. For connection to an evaluation unit. Robust design for use in harsh industrial environments. Simple process connection via adapter
Process connection
G 1/2 external thread
Media
Liquids; Gases
Medium temperature [°C]
-20...70
Pressure rating [bar]
30
Liquids
Medium temperature [°C]
-20...70
Gases
Medium temperature [°C]
-20...70
Connection to control monitor
VS4000
Measuring/setting range
Liquids
Setting range [cm/s]
3...300
Greatest sensitivity [cm/s]
3...100
Gases
Setting range [cm/s]
100...15000
Greatest sensitivity [cm/s]
100...7500
Accuracy / deviations
Temperature gradient [K/min]
30
Response times
Response time [s]
1...10
Liquids
Response time [s]
1...10
Gases
Response time [s]
1...10
Operating conditions
Ambient temperature [°C]
-20...70
Protection
IP 65; IP 67
Tests / approvals
Approval
CSANe 21ATEX2239; IECEx CSA 21.0045
ATEX marking
II 2G Ex ia IIC T4 Gb
Shock resistance
DIN IEC 68-2-27
40 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
10 g (55...2000 Hz)
MTTF [years]
8519
Weight [g]
367.5
Housing
threaded type
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L)
Process connection
G 1/2 external thread
Remarks
In principle, the type test according to 2014/34/EU (ATEX) only takes atmospheric conditions into account (0.8...1.1 bar).
For pressures outside this range use must be assessed and approved by the user.
Adhere to the operating instructions and the type test certificate.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 6 m, TPE-S; Maximum cable length: 100 m; (4 x 0.5 mm²); 4 x 0.34 mm²
