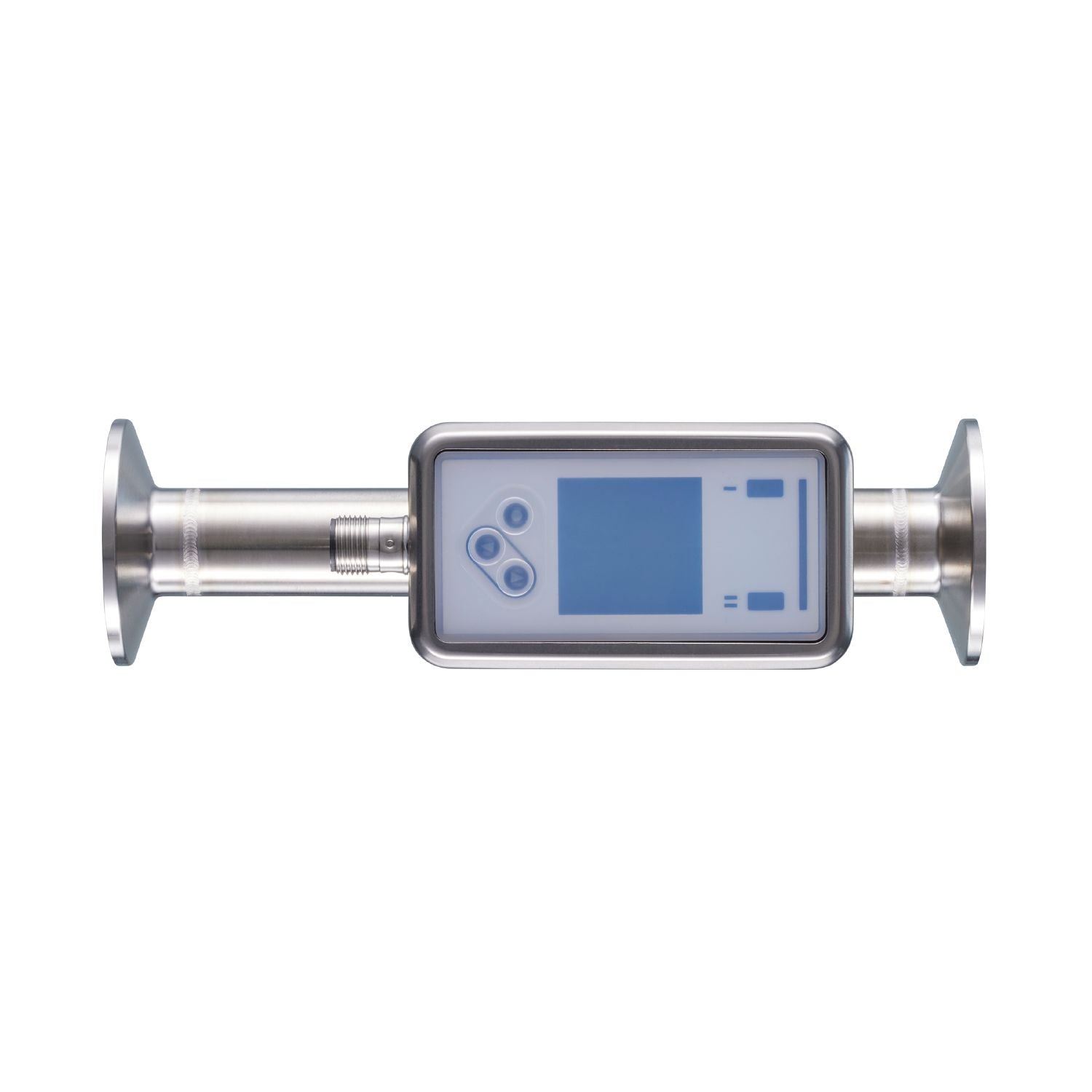

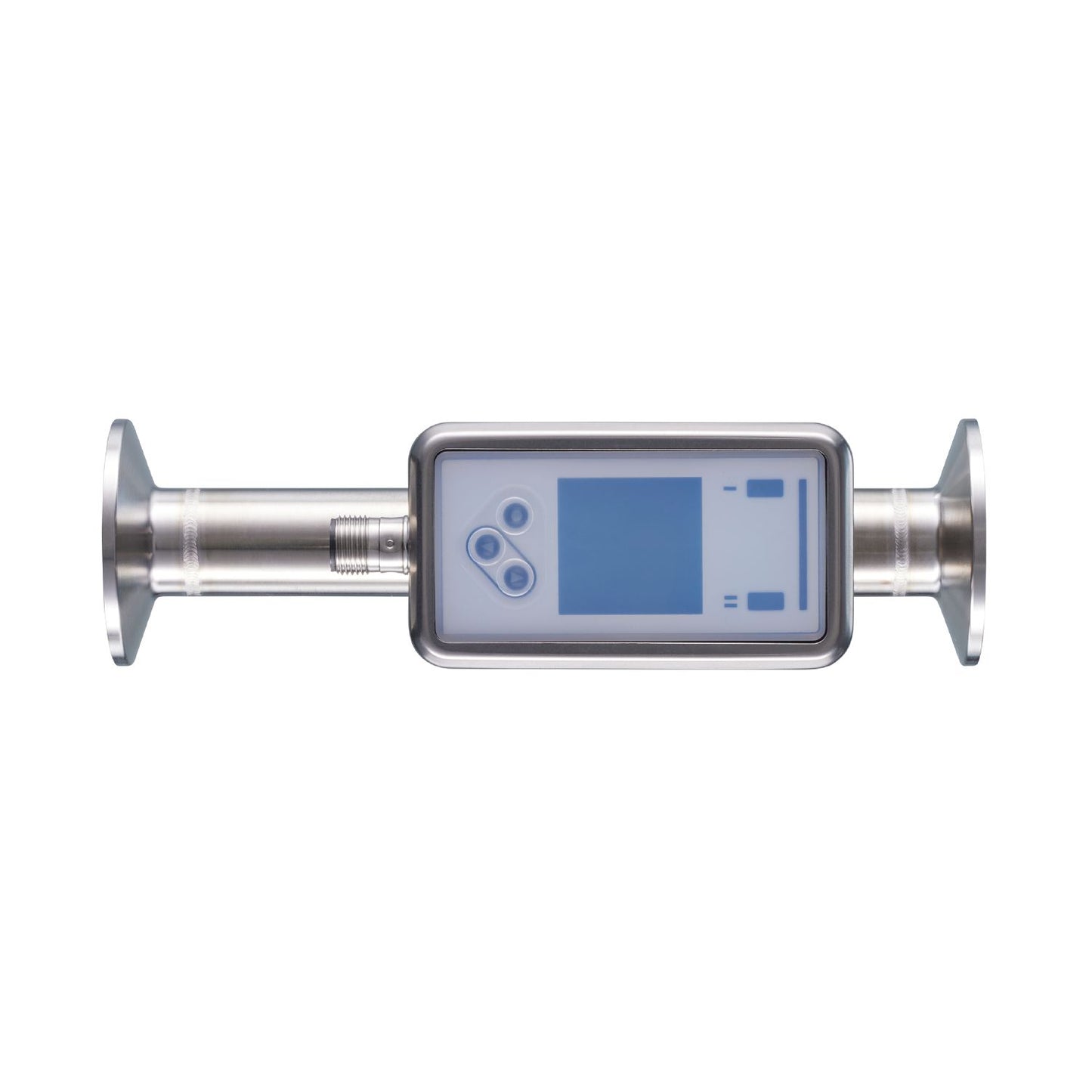

IFM SUH201 - Ultrasonic flow meter SUC25IJBFRKG/US

Accurate flow measurement of ultrapure water and water.
A robust, component-free measuring pipe made of stainless steel offers high media resistance and permanent ingress resistance.
The highly accurate inline measurement process eliminates any influence of varying wall thicknesses and pipe materials.
Operating status LED signals the sensor status and allows conclusions about process quality

Measuring range	1...240 l/min 0.06...14.4 m³/h 16...3804 gph 0.26...63.4 gpm
Process connection	Clamp 1" DIN 32676 series C

Special feature	Gold-plated contacts
Media	ultra-pure water; water; hydrous media
Note on media	hydrous media: for media with >10 % additives, the repeatability is the only available value
Medium temperature	-20...100 °C -4...212 °F
Min. bursting pressure	75 bar 7.5 MPa
Pressure rating	25 bar 2.5 MPa
Vacuum resistance [mbar]	-1000

Operating voltage [V]	18...32 DC;(to SELV/PELV)
Current consumption [mA]	< 75
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	5
Measuring principle	ultrasonic

Inputs / outputs

Total number of inputs and outputs	2

Inputs

Inputs	OUT2 counter reset

Outputs

Total number of outputs	2
Output signal	OUT1 switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link OUT2 switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal
Electrical design	PNP/NPN
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500

Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	0...10000

Measuring/setting range

Measuring range	1...240 l/min 0.06...14.4 m³/h 16...3804 gph 0.26...63.4 gpm
Display range	-288...288 l/min -17.28...17.28 m³/h -4565...4565 gph -76.08...76.08 gpm
Resolution	0.1 l/min 0.001 m³/h 1 gph 0.02 gpm
Set point SP	2.3...240 l/min 0.139...14.4 m³/h 37...3804 gph 0.61...63.4 gpm
Reset point rP	1.1...238.8 l/min 0.064...14.325 m³/h 17...3784 gph 0.28...63.07 gpm
Analogue start point ASP	-240...192 l/min -14.4...11.522 m³/h -3804...3044 gph -63.4...50.73 gpm
Analogue end point AEP	-191.9...240 l/min -11.511...14.4 m³/h -3041...3804 gph -50.68...63.4 gpm
Low flow cut-off LFC	1...12 l/min 0.06...0.72 m³/h 16...190 gph 0.26...3.17 gpm
Frequency end point, FEP	48.1...240 l/min 2.889...14.4 m³/h 763...3804 gph 12.72...63.4 gpm
Frequency at the end point FRP [Hz]	1...10000

Pulse length [s]	0.002...2
Pulse value	0.02...99990000 l; 0.026...26414563.515 gal

Measuring range	-20...100 °C -4...212 °F
Display range	-44...124 °C -47.2...255.2 °F
Resolution	0.1 °C 0.1 °F
Set point SP	-19.6...100 °C -3.2...212 °F
Reset point rP	-20...99.6 °C -4...211.2 °F
Analogue start point	-20...76 °C -4...168.8 °F
Analogue end point	4...100 °C 39.2...212 °F
Frequency start point, FSP	-20...76 °C 4...168.8 °F
Frequency end point, FEP	4...100 °C 39.2...212 °F
Frequency at the end point FRP [Hz]	1...10000

Accuracy / deviations

Accuracy (in the measuring range)	± (1,0 % MW + 0,5 % MEW)
Repeatability	± 0,2 % MEW

Accuracy [K]	± 2,5 (Q > 5 % MEW)
Temperature coefficient [% of the span / 10 K]	0,2

Response times

Response time [s]	< 0.25;(dAP = 0, T09)
Damping process value dAP [s]	0...5

Dynamic response T05 / T09 [s]	5,7 / 86

Software / programming

Diagnostic functions	direction of flow detection; signal quality

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1.3
SDCI standard	IEC 61131-9: 2013-07
Profiles	Function class Designation 0x0030 BLOB transfer 0x4000 Identification and Diagnosis
Required master port type	A
Process data analogue	3
Process data binary	2
Min. process cycle time [ms]	9.6
IO-Link process data (cyclical)	function bit length totaliser 32 Flow monitoring 32 Temperature monitoring 32 status 4 Output 1 1 Output 2 1
Supported DeviceIDs	Type of operation DeviceID default 1463

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 69K

Tests / approvals

EMC	DIN 61326-1:2021
Shock resistance	DIN IEC 68-2-27 20 g (11ms)
Vibration resistance	DIN IEC 68-2-6 5 g (10...2000Hz)
MTTF [years]	160
Pressure Equipment Directive	can be used for group 2 fluids; group 1 fluids on request

Weight [g]	639.4
Inlet pipe length	5 x DN
Outlet pipe length	1 x DN
Materials	housing: stainless steel (1.4404 / 316L); Display: PFA; Sealing Display: FKM; connector: POKAN
Materials (wetted parts)	Pipe section: stainless steel (1.4404 / 316L)
Nominal diameter	DN25
Process connection	Clamp 1" DIN 32676 series C
Process connection suitable for pipe standard	1" / Ø 25,4 mm x 1,65 mm (DIN 11866 series C; ASME BPE)
Surface characteristics Ra/Rz of the wetted parts	≤ 0.8 µm / 32 µin

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels Switching function 2 x LED, yellow diagnosis 1 x LED, three-colour

Remarks	MW = measured value MEW = Final value of the measuring range pulse and totaliser signal are only available for one of the two outputs the accuracy indications are adhered to over the entire application area
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

Note on pressure loss

derating ambient temperature	1 Ambient temperature 2 Medium temperature

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SUH201-00 — 13.11.2023 —
