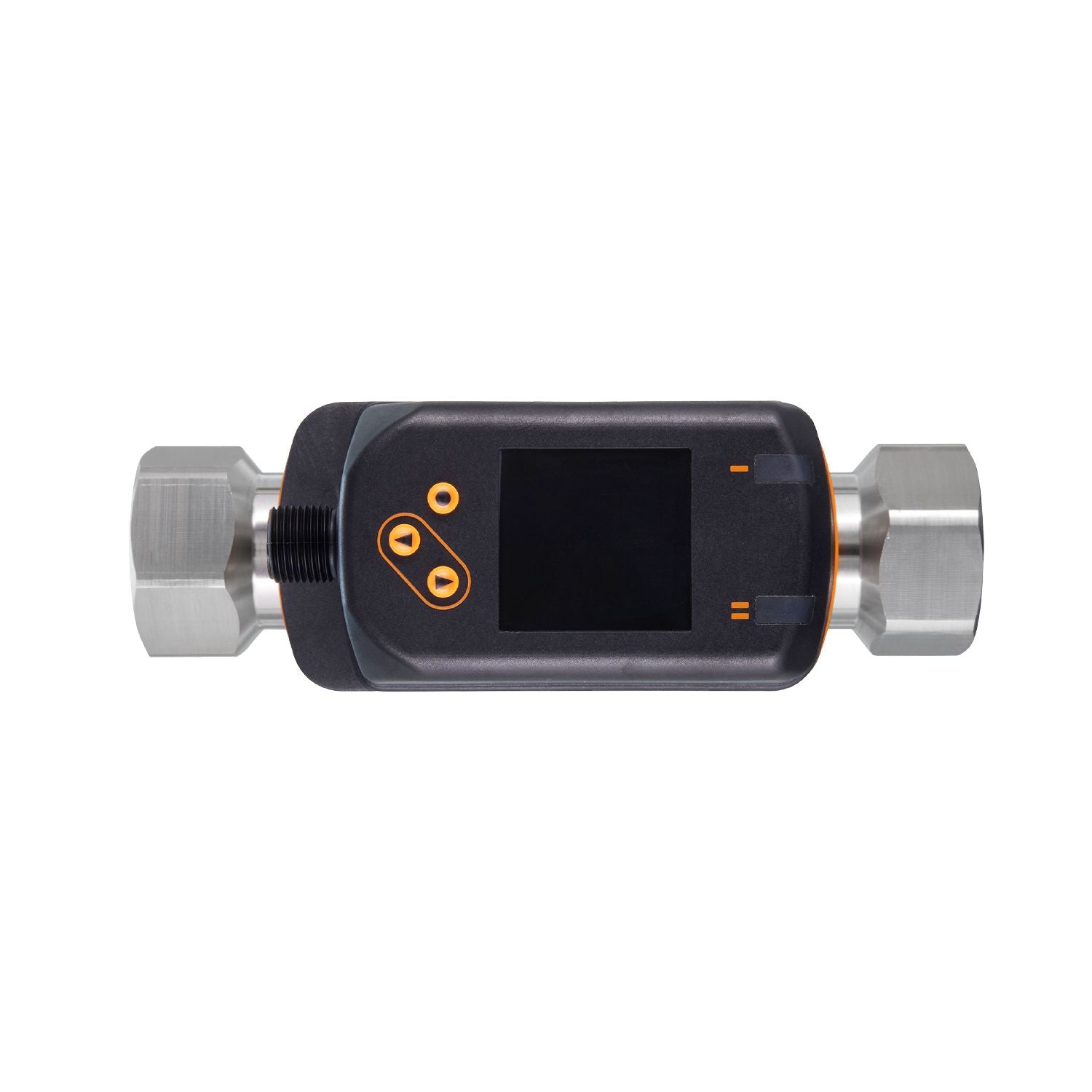

Reliable detection of flow and medium temperature. Precise linearized analogue output. Display can be rotated for optimum alignment. Clearly readable colour display with red/green colour change. Suitable for water, deionised water and cooling water
Number of inputs and outputs
Number of analogue outputs: 2
Measuring range
80...1585 gph
1.3...26.4 gpm
Process connection
threaded connection 3/4" NPT DN20
Special feature
Gold-plated contacts
Application
for industrial applications
Media
water; glycol solutions; coolants
Medium temperature [°F]
14...194
Pressure rating [bar]
12
Pressure rating [psi]
174
Note on pressure rating
up to 40 °C
MAWP (for applications according to CRN) [bar]
4.3
Operating voltage [V]
18...30 DC
Current consumption [mA]
< 30
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 3
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 2
Outputs
Total number of outputs
2
Output signal
analogue signal
Number of analogue outputs
2
Analogue current output [mA]
4...20
Max. load [Ω]
500
Short-circuit protection
yes
Overload protection
yes
Measuring/setting range
Measuring range
80...1585 gph
1.3...26.4 gpm
Display range
0...1900 gph
0...31.7 gpm
Resolution
5 gph
0.1 gpm
Analogue start point ASP
0...1270 gph
0...21.1 gpm
Analogue end point AEP
315...1585 gph
5.3...26.4 gpm
In steps of
5 gph
0.1 gpm
Measuring dynamics
1:20
Temperature monitoring
Measuring range [°F]
14...194
Display range [°F]
-22...230
Resolution [°F]
1
Analogue start point [°F]
14...158
Analogue end point [°F]
50...194
In steps of [°F]
1
Accuracy / deviations
Flow monitoring
Accuracy (in the measuring range)
± 2 % MEW;(water)
Repeatability
± 0,5 % MEW
Temperature monitoring
Accuracy [K]
± 1
Response times
Flow monitoring
Response time [s]
1;(dAP = 0)
Damping process value dAP [s]
0...5
Temperature monitoring
Dynamic response T05 / T09 [s]
T09 = 6
Software / programming
Parameter setting options
Damping for the analogue output dAA; Display unit
Operating conditions
Ambient temperature [°F]
32...140
Note on ambient temperature
medium temperature < 176 °F
medium temperature < 194 °F: 32...122 °F
Storage temperature [°F]
-4...176
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
5 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
with water / 10...50 Hz 1 mm
with water / 50...2000 Hz 2 g
MTTF [years]
342
UL approval
UL Approval no.
I002
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM
Tightening torque [Nm]
30
Process connection
threaded connection 3/4" NPT DN20
Remarks
MW = measured value
MEW = Final value of the measuring range
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
Pressure loss
dP
Pressure loss
Q
volumetric flow quantity
pressure rating (bar)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SV7614-00 — 02.02.2023 —
