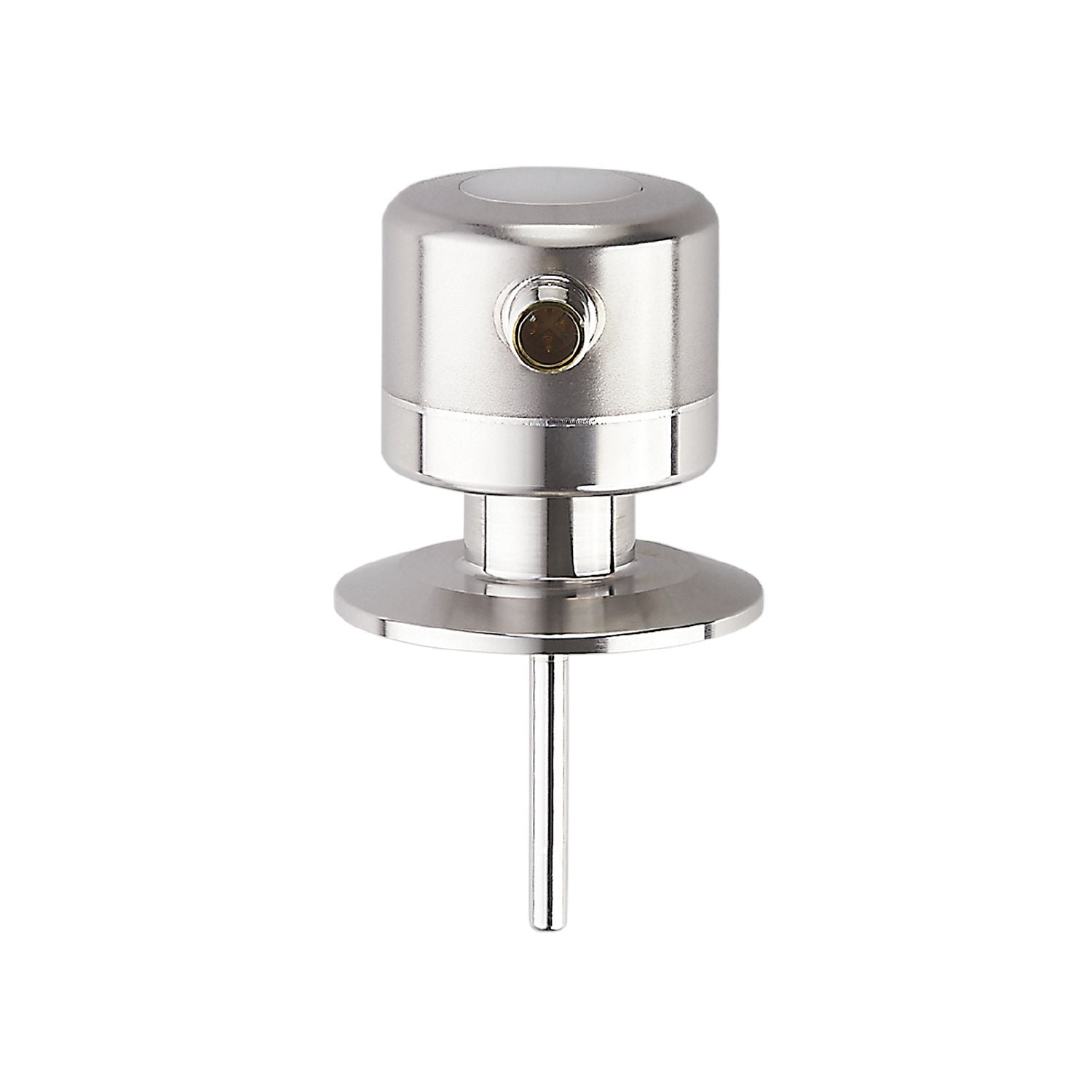

Immediate notification of deviations in accuracy. Improved quality assurance in between calibration intervals. Robust design for permanently precise measurements even in demanding environments. Transparent sensor monitoring thanks to logging of the diagnostic values. Simulation function simplifies installation
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-25...160 °C
-13...320 °F
Communication interface
IO-Link
Process connection
Clamp DN50 (2") DIN 32676 (ISO 2852)
Installation length EL [mm]
50
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000
Reference element
1 x NTC
Media
liquids and gases
Pressure rating [bar]
160
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
10;(24 V)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
6
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
analogue signal; IO-Link; calibration check status
Electrical design
PNP/NPN
Number of digital outputs
1
Output function
normally closed;(diagnostic signal)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
100
Diagnostic output
calibration check status and error diagnostics
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
(Ub - 15 V) x 50
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-25...160 °C
-13...320 °F
Note on measuring range
scalable
Factory setting
-10...150 °C / 14...302 °F
Calibration check limit [K]
0.5...3
In steps of [K]
0.05
Resolution
Resolution of analogue output [K]
0.05
Accuracy / deviations
Precision analogue output [K]
± 0,2
Precision IO-Link [K]
± 0,2
Temperature coefficient analogue output [% of the span / 10 K]
< ± 0,02;(in case of deviation from the reference condition 25 ± 5 °C)
Temperature coefficient IO-Link [% of the span / 10 K]
< ± 0,01;(in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s]
1,5 / 4
Software / programming
Parameter setting options
Display unit; scaling of the analogue output; calibration check limit; switching logic diagnostic output; simulation mode
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Digital Measuring Sensor, Common Profile, Blob Transfer
SIO mode
yes
Required master port type
A
Process data analogue
1
Process data binary
1
Min. process cycle time [ms]
4.4
IO-Link resolution temperature [K]
0.01
Supported DeviceIDs
Type of operation
DeviceID
default
1129
Operating conditions
Ambient temperature [°C]
-25...70
Note on ambient temperature
max. internal device temperature: 125 °C
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 68000-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
35 g (10...2000 Hz)
MTTF [years]
329
Note on approval
factory certificate available as download at www.factory-certificate.ifm
UL approval
UL Approval no.
K021
File number UL
E217884
Weight [g]
408.2
Dimensions [mm]
Ø 50 / L = 114.8
Materials
stainless steel (1.4404 / 316L); PEI; FKM; PFA
Materials (wetted parts)
stainless steel (1.4404 / 316L); PEEK
Process connection
Clamp DN50 (2") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts
Ra: < 0.8
Probe diameter [mm]
6
Installation length EL [mm]
50
Remarks
MS = set measuring span
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TCC911-00 — 20.12.2021 —
