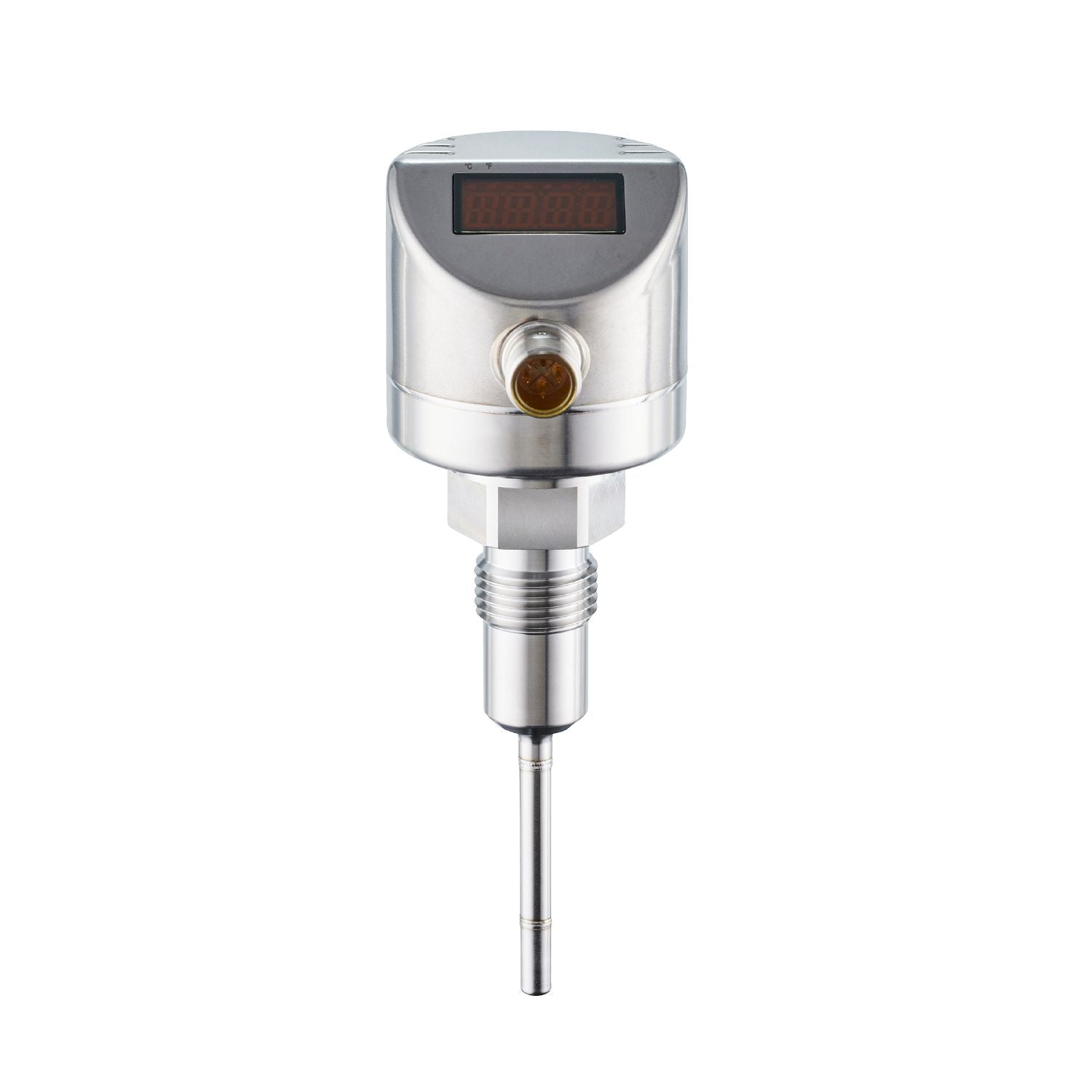

Hygienic design for the requirements of the food and beverage industry. Particularly good response dynamics and very short power-on delay time. Clearly visible 4-digit LED display. High protection and pressure rating
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range
-50...150 °C
-58...302 °F
Communication interface
IO-Link
Process connection
threaded connection G 1/2 sealing cone
Installation length EL [mm]
150
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
160
Vacuum resistance [mbar]
-1000
MAWP (for applications according to CRN) [bar]
160
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
2
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal; IO-Link;(configurable)
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
300
Short-circuit protection
yes
Overload protection
yes
Measuring/setting range
Measuring range
-50...150 °C
-58...302 °F
Factory setting
-10...150 °C
Resolution
Resolution of analogue output [K]
0.04
Resolution of display [K]
0.1
Accuracy / deviations
Precision analogue output [K]
± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]
0,1;(in case of deviation from the reference condition 25 °C)
Response times
Dynamic response T05 / T09 [s]
1 / 3
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 67; IP 68; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
10 g (10...2000 Hz)
MTTF [years]
405
Note on approval
factory certificate available as download at www.factory-certificate.ifm
UL approval
UL Approval no.
K001
Weight [g]
434.5
Materials
stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)
stainless steel (1.4404 / 316L) electropolished
Tightening torque [Nm]
30...50
Process connection
threaded connection G 1/2 sealing cone
Surface characteristics Ra/Rz of the wetted parts
Ra: < 0.8
Probe diameter [mm]
6
Installation length EL [mm]
150
Displays / operating elements
Display
7-segment LED display, 4-digit
display unit / status, °C / °F
Remarks
MS = set measuring span
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TD2541-00 — 13.04.2023 —
