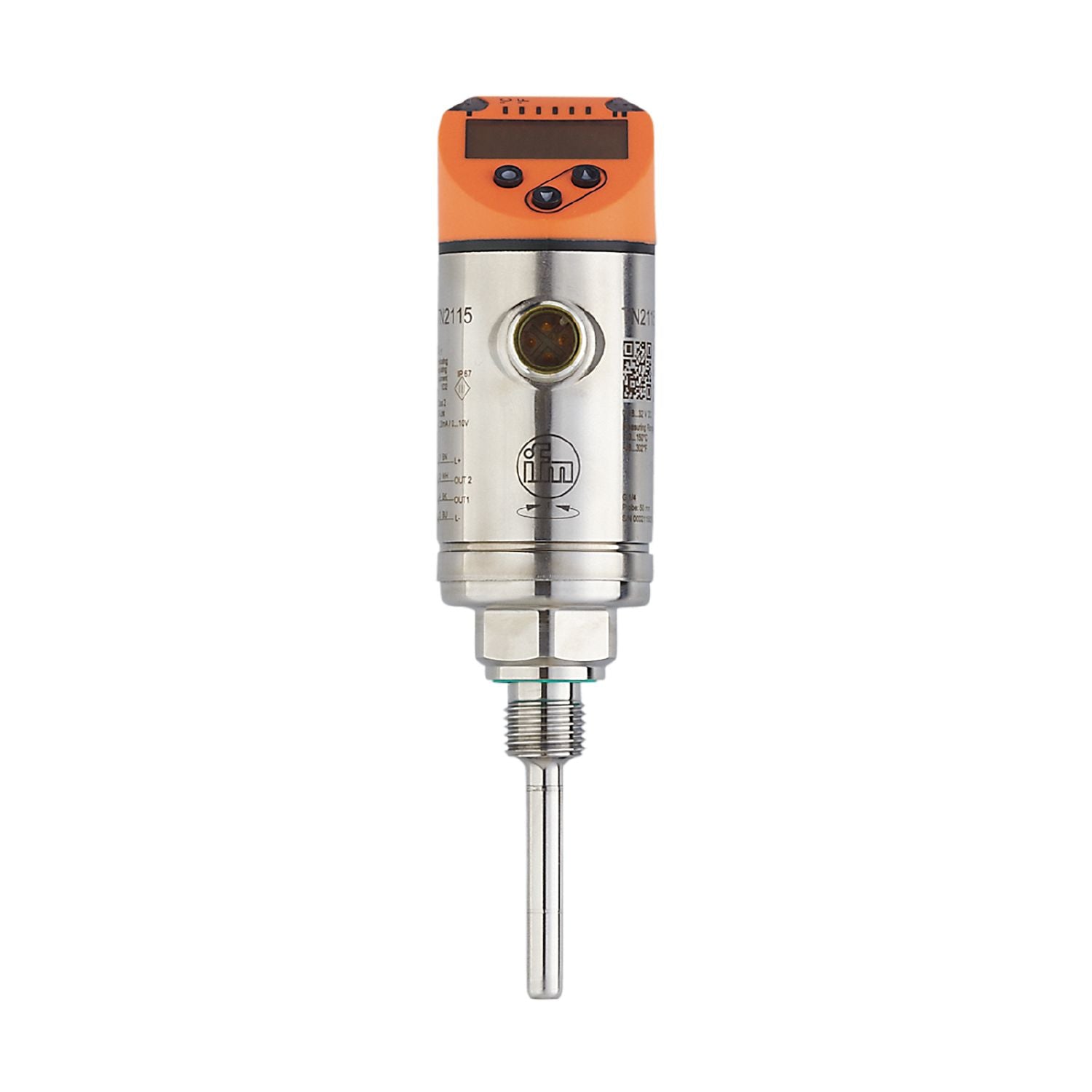

IFM TN2115 - Temperature sensor with display TN-050KLBM14-MFRKG/US/

Very large temperature evaluation range.
With switching output, analogue signal and IO-Link.
Intuitive and user-friendly 3-pushbutton control.
Red/green display for clear identification of the acceptable range.
Clearly visible LEDs for switching status indication

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-50...150 °C -58...302 °F
Communication interface	IO-Link
Process connection	threaded connection G 1/4
Installation length EL [mm]	50

Special feature	Gold-plated contacts
Measuring element	1 x Pt 1000;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	400

Operating voltage [V]	18...32 DC;("supply class 2" to cULus)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	-50...150 °C -58...302 °F
Factory setting	-50...150 °C
Set point SP	-49.8...150 °C -57.6...302 °F
Reset point rP	-50...149.8 °C -58...301.6 °F
Analogue start point	-50...145 °C -58...293 °F
Analogue end point	-45...150 °C -49...302 °F
In steps of	0.1 °C 0.1 °F

Resolution of switching output [K]	0.1
Resolution of analogue output [K]	current output: MS / 4096; voltage output: MS / 3561
Resolution of display [K]	0.1

Accuracy / deviations

Switch point accuracy [K]	± 0,3 + (± 0,1 % MS)
Precision analogue output [K]	± 0,3 + (± 0,1 % MS)
Display accuracy [K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]	0,1;(in case of deviation from the reference condition 25 ± 5 °C)

Response times

Dynamic response T05 / T09 [s]	1 / 3;(to DIN EN 60751)

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	207
UL approval	UL Approval no. K015

Weight [g]	213.5
Materials	stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM
Tightening torque [Nm]	35
Process connection	threaded connection G 1/4
Installation length EL [mm]	50

Displays / operating elements

Display	Display unit 2 x LED, green switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit

Remarks	MS = set measuring span The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
