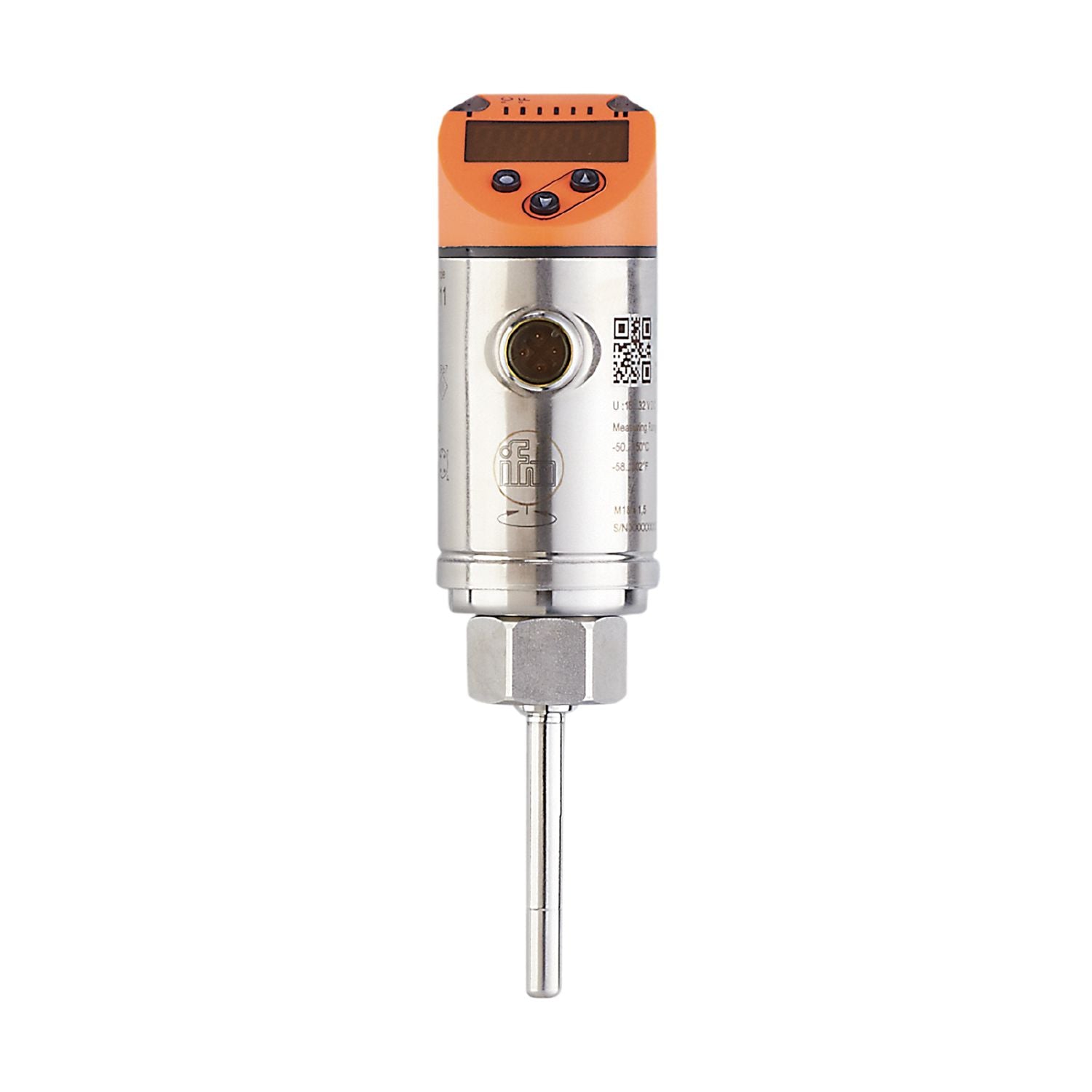

Very large temperature evaluation range. Programmable switching output with IO-Link and scalable analogue output. Intuitive and user-friendly 3-pushbutton control. Red/green display for clear identification of the acceptable range. Clearly visible LEDs for switching status indication
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-50...150 °C
-58...302 °F
Communication interface
IO-Link
Process connection
threaded connection M18 x 1,5 internal thread
Installation length EL [mm]
45
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
300
Minimum installation depth [mm]
12
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
1
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Permanent current rating of switching output DC [mA]
250
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
500
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Probe length L [mm]
45
Measuring range
-50...150 °C
-58...302 °F
Factory setting
-40...150 °C / -40...302 °F
Set point SP
-49.8...150 °C
-57.6...302 °F
Reset point rP
-50...149.8 °C
-58...301.6 °F
Analogue start point
-50...145 °C
-58...293 °F
Analogue end point
-45...150 °C
-49...302 °F
In steps of
0.1 °C
0.1 °F
Resolution
Resolution of switching output [K]
0.1
Resolution of analogue output [K]
current output: MS / 4096; voltage output: MS / 3561
Resolution of display [K]
0.1
Accuracy / deviations
Switch point accuracy [K]
± 0,3 + (± 0,1 % MS)
Precision analogue output [K]
± 0,3 + (± 0,1 % MS)
Display accuracy [K]
± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]
0,1;(in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
470
UL approval
UL Approval no.
K013
Weight [g]
207
Housing
compact type for adapter
Materials
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)
stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection
threaded connection M18 x 1,5 internal thread
Installation length EL [mm]
45
Displays / operating elements
Display
Display unit
2 x LED, green
switching status
LED, yellow
measured values
alphanumeric display, red/green 4-digit
Remarks
MS = set measuring span
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
