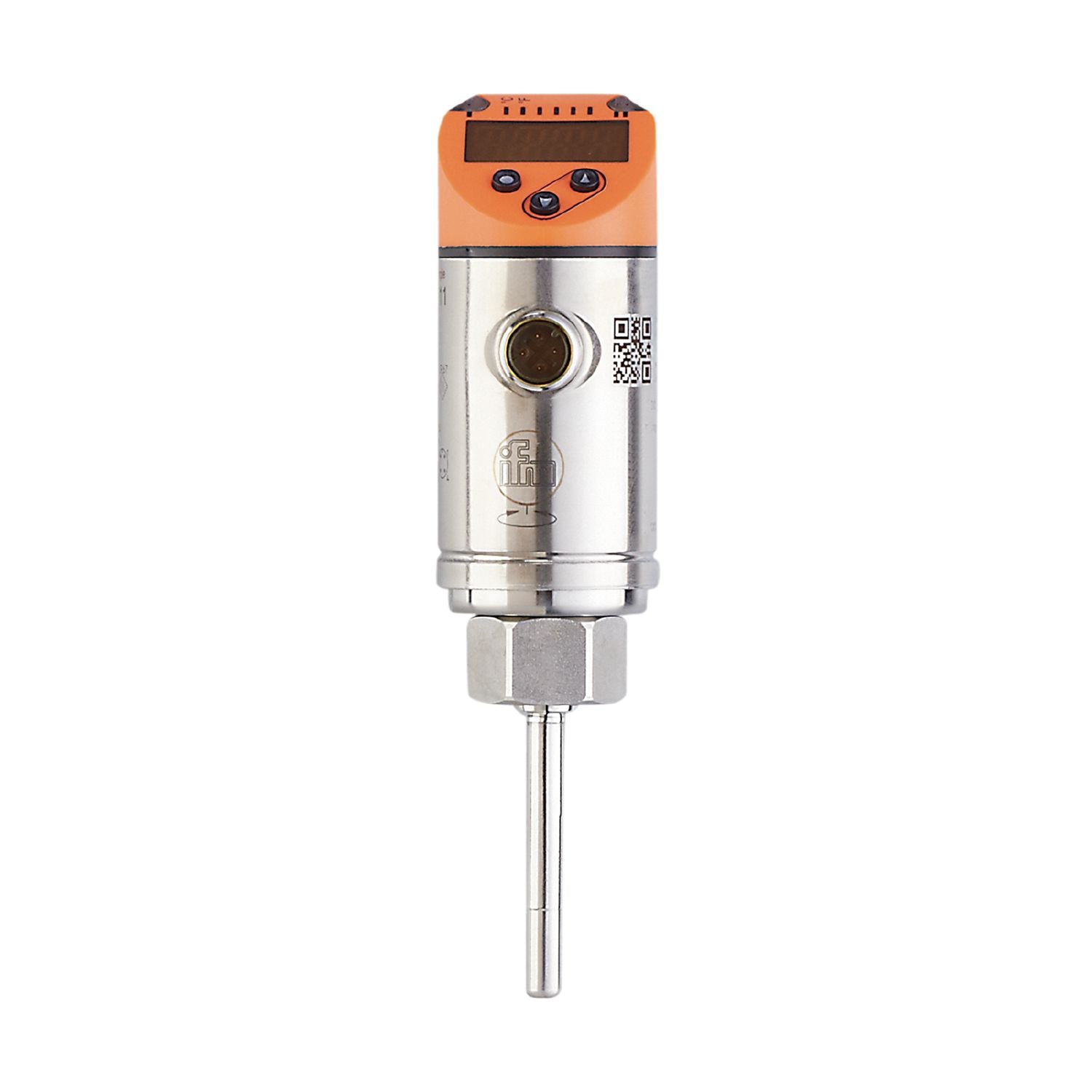

Very large temperature evaluation range. Two switching outputs, one of them with IO-Link communication interface. Intuitive and user-friendly 3-pushbutton control. Red/green display for clear identification of the acceptable range. Clearly visible LEDs for switching status indication
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
-50...150 °C
-58...302 °F
Communication interface
IO-Link
Process connection
threaded connection M18 x 1,5 internal thread
Installation length EL [mm]
45
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
300
Minimum installation depth [mm]
12
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
1
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
250
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Probe length L [mm]
45
Measuring range
-50...150 °C
-58...302 °F
Set point SP
-49.8...150 °C
-57.6...302 °F
Reset point rP
-50...149.8 °C
-58...301.6 °F
In steps of
0.1 °C
0.1 °F
Resolution
Resolution of switching output [K]
0.1
Resolution of display [K]
0.1
Accuracy / deviations
Switch point accuracy [K]
± 0,3 + (± 0,1 % MS)
Display accuracy [K]
± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]
0,1;(in case of deviation from the reference condition 25 ± 5 °C)
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)
stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection
threaded connection M18 x 1,5 internal thread
Installation length EL [mm]
45
Displays / operating elements
Display
Display unit
2 x LED, green
switching status
LED, yellow
measured values
alphanumeric display, red/green 4-digit
Remarks
MS = set measuring span
The values for accuracy apply to flowing water.
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TN7511-00 — 13.04.2023 —
