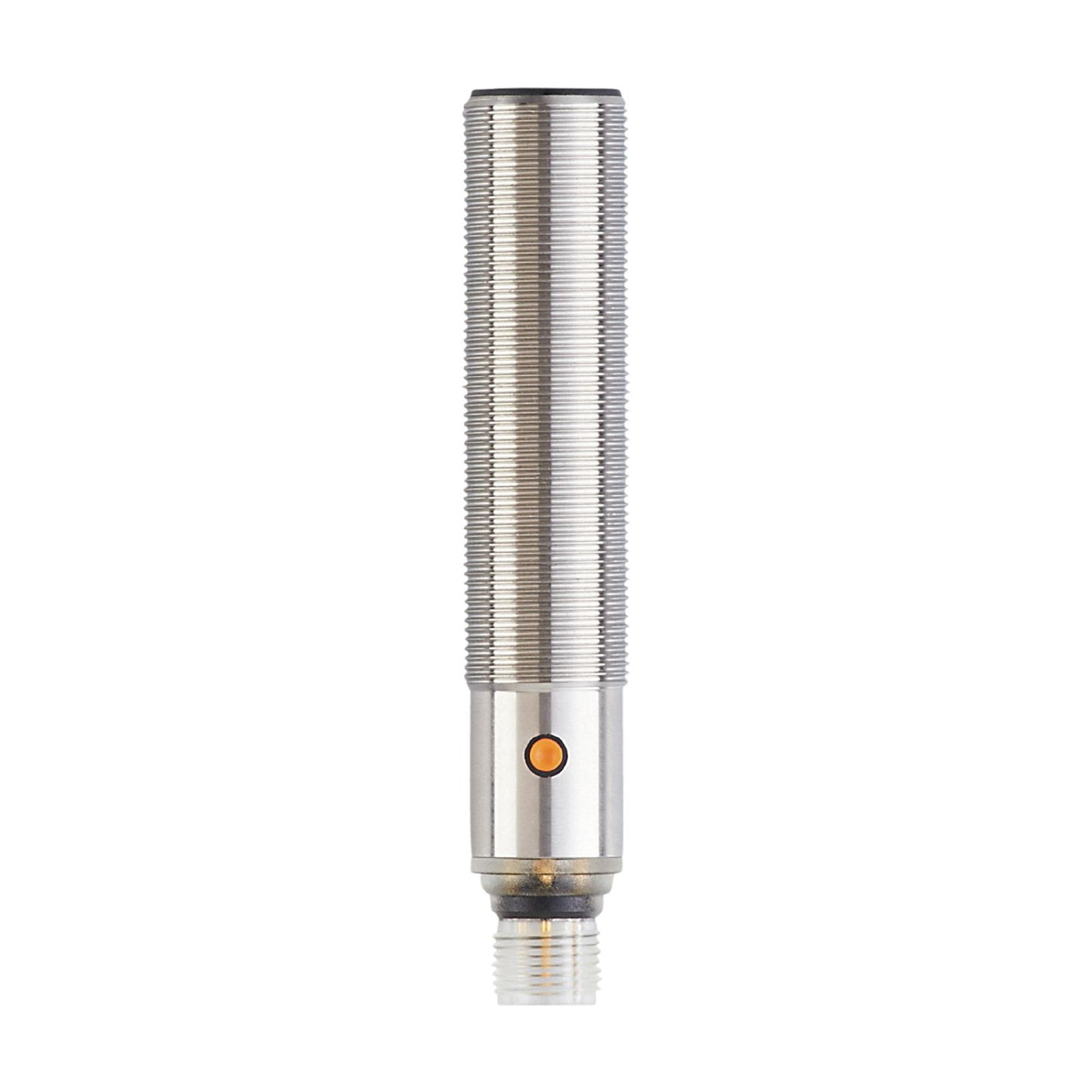

Very large detection range. Intuitive setting of the detection range via pushbutton or IO-Link. Clearly visible LED for indicating switching status and echo. With programmable switching output and scalable analogue output. Non-contact detection independent of colour, transparency or surface characteristics of the object
Electrical design
PNP
Output function
normally open / normally closed;(parameterisable)
Sensing range [mm]
150...1600;(Target: 200 x 200 mm)
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 97.5
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
55
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.3
Converter frequency [kHz]
230
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal; IO-Link
Electrical design
PNP
Number of digital outputs
1
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.2
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
3
Number of analogue outputs
1
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
3000
Short-circuit protection
yes
Overload protection
yes
Resolution of analogue output
< 3 mm
Detection zone
Sensing range [mm]
150...1600;(Target: 200 x 200 mm)
Blind zone [mm]
150
Angle of aperture cylindrical [°]
15;(±2)
Max. deviation from the 90° angle sensor/object [°]
± 4
Accuracy / deviations
Temperature compensation
yes
Hysteresis [%]
< 2
Switch point drift [%]
-2...2
Linearity error of analogue output [%]
<2
Repeatability
1 %
Notes on the accuracy / deviation
The indicated values are reached after a warm-up time of min. 20 minutes
Response times
Response time [ms]
< 300;(analogue output)
Software / programming
Parameter setting options
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable;Device Diagnosis; Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter
Supported DeviceIDs
Type of operation
DeviceID
default
703
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-20...70
Storage temperature [°C]
-30...80
Protection
IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
3 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
Class A
Vibration resistance
EN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
1:
distance
2:
Detection zone
3:
switch-on/switch-off graph
4:
Target 200 x 200 mm
5:
50% of the target in the detection zone
6:
switch point
