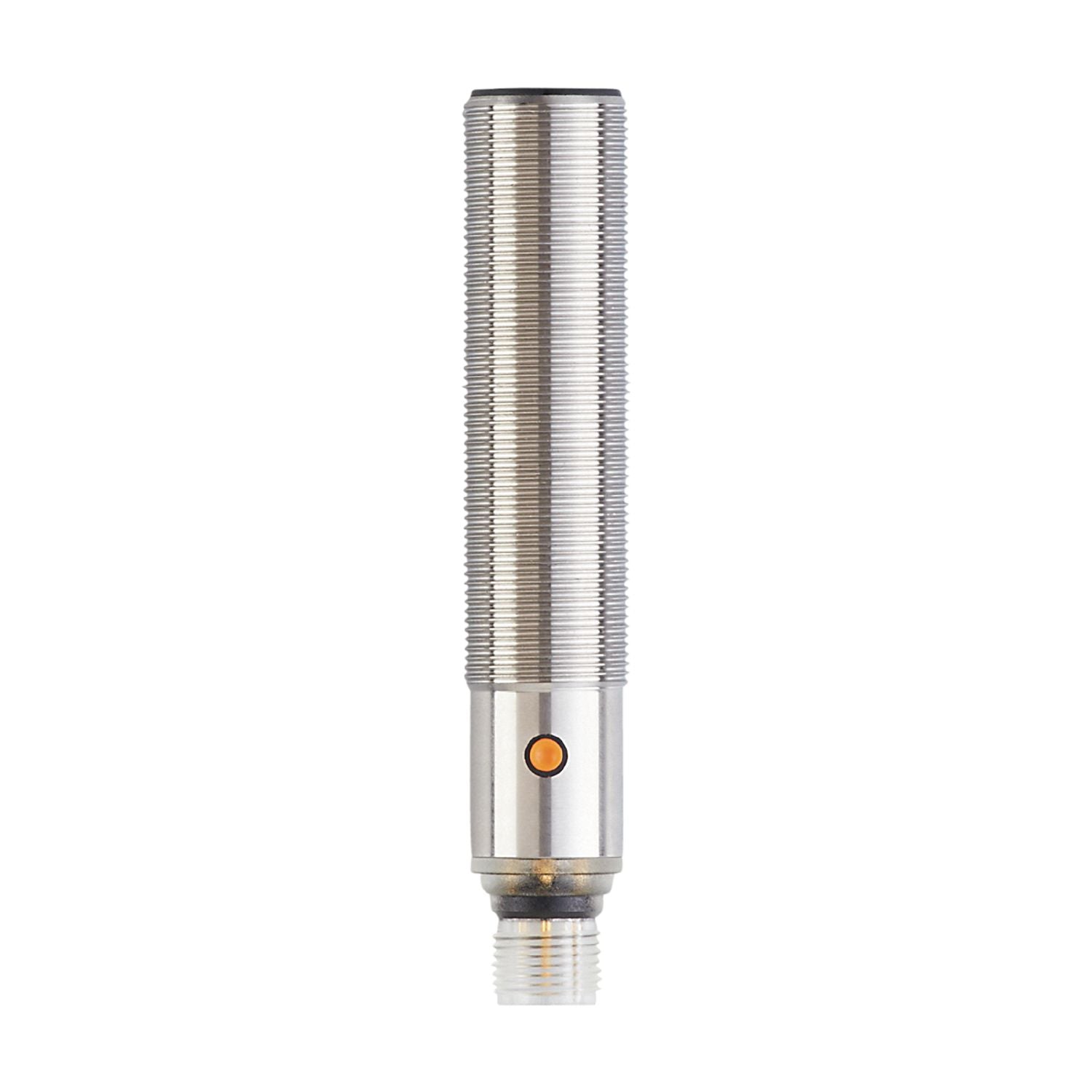

IFM UGT516 - Ultrasonic sensor UGA01600F1KG/US

Very large detection range.
Intuitive setting of the detection range via pushbutton.
Clearly visible LED for indicating switching status and echo.
With programmable switching output and scalable analogue output.
Non-contact detection independent of colour, transparency or surface characteristics of the object

Electrical design	NPN
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	150...1600;(Target: 200 x 200 mm)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 97.5

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	55
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Converter frequency [kHz]	230

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal
Electrical design	NPN
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	3
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Short-circuit protection	yes
Overload protection	yes
Resolution of analogue output	< 3 mm

Detection zone

Sensing range [mm]	150...1600;(Target: 200 x 200 mm)
Blind zone [mm]	150
Angle of aperture cylindrical [°]	15;(±2)
Max. deviation from the 90° angle sensor/object [°]	± 4

Accuracy / deviations

Temperature compensation	yes
Hysteresis [%]	< 2
Switch point drift [%]	-2...2
Linearity error of analogue output [%]	<2
Repeatability	1 %
Notes on the accuracy / deviation	The indicated values are reached after a warm-up time of min. 20 minutes

Response times

Response time [ms]	< 300;(analogue output)

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-30...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A
Vibration resistance	EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years]	125
UL approval	Ta -20...70 °C power supply Class 2 File number UL E174191

Weight [g]	100.5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 97.5
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
Tightening torque [Nm]	50

Displays / operating elements

Display	switching status 2 x LED, yellow echo 1 x LED, green
Teach function	yes

Accessories

Items supplied	lock nuts: 2, stainless steel

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	1: distance 2: Detection zone 3: switch-on/switch-off graph 4: Target 200 x 200 mm 5: 50% of the target in the detection zone 6: switch point
