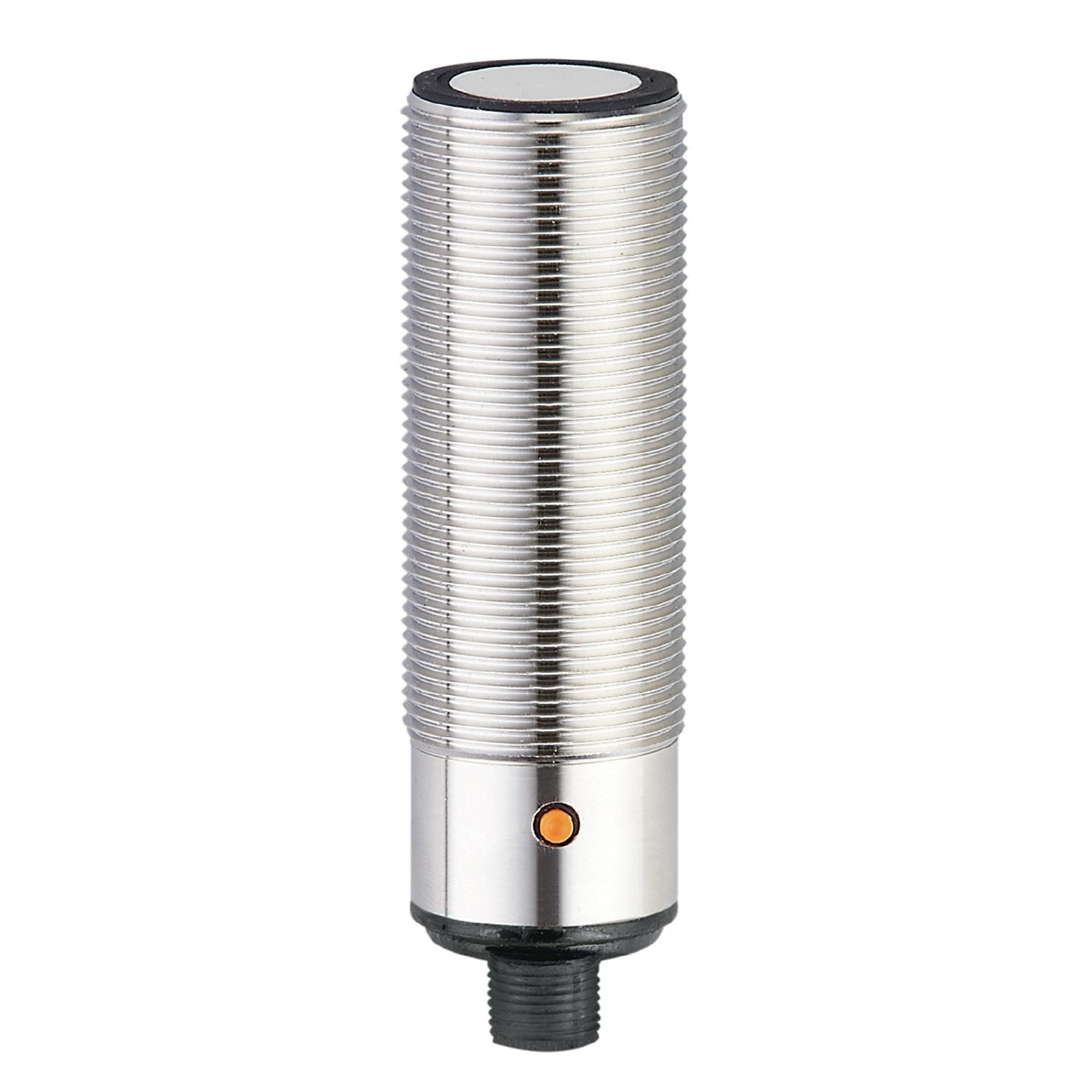

Very large detection range. Intuitive setting of the detection range via pushbutton or IO-Link. Clearly visible LED for indicating switching status and echo. With programmable switching output and scalable analogue output. Sound transducer can be configured via IO-Link
Electrical design
PNP
Output function
normally open / normally closed;(parameterisable)
Sensing range [mm]
250...3500;(Target: 200 x 200 mm)
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 103
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.3
Converter frequency [kHz]
112
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal; IO-Link
Electrical design
PNP
Number of digital outputs
1
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.2
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
500
Short-circuit protection
yes
Overload protection
yes
Detection zone
Sensing range [mm]
250...3500;(Target: 200 x 200 mm)
Blind zone [mm]
250
Angle of aperture cylindrical [°]
12;(±2)
Max. deviation from the 90° angle sensor/object [°]
± 4
Accuracy / deviations
Temperature compensation
yes
Hysteresis [%]
< 3
Switch point drift [%]
-5...5
Linearity error of analogue output [%]
<3
Repeatability
1 %
Resolution [mm]
3
Notes on the accuracy / deviation
The indicated values are reached after a warm-up time of min. 20 minutes
Response times
Response time [ms]
< 600;(analogue output)
Software / programming
Parameter setting options
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable;Device Diagnosis; Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter; transducer configuration
Supported DeviceIDs
Type of operation
DeviceID
default
1451
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-20...70
Storage temperature [°C]
-30...80
Protection
IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
3 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
Class A
Vibration resistance
EN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
1
distance
2
Standard sound beam
3
Medium sound beam
4
Narrow sound beam
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UIT520-00 — 13.04.2023 —
