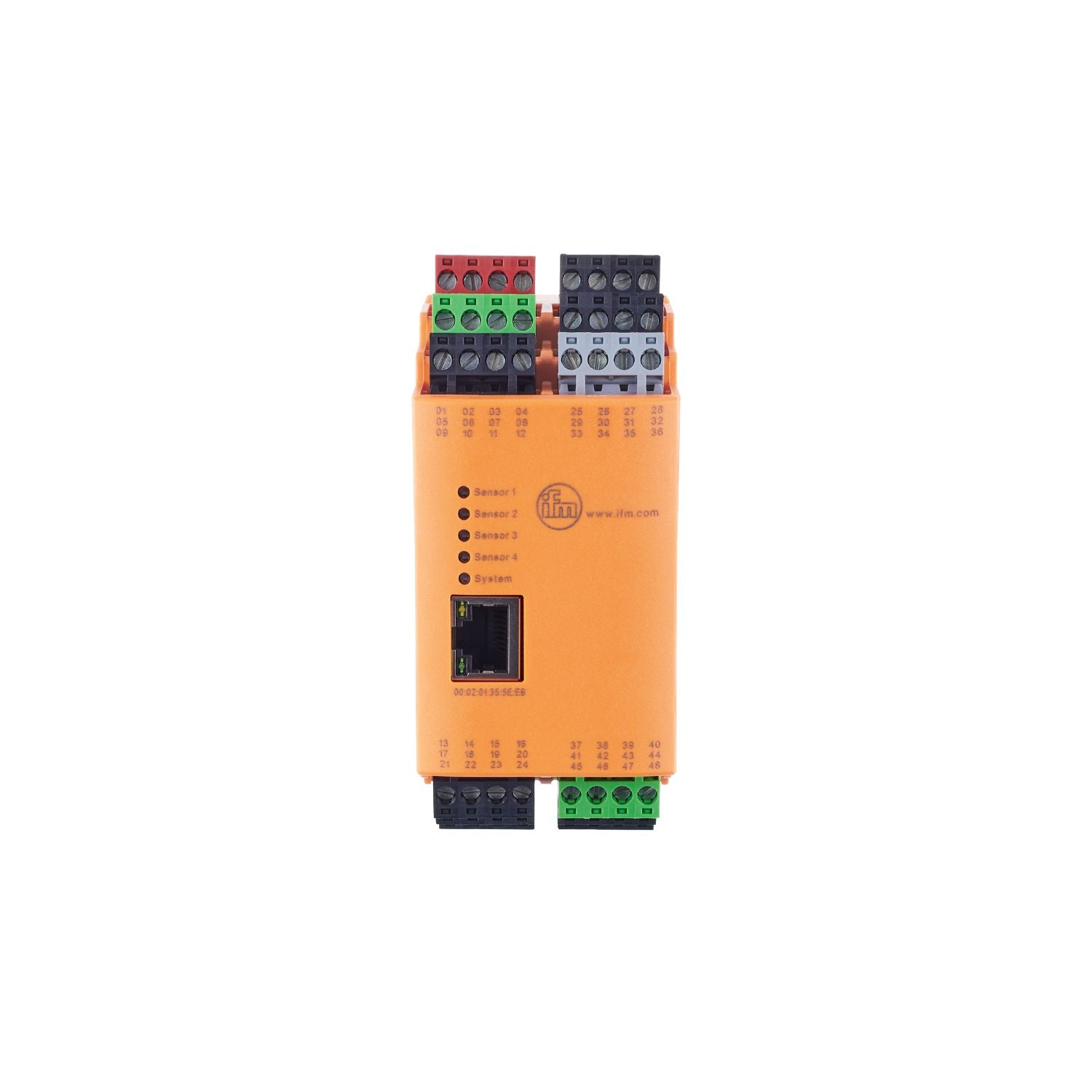

IFM VSE100 - Diagnostic electronics for vibration sensors DIAGNOSTIC ELECTRONICS

For the reliable vibration monitoring of machines and equipment.
Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state.
Inputs for the simultaneous detection of up to four vibration sensors.
Two switching outputs for pre-alarm and main alarm.
Analogue inputs for monitoring further measurement variables

Frequency range [Hz]	0.1...12000
Communication interface	Ethernet

Design	parameter setting via PC software VES004
Application	continuous vibration monitoring

Operating voltage tolerance [%]	20
Operating voltage [V]	24 DC;(when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
Current consumption [mA]	200;(24 V)
Protection class	III

Inputs / outputs

Total number of inputs and outputs	16;(configurable)
Number of inputs and outputs	Number of digital inputs: 8; Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 10; Number of analogue outputs: 1

Inputs

Total number of inputs	10
Number of digital inputs	8;(configurable)
Input circuit of digital inputs	HTL
Number of analogue inputs	2
Analogue input (current) [mA]	4...20
Resolution of analogue input	12
Number of dynamic inputs	4
Dynamic input - signal	0...10 mA / IEPE / 4...20 mA
Dynamic input - resolution [bit]	16
Dynamic input - frequency range [Hz]	0,1...12000
Dynamic input - sampling rate [kSamples]	100

Outputs

Total number of outputs	10
Output signal	switching signal; analogue signal
Electrical design	PNP
Number of digital outputs	10;(configurable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Number of analogue outputs	1;(configurable)
Analogue current output [mA]	0...22; (0...10 V)
Max. load [Ω]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Frequency range [Hz]	0.1...12000

Interfaces

Communication interface	Ethernet
Protocol	TCP/IP

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	0...70
Protection	IP 20

Tests / approvals

EMC	EN IEC 61000-6-2 EN IEC 61000-6-4
MTTF [years]	89
UL approval	Ta 70 °C Enclosure type Type 1 power supply Limited Voltage/Current

Weight [g]	460.6
Housing	plastic housing
Type of mounting	rail;(TH35/EN60715)
Dimensions [mm]	114 x 50 x 105
Materials	PA

Data memories

History memory	yes
Data memory buffered	yes
Data memory type	ring memory; FIFO
Real-time clock	yes
Memory location	internal
Memory interval	min. 1 min
Memory size	881664 data records

Accessories

Accessories (optional)	cross-over Ethernet patch cable for the direct connection to the PC

Pack quantity	1 pcs.

Electrical connection

Connection	COMBICON: ; Maximum cable length: 250 m

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSE100-06 — 13.04.2023 —
