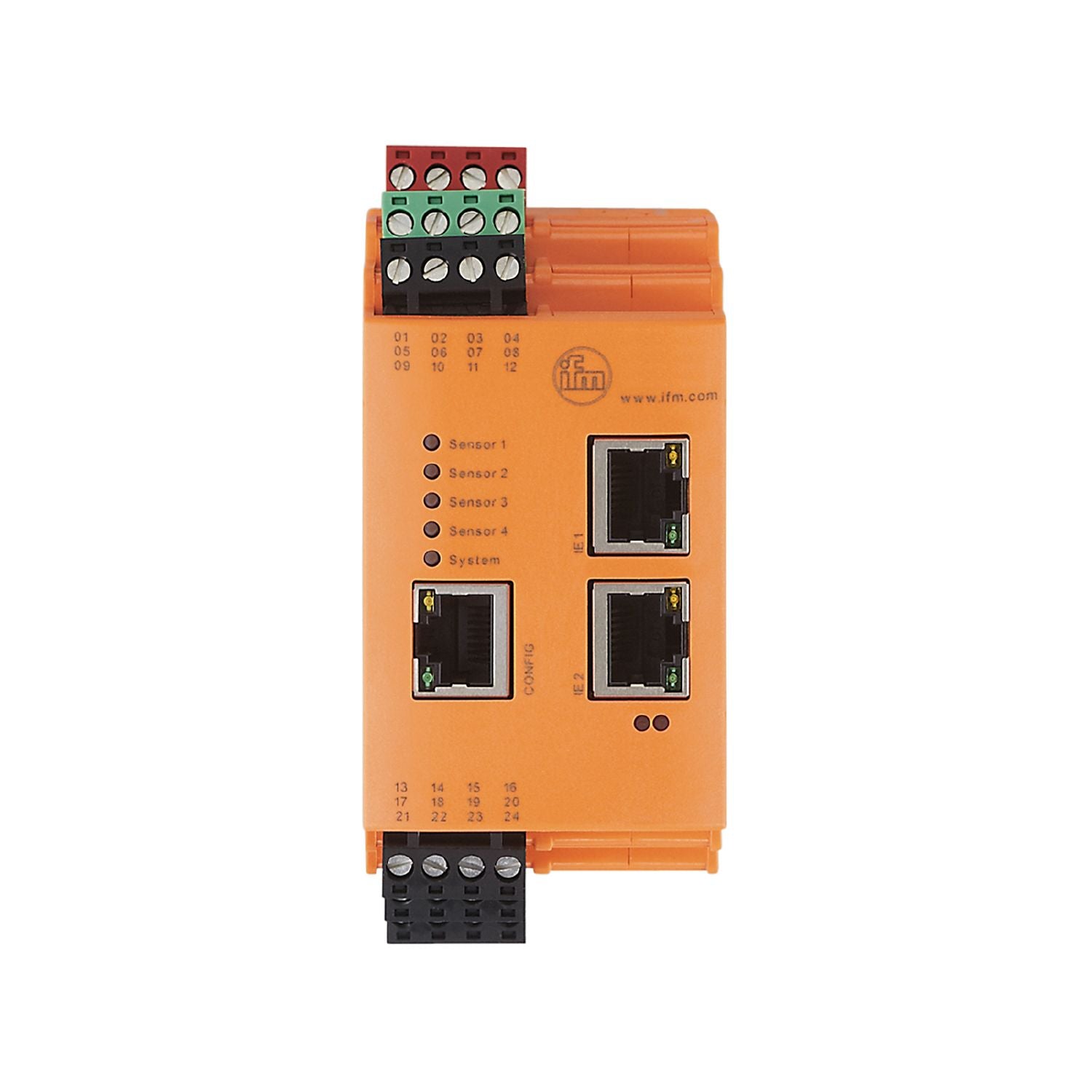

For the reliable vibration monitoring of machines and equipment. Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state. Dynamic inputs for simultaneous detection of up to four vibration sensors. Two switching outputs for pre-alarm and main alarm. Analogue inputs for monitoring further physical measurands
Frequency range [Hz]
0.1...12000
Communication interface
Ethernet
Design
parameter setting via PC software VES004
Application
continuous vibration monitoring
Operating voltage tolerance [%]
20
Operating voltage [V]
24 DC;(when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
Current consumption [mA]
200;((24 V DC))
Protection class
III
Inputs / outputs
Total number of inputs and outputs
8;(configurable)
Number of inputs and outputs
Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1
Inputs
Total number of inputs
6
Number of analogue inputs
2
Analogue input (current) [mA]
4...20
Resolution of analogue input
12
Number of dynamic inputs
4
Dynamic input - signal
0...10 mA / IEPE / 4...20 mA
Dynamic input - resolution [bit]
16
Dynamic input - frequency range [Hz]
0,1...12000
Dynamic input - sampling rate [kSamples]
100
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal
Electrical design
PNP
Number of digital outputs
2;(configurable)
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
100
Number of analogue outputs
1;(configurable)
Analogue current output [mA]
4...20
Max. load [Ω]
500
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Frequency range [Hz]
0.1...12000
Interfaces
Communication interface
Ethernet
Transmission rate
10 MBaud; 100 MBaud
Protocol
Modbus TCP
Operating conditions
Ambient temperature [°C]
0...60
Storage temperature [°C]
0...60
Protection
IP 20
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV contact discharge / 15 kV air discharge
EN 61000-4-3
10 V/m (80...2700 MHz)
EN 61000-4-4 Burst
4 kV capacitive coupling probe, earthed
EN 61000-4-6
10 V 0,15...80 MHz
EN 61000-6-4
industrial environments
MTTF [years]
91
UL approval
Ta
0...60 °C
Enclosure type
open Type
power supply
Limited Voltage/Current
UL Approval no.
L001
Weight [g]
414.6
Housing
plastic housing
Type of mounting
rail;(TH35/EN60715)
Dimensions [mm]
114.2 x 50 x 105.3
Materials
PA
Data memories
Real-time clock
yes
Accessories
Accessories (optional)
cross-over Ethernet patch cable for the direct connection to the PC
Pack quantity
1 pcs.
Electrical connection
Connection
COMBICON:
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSE153-00 — 13.04.2023 —
