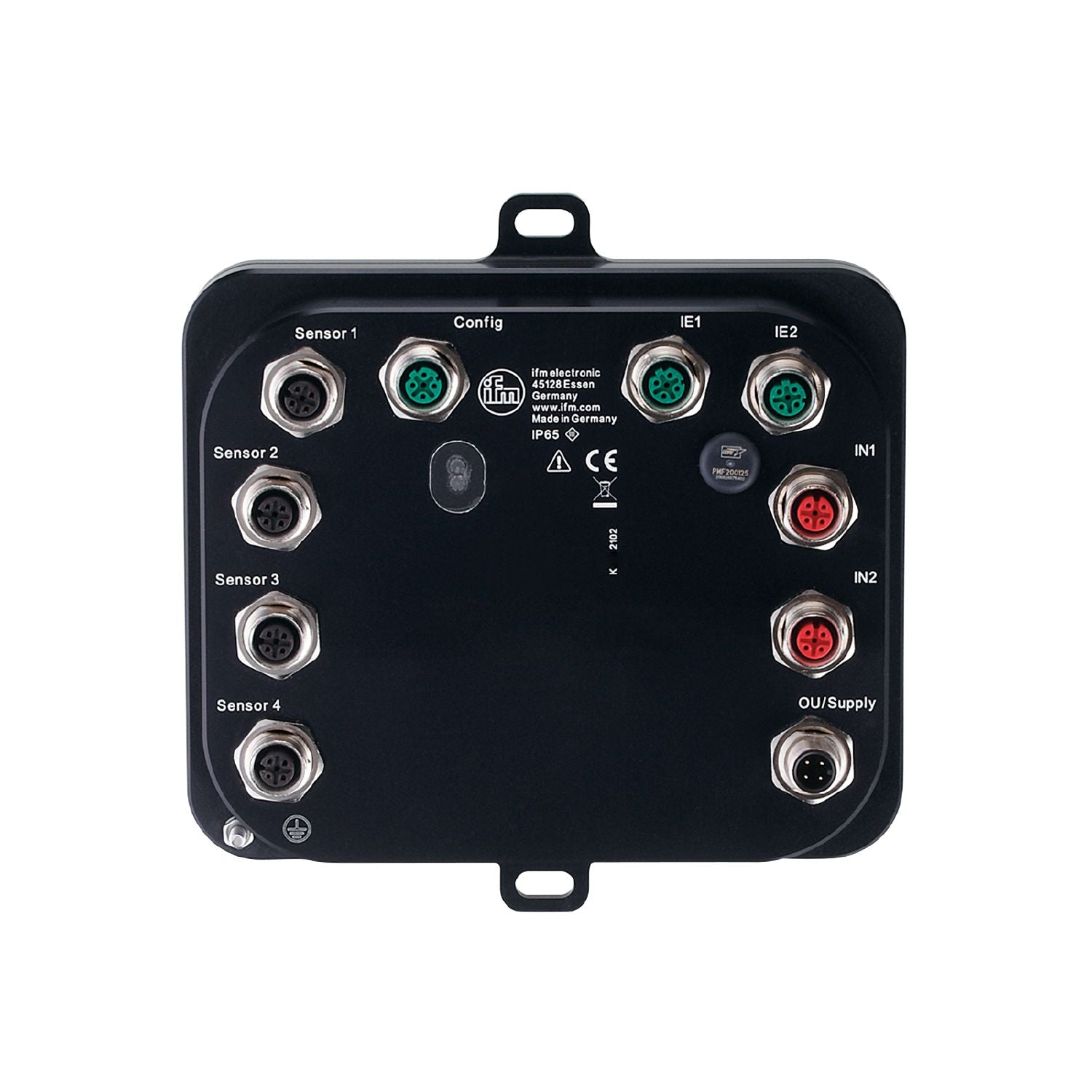

IFM VSE953 - Diagnostic electronics for vibration sensors DIAGNOSTIC ELECTRONICS

Robust IP 67 housing for decentralised use.
Fast, error-free installation and retrofitting thanks to standard M12 connections.
Six signal inputs collect all relevant data for condition monitoring.
Separation between automation network and IT network.
Compatible with all common acceleration sensors

Frequency range [Hz]	0...12000
Communication interface	Ethernet

Design	parameter setting via PC software VES004

Operating voltage tolerance [%]	20
Operating voltage [V]	24 DC
Current consumption [mA]	200;((24 V DC))
Protection class	III

Inputs / outputs

Total number of inputs and outputs	8;(configurable)
Number of inputs and outputs	Number of digital inputs: 1; Number of analogue inputs: 1; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

Total number of inputs	6
Number of digital inputs	1
Digital input - frequency range [Hz]	0,1...100000
Number of analogue inputs	1;(static)
Analogue input (current) [mA]	0...20
Resolution of analogue input	12
Number of dynamic inputs	4
Dynamic input - signal	0...20 mA
Dynamic input - resolution [bit]	16
Dynamic input - frequency range [Hz]	0...12000
Dynamic input - sampling rate [kSamples]	100

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal
Electrical design	PNP
Number of digital outputs	2;(configurable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Number of analogue outputs	1;(configurable)
Analogue current output [mA]	0...22
Max. load [Ω]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Frequency range [Hz]	0...12000

Interfaces

Communication interface	Ethernet
Connector type	M12
Protocol	Modbus TCP

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	0...60
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV contact discharge / 15 kV air discharge EN 61000-4-3 10 V/m (80...2700 MHz) EN 61000-4-4 Burst 4 kV capacitive coupling probe, earthed EN 61000-4-6 10 V 0,15...80 MHz EN 61000-6-4 industrial environments
UL approval	UL Approval no. L004 File number UL E251902

Weight [g]	1369.5
Housing	aluminium
Type of mounting	backplane mounting
Dimensions [mm]	175 x 172 x 66.6
Materials	EN AW-5083: black anodised

Data memories

Real-time clock	yes

Accessories

Accessories (optional)	cross-over Ethernet patch cable for the direct connection to the PC

Pack quantity	1 pcs.
