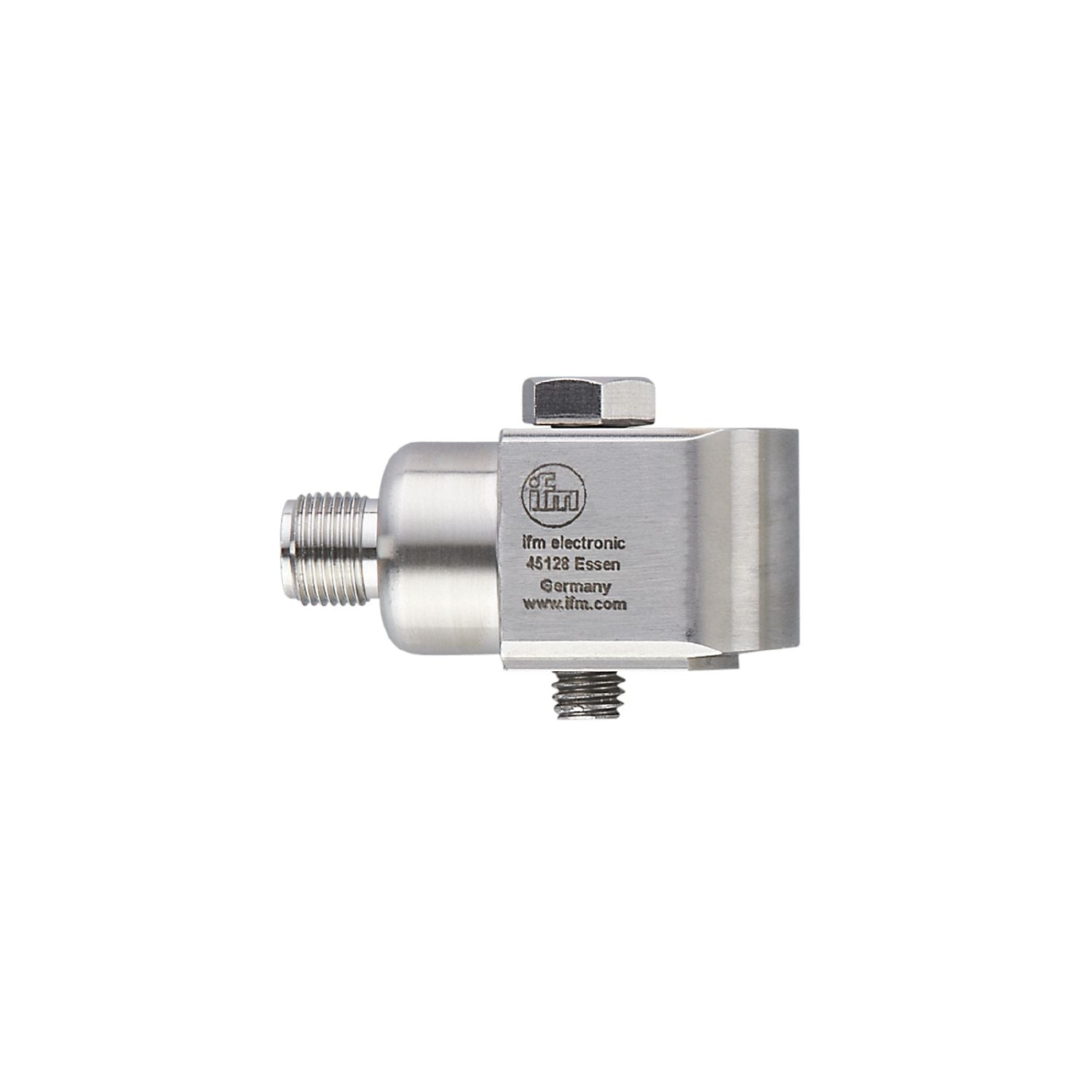

IFM VSP003 - Acceleration sensor VIBRATION SENSOR

For the reliable vibration detection of machines and equipment.
For connection to a diagnostic electronics for vibration sensors.
Large operating temperature range and high protection rating for the requirements of harsh industrial environments.
Compact and robust stainless steel housing with high mechanical overload protection.
Very good repeatability and low linearity deviation

Measuring range of vibration [g]	-80...80;(-50...50 g when connected to a VSE)
Frequency range [Hz]	1.5...16000
Measuring principle	piezoelectric
Communication interface	IEPE

Design	for connection to external diagnostic electronics VSE

Bias voltage DC [V]	10...12
Current consumption [mA]	0.5...8
Min. insulation resistance [MΩ]	100;(500 V DC)
Reverse polarity protection	yes

Measuring/setting range

Measuring range of vibration [g]	-80...80;(-50...50 g when connected to a VSE)
Frequency range [Hz]	1.5...16000
Measuring principle	piezoelectric
Noise density [mg]	0.1
Max. transverse sensitivity [%]	5
Minimum measuring time [s]	1
Number of measurement axes	1

Accuracy / deviations

Accuracy	± 10 %
Measuring sensitivity	100 mV/g

Interfaces

Communication interface	IEPE

Operating conditions

Ambient temperature [°C]	-55...130
Storage temperature [°C]	-55...130
Protection	IP 67

Tests / approvals

EMC	EN 61326-1 : 2013
Shock resistance	EN 61326-1 : 2013
MTTF [years]	1142

Weight [g]	135
Type of mounting	M8 x 1,25
Materials	housing: stainless steel
Tightening torque [Nm]	8

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A
