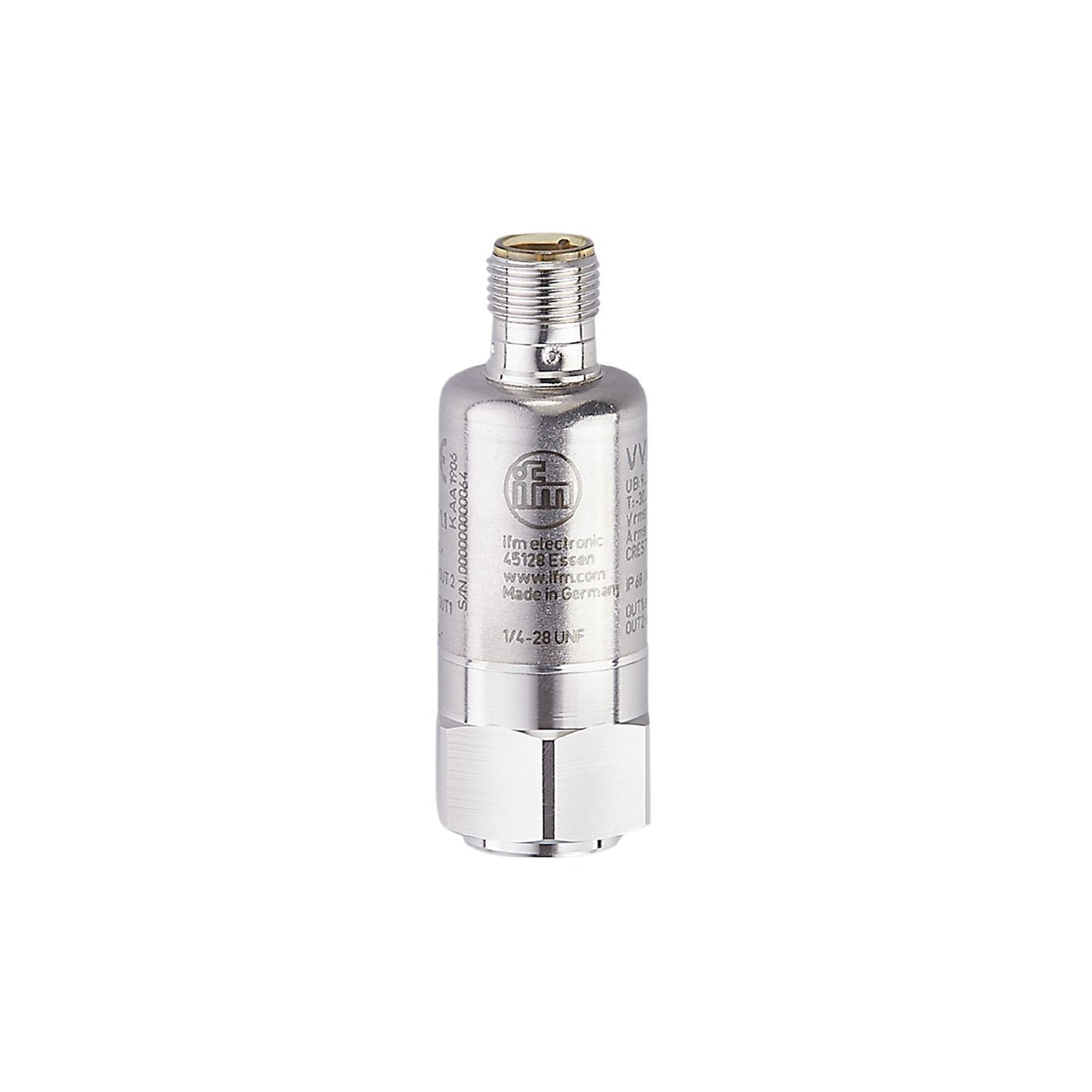

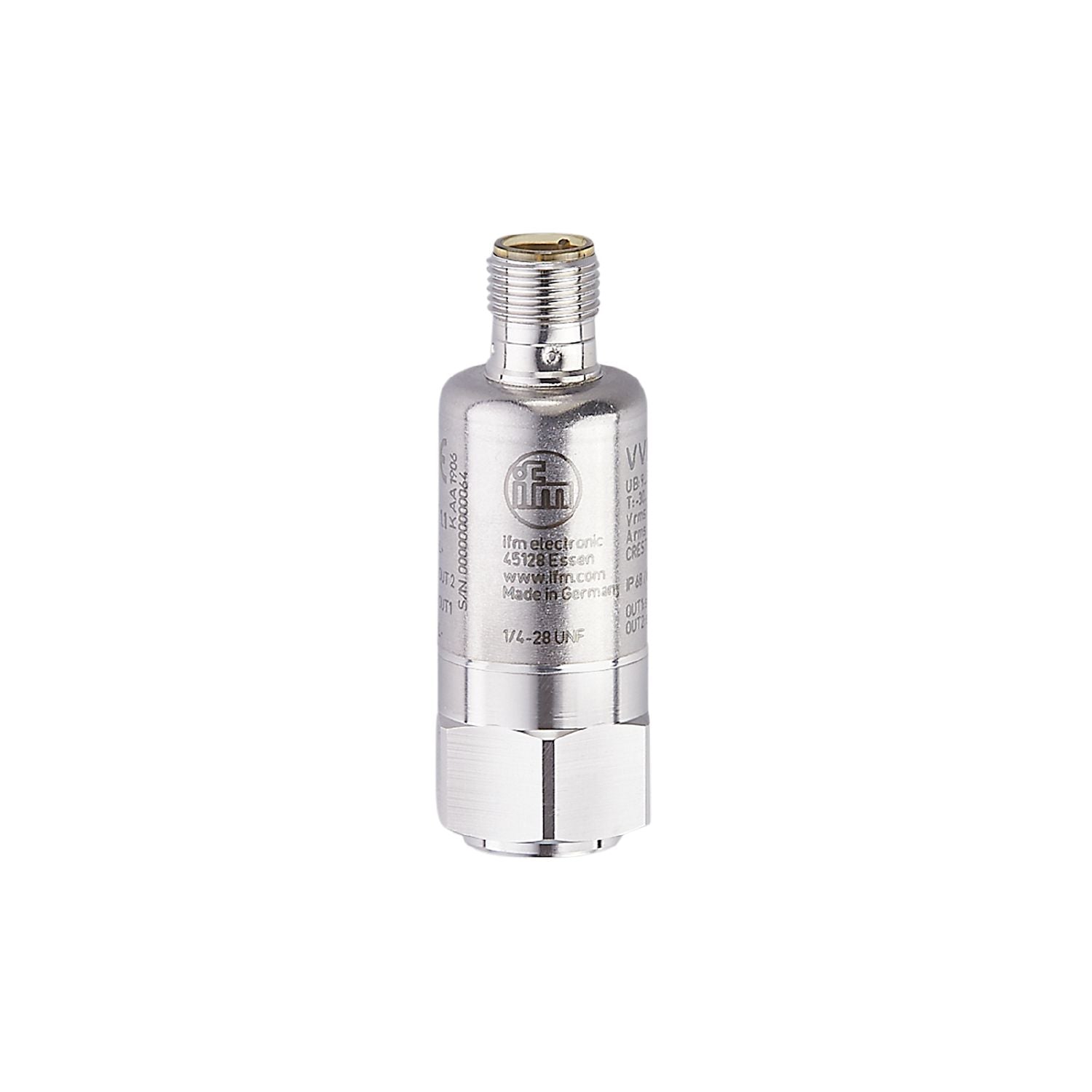

IFM VVB020 - Vibration sensor VIBRATION IO-LINK SWITCH

Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state.
Large operating temperature range and high protection rating for the requirements of harsh industrial environments.
Reliable and permanent monitoring of characteristic values incl. raw data acquisition.
Integration in Industrial Ethernet systems without control cabinet and complex wiring.
Asynchronous transmission of raw data (BLOB) and integrated operating hours counter

Frequency range [Hz]	2...10000
Measuring principle	capacitive

Measuring range of vibration [mm/s]	0...45

Measuring range of vibration	0...50 g 0...490.3 m/s²

Application	medium-sized machines, power < 300 kW, rotational speed > 600 rpm

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 50
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Sensor type	microelectromechanical system (MEMS)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Output signal	switching signal; IO-Link
Electrical design	PNP/NPN;(configurable)
Number of digital outputs	2
Output function	normally open / normally closed
Max. voltage drop switching output DC [V]	2
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Note on setpoint SP	parameterisable
Frequency range [Hz]	2...10000
Measuring principle	capacitive
Number of measurement axes	1

Measuring range of vibration [mm/s]	0...45
Set point SP [mm/s]	0.2...45
Reset point rP [mm/s]	0...44.8
In steps of [mm/s]	0.2

Measuring range of vibration	0...50 g 0...490.3 m/s²
Set point SP	0.2...50 g 2...490.3 m/s²
Reset point rP	0...49.8 g 0...488.3 m/s²
In steps of	0.2 g 2 m/s²

Measuring range of vibration	1...50
Set point SP	2...50
Reset point rP	1...49
In steps of	1

Measuring range [°C]	-30...80
Resolution [°C]	0.1
Set point SP [°C]	-28...80
Reset point rP [°C]	-30...78
In steps of [°C]	2

Accuracy / deviations

Accuracy	≤ 4 kHz +/-10 %;≥ 4...10 kHz: < 3 dB
Accuracy [K]	± 2,5 K + (0,2 x (Umgebungstemperatur - Oberflächentemperatur))
Linearity deviation	2 %

Software / programming

Parameter setting options	Software
Diagnostic functions	self-test

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9: 2013-07
Profiles	Blob (0x0030); Measuring sensor (0x800A); Common Profile (0x4000)
SIO mode	yes
Required master port type	A
Process data analogue	10
Process data binary	2
Min. process cycle time [ms]	3.6
IO-Link functions (acyclical)	filter for v-RMS, a-RMS, a-Peak; Hysteresis; window; switch points; switching logic
Supported DeviceIDs	Type of operation DeviceID Status A (COM2) 1257 Status B (COM2 / COM3) 1369
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-30...60
Storage temperature [°C]	-30...80
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	2014/30/EU DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g 11 ms 500 g 1 ms
Vibration resistance	DIN EN 60068-2-6 20 g / 10...3000 Hz
MTTF [years]	299
UL approval	Ta -30...60 °C UL Approval no. L002

Weight [g]	116.5
Type of mounting	set screw
Materials	housing: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	8

Accessories

Items supplied	set screw: 1 x 1/4" 28 UNF / M8 set screw: 1 x 1/4"28 UNF x 5/8" DIN916

Notes	the hardware version BC has a temporarily changed ambient temperature range
Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A; Maximum cable length: 20 m

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VVB020-01 — 13.04.2023 —
