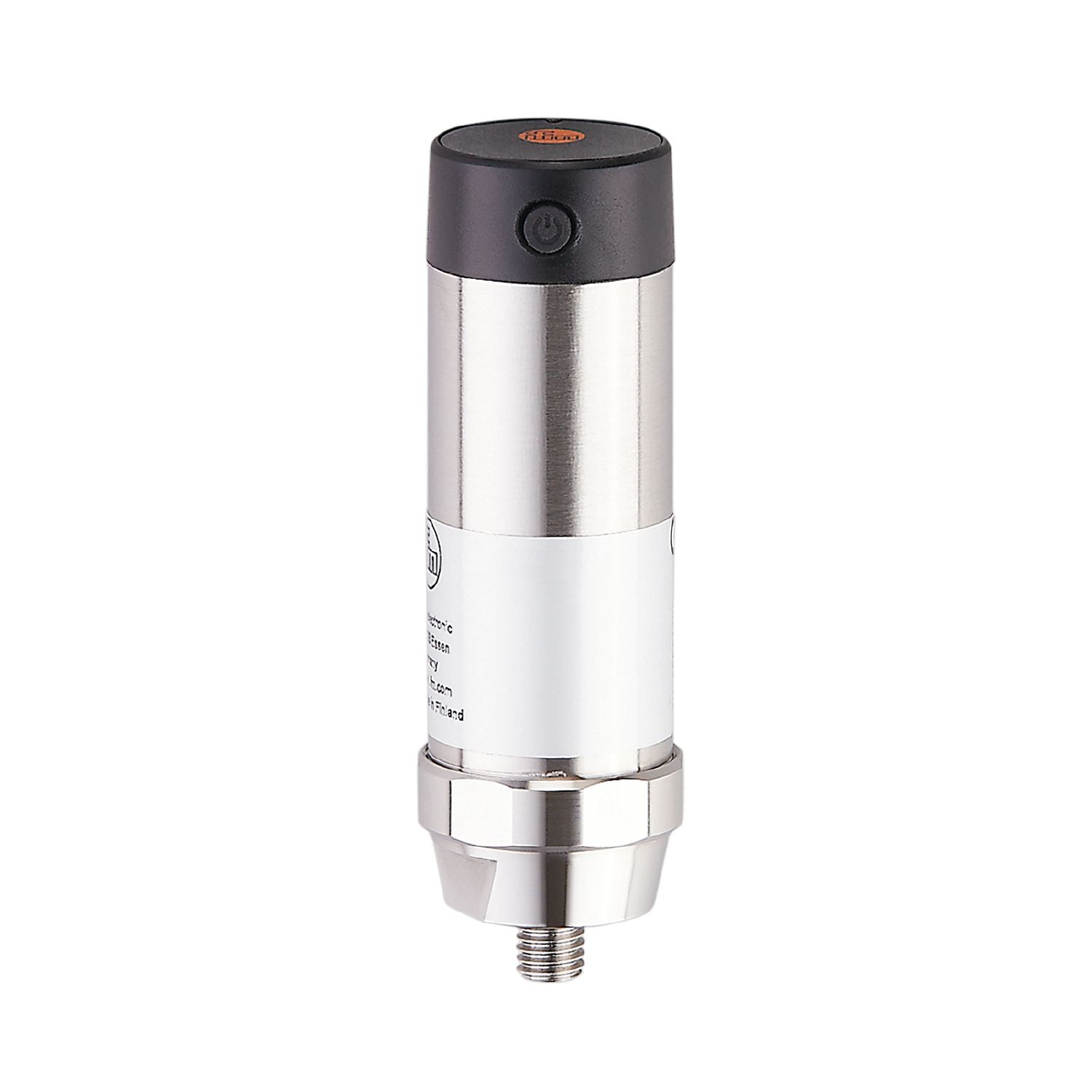

Reliable and intermittent monitoring of the total vibration according to DIN ISO 10816. Quick integration via battery operation and radio communication. For communication with a gateway for wireless vibration sensors. Intelligent mesh radio network up to the gateway. Robust housing for use in harsh industrial environments
Measuring range of vibration [g]
-16...16
Measuring range of vibration [mm/s]
0...25
Frequency range [Hz]
10...1000
Application
vibration sensor to ISO 10816
Radio approval for
USA; Canada; EU/RED; Australia; Brazil
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
3.6 DC;(lithium thionyl chloride battery; battery life: > 4 years battery cannot be replaced)
Protection class
III
Sensor type
microelectromechanical system (MEMS)
Measuring/setting range
Measuring range of vibration [g]
-16...16
Measuring range of vibration [mm/s]
0...25
Frequency range [Hz]
10...1000
Number of measurement axes
3
Temperature measurement
Measuring range [°C]
-30...80
Resolution [°C]
0.1
Accuracy / deviations
Accuracy
≤ 10 %
Linearity deviation
≤ 10 %
Software / programming
Parameter setting options
MQTT
Interfaces
Frequency band
2,4 GHz ISM
Range
< 25 m
Safety standard
AES-128
Protocol
proprietary
Operating conditions
Ambient temperature [°C]
-30...80
Note on ambient temperature
-20...55 °C recommended temperature for maximum battery life
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VWV002-00 — 05.11.2020 —
