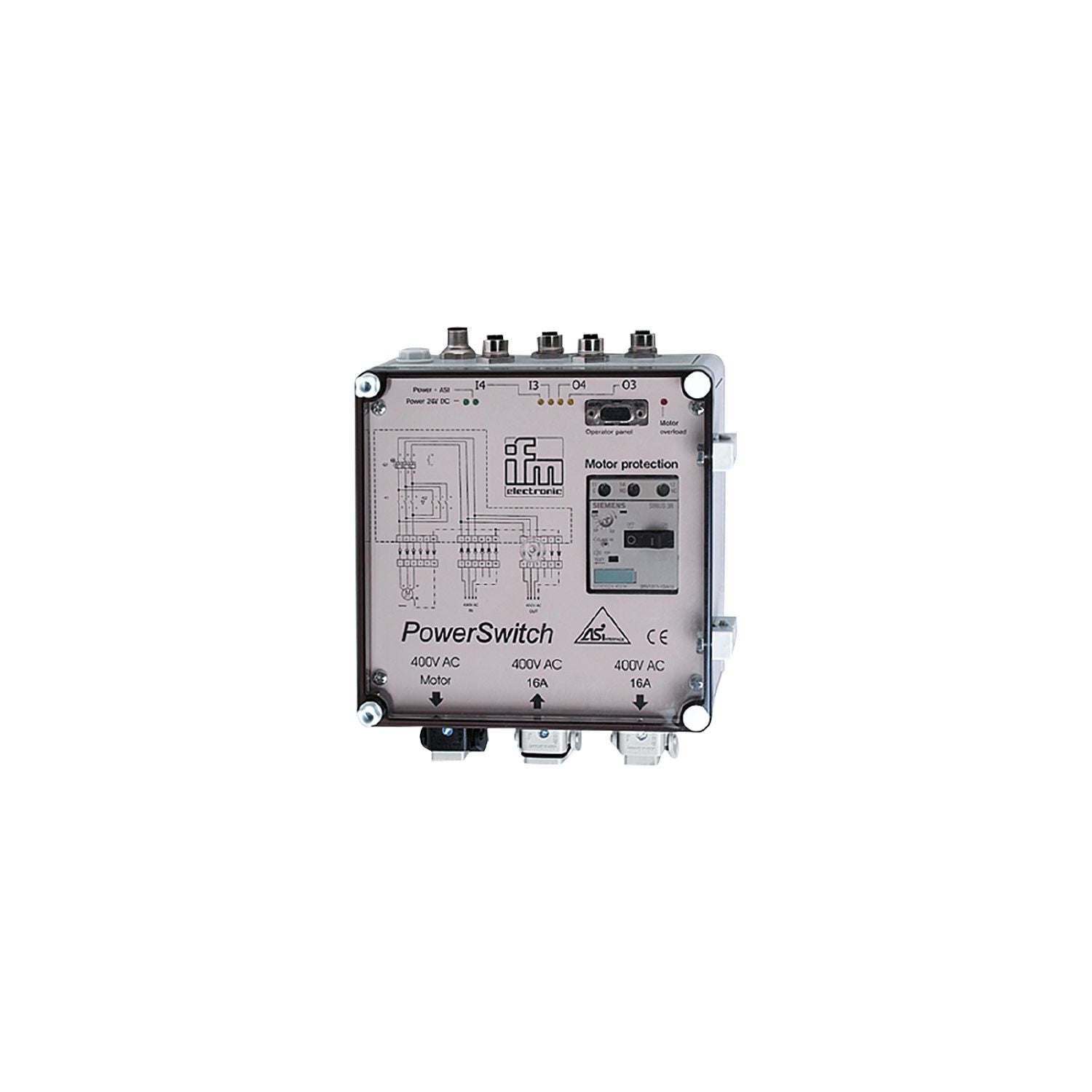

User-friendly starting and switching of three-phase motors. Reliable overload and short-circuit protection. With AS-i interface. Reversing contactor circuit for two directions. Clearly visible LEDs for indicating operation, function and switching status
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Max. current load total [A]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
20...30
Max. total current rating of inputs [mA]
140
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 10
Digital inputs protected against short circuits
yes
Outputs
Electrical design
AS-i
Number of digital outputs
4
Voltage range DC [V]
18...30;(to PELV)
Voltage range AC [V]
110...400
Max. current load per output [mA]
150;(external outputs: Short-circuit proof; reversing contactor: not protected against short circuits)
Electrically separated
yes
Operating conditions
Ambient temperature [°C]
0...60
Protection
IP 54
Tests / approvals
EMC
EN 50081-1
EN 61000-6-2
AS-i classification
AS-i version
2.0
Extended addressing mode
no
AS-i profile
S-7.0
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
0
Weight [g]
1846
Type of mounting
backplane mounting
Dimensions [mm]
180 x 182 x 90
Materials
PC glass fibre reinforced; flame-retardant; UV resistant
Displays / operating elements
Display
switching status
LED, yellow
operation
LED, green
errors
LED, red
Remarks
The PowerSwitch motor starter uses two outputs to trigger the reversing contactors (motor right/left/off).
Two further outputs can be connected at will.
The messages "motor protection activated" and "hand-held operating panel connected" are indicated via the input data bits.
Sensors can be connected to two additional inputs.
Pack quantity
1 pcs.
