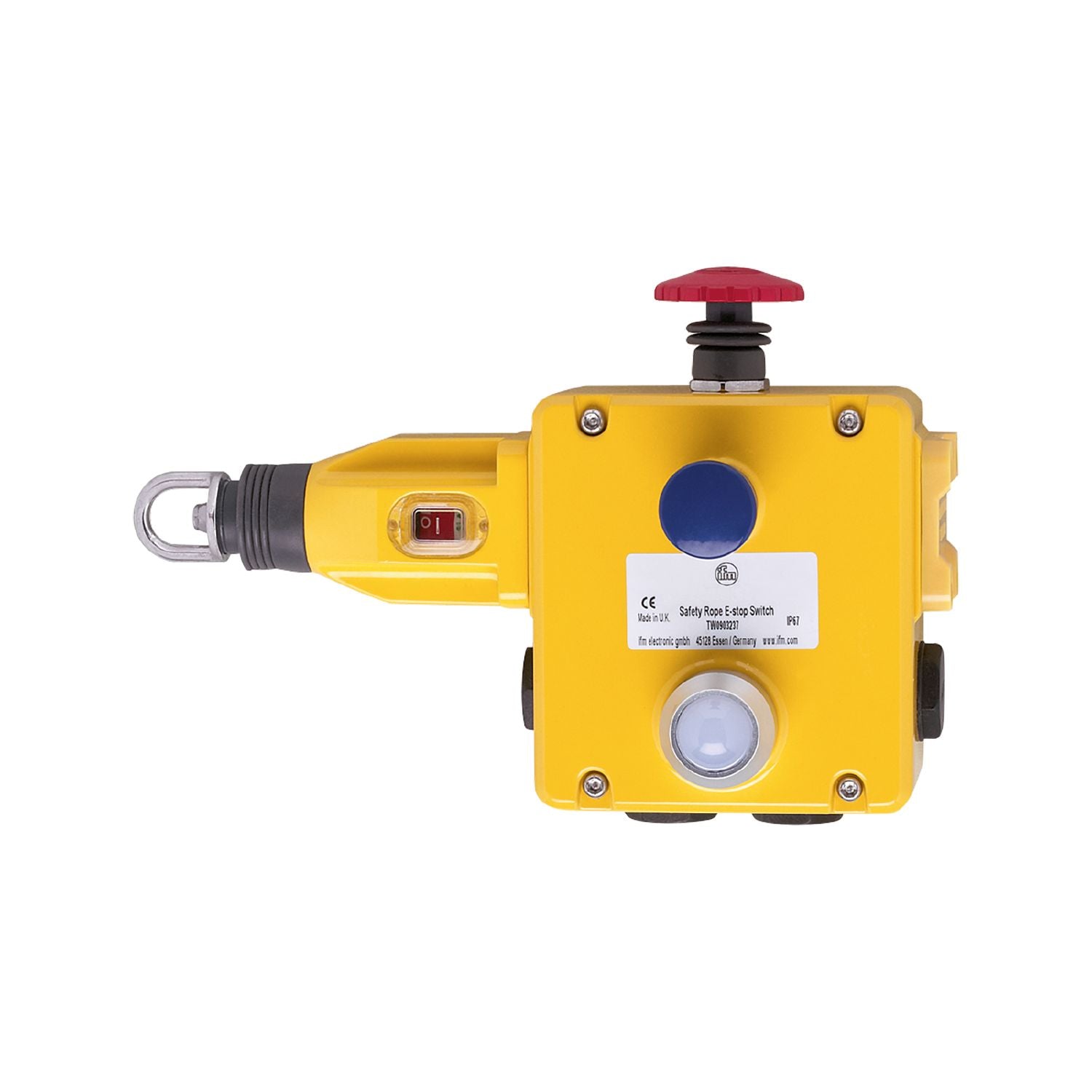

IFM ZB0073 - Safety rope emergency stop switch Rope Switch RH LED 110V AC

Reliable protection of extensive hazardous areas.
For use on conveyor belts.
Robust design for use in harsh industrial environments.
Easy setting of the rope tension

Operating voltage [V]	110...240 AC / 5...24 DC;(LED)
Rated insulation voltage [V]	500

Outputs

Electrical design	snap-action contact; max. switching voltage: 240 V; switching capacity: 720 VA; thermal current: 10 A
Output function	auxiliary contact 2 x normally open safety contact 4 x NC
Minimum load current [mA]	5;(5 V DC)
Contact rating	3 A (240 V AC) / 6 A (120 V AC) / 2,5 A (24 V DC);(inductive load)
Short-circuit protection	no

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance	15 g / 11 ms
Vibration resistance	10-500 Hz

Weight [g]	1268.5
Materials	housing: diecast aluminium yellow; switching contact: silver-plated
Information on service life	Switching cycles (mechanical): > 1.000.000
Installation position	any
Rope span	125 m;(per side)
Activation force [N]	< 125;(tension force:130 N)

Displays / operating elements

Display	operation LED, green errors LED, red flashing

Electrical connection

Required protection	10 A; fast acting

Remarks	For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — ZB0073 — 05.09.2023 —
