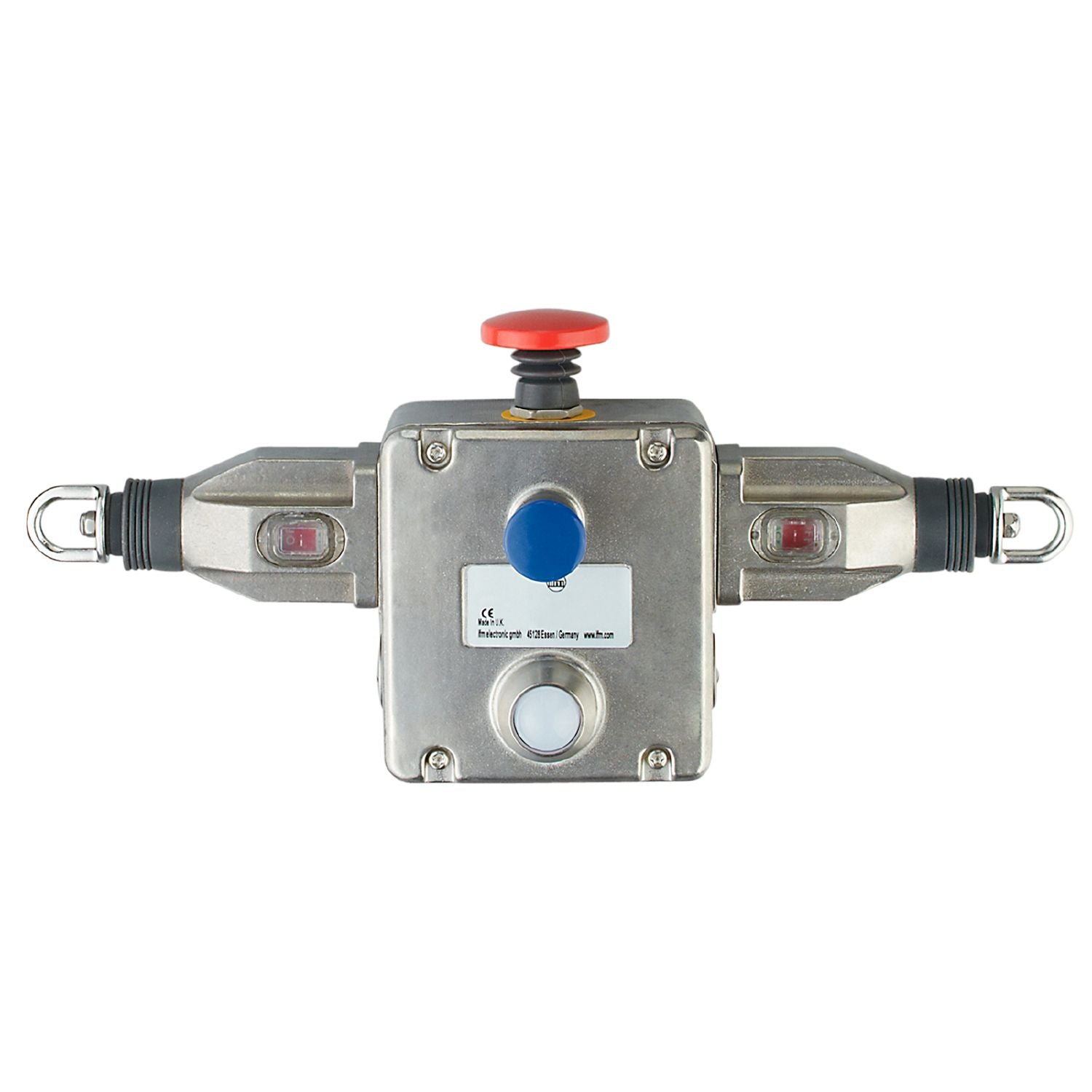

IFM ZB0075 - Safety rope emergency stop switch Rope Switch DH LED 24V DC V4A

Operating voltage [V]	110...240 AC / 5...24 DC;(LED)
Rated insulation voltage [V]	500

Outputs

Electrical design	snap-action contact; max. switching voltage: 240 V; switching capacity: 720 VA; thermal current: 10 A
Output function	auxiliary contact 2 x normally open safety contact 4 x NC
Minimum load current [mA]	5;(5 V DC)
Contact rating	3 A (240 V AC) / 6 A (120 V AC) / 2,5 A (24 V DC);(inductive load)
Short-circuit protection	no

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	cleaning: 100 °C
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance	15 g / 11 ms
Vibration resistance	10-500 Hz

Weight [g]	3118.5
Materials	switching contact: silver-plated; housing: stainless steel (316 / 1.4401)
Information on service life	Switching cycles (mechanical): > 1.000.000
Installation position	any
Rope span	125 m;(per side)
Activation force [N]	< 125;(tension force:130 N)

Displays / operating elements

Display	operation LED, green errors LED, red flashing

Electrical connection

Required protection	10 A; fast acting

Remarks	For information about installation and operation please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — ZB0075 — 05.09.2023 —
