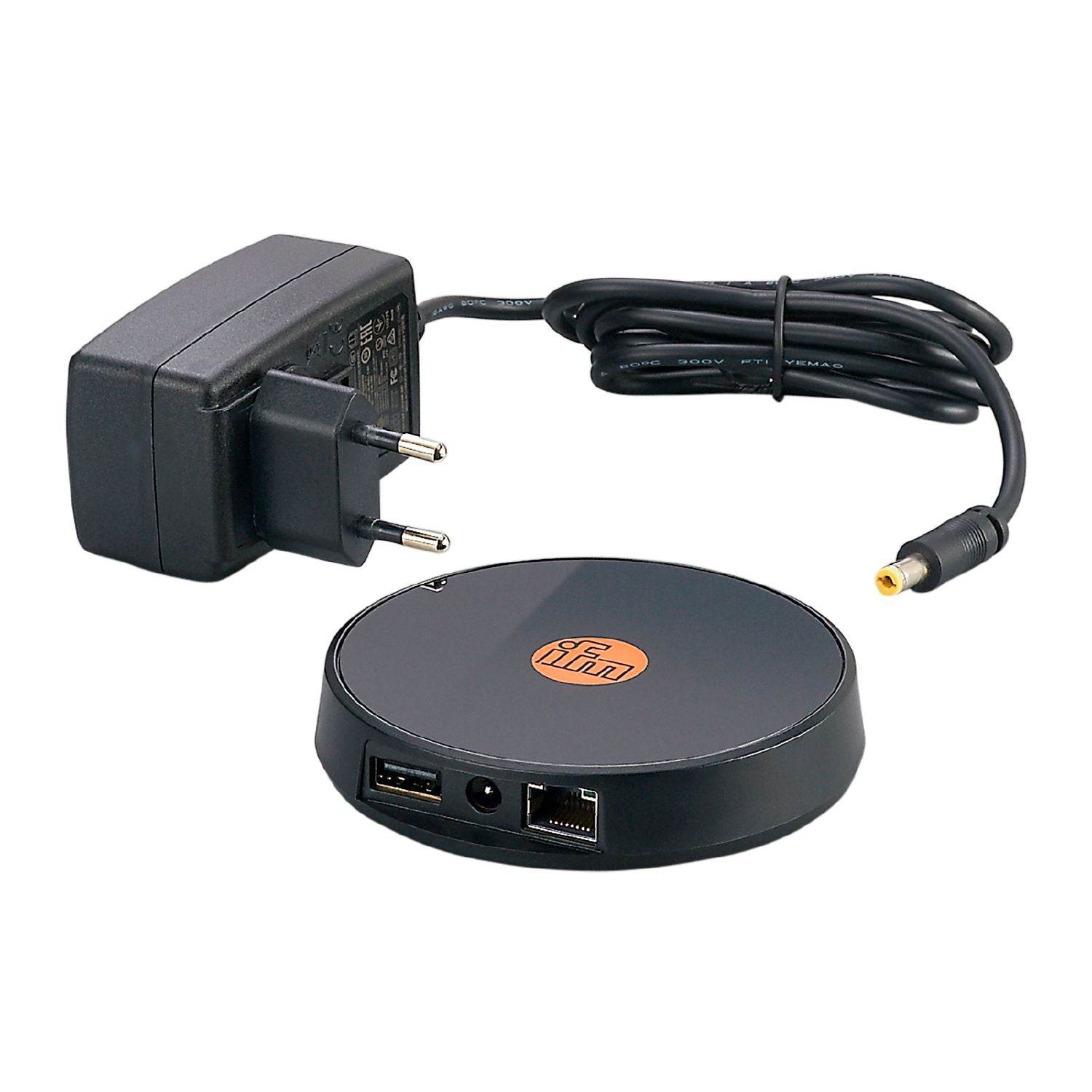

IFM ZB0929 - gateway for wireless vibration sensors VIBRATION WIRELESS GATEWAY IP20

For communication with wireless vibration sensors.
Simple configuration via integrated web interface.
Cable-based or wireless communication options with higher-level systems.
Data transmission via the MQTT JSON interface.
Visualisation of the characteristic values with moneo

Radio approval for	USA; Canada; EU/RED; Australia; Brazil
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	3.6 DC;(lithium thionyl chloride battery lithium thionyl chloride battery; battery life> 4 years; (depending on environmental conditions & settings); battery cannot be replaced)
Current consumption [mA]	< 200
Protection class	III

Software / programming

Parameter setting options	MQTT; ifm IoTcore

Interfaces

Communication interface	WLAN; Mobile networks; Ethernet

Connector type	RJ45
Protocol	TCP/IP
Usage type	data transmission

Frequency band	2,4 GHz
Safety standard	AES-128
Protocol	proprietary
Usage type	sensor connection
Note on interfaces	number of maximum connections of sensors: 30

Transmission standard	2G quadband GSM; LTECat-M1; NarrowBand-IoT
Usage type	data transmission

Connector type	USB A
Usage type	firmware update

Frequency band	2,4 GHz
Safety standard	WPA2
Usage type	data transmission

Operating conditions

Ambient temperature [°C]	0...50
Storage temperature [°C]	-40...85
Protection	IP 20

Tests / approvals

EMC	DIN EN 301489-1 DIN EN 301489-17 DIN EN 301489-52

Weight [g]	423
Dimensions [mm]	Ø 95
Materials	PA; ABS

Displays / operating elements

Display	status 1 x LED

Accessories

Items supplied	Mounting accessories, for wall mounting Power supply

Remarks	no SIM card supplied
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZB0929-01 — 17.01.2024 —
