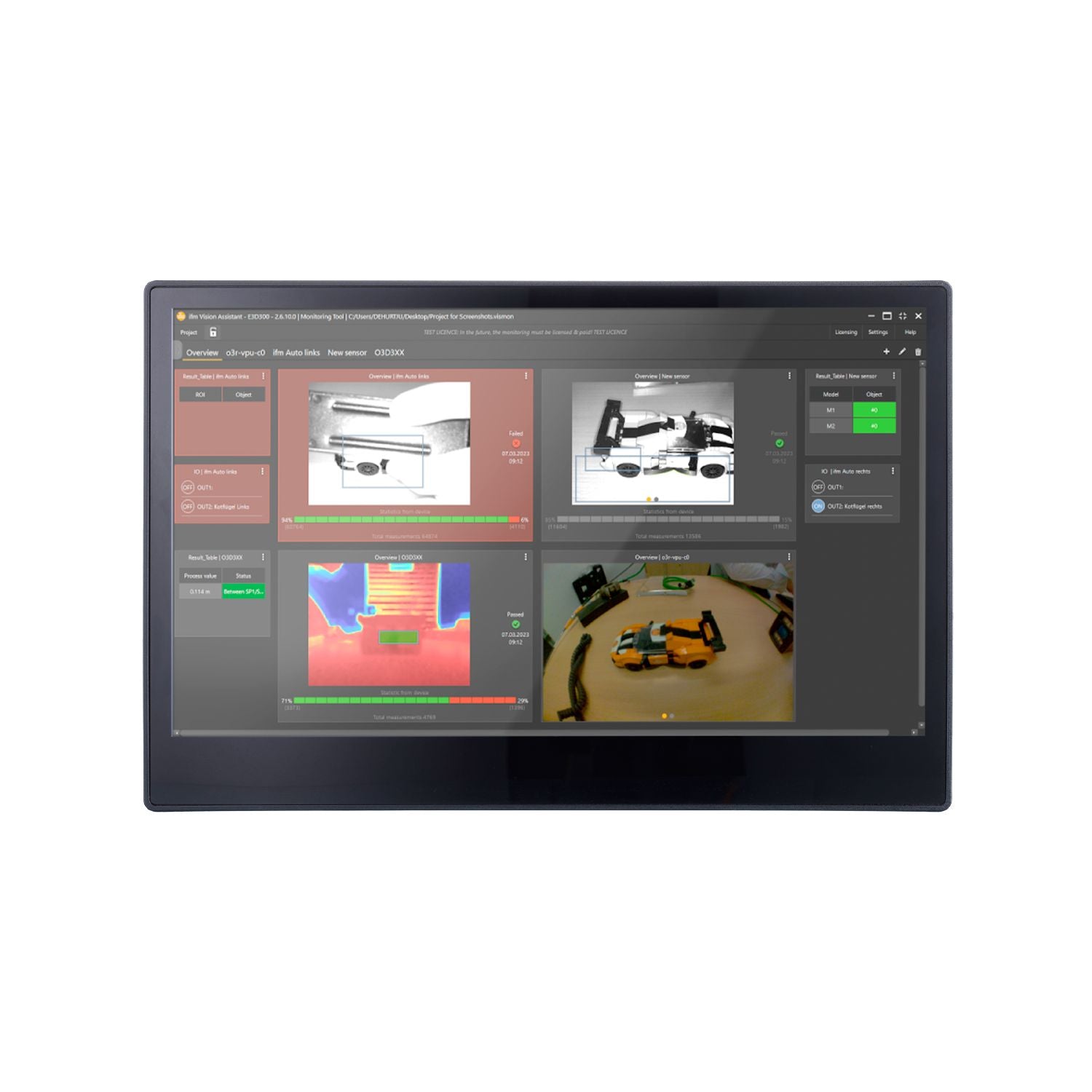

IFM ZJF060 - Touch Panel PC Panel PC FT-11.6/Celeron/4GB/128GB

11.6" Panel PC with integrated screen.
Crystal clear resolution for status indication of vision sensors and sensor data.
Touch screen with multi-touch functionality.
Pre-installed Windows 10 IoT Enterprise

Operating voltage [V]	19 DC;(Power supply 230AC / 19DC)

Outputs

Number of video outputs	1;(Proprietary miniDP)

Software / programming

Operating system	Windows 10 IoT Enterprise, Linux

Interfaces

Number of Ethernet interfaces	1;(plug RJ45)
Number of R232 interfaces	2
Number of USB interfaces	6;(USB Type -A 2 x USB 3.0 2 x USB 2.0; USB Type - C 2 x USB 3.0)
Connector type	RJ11; RJ45

Operating conditions

Storage temperature [°C]	-20...60
Max. relative air humidity [%]	85;(non condensing)

Weight [g]	2605.7
Type of mounting	VESA standard;(75 x 75 mm)
Dimensions [mm]	277 x 180.5 x 40.8

Displays / operating elements

Display	colour display LC display, 1920 x 1080 11,6"

Hardware

Processor	Intel Elkhart Lake Celeron J6412
Working memory	4GB DDR4
Mass storage	128GB SSD

Pack quantity	1 pcs.
