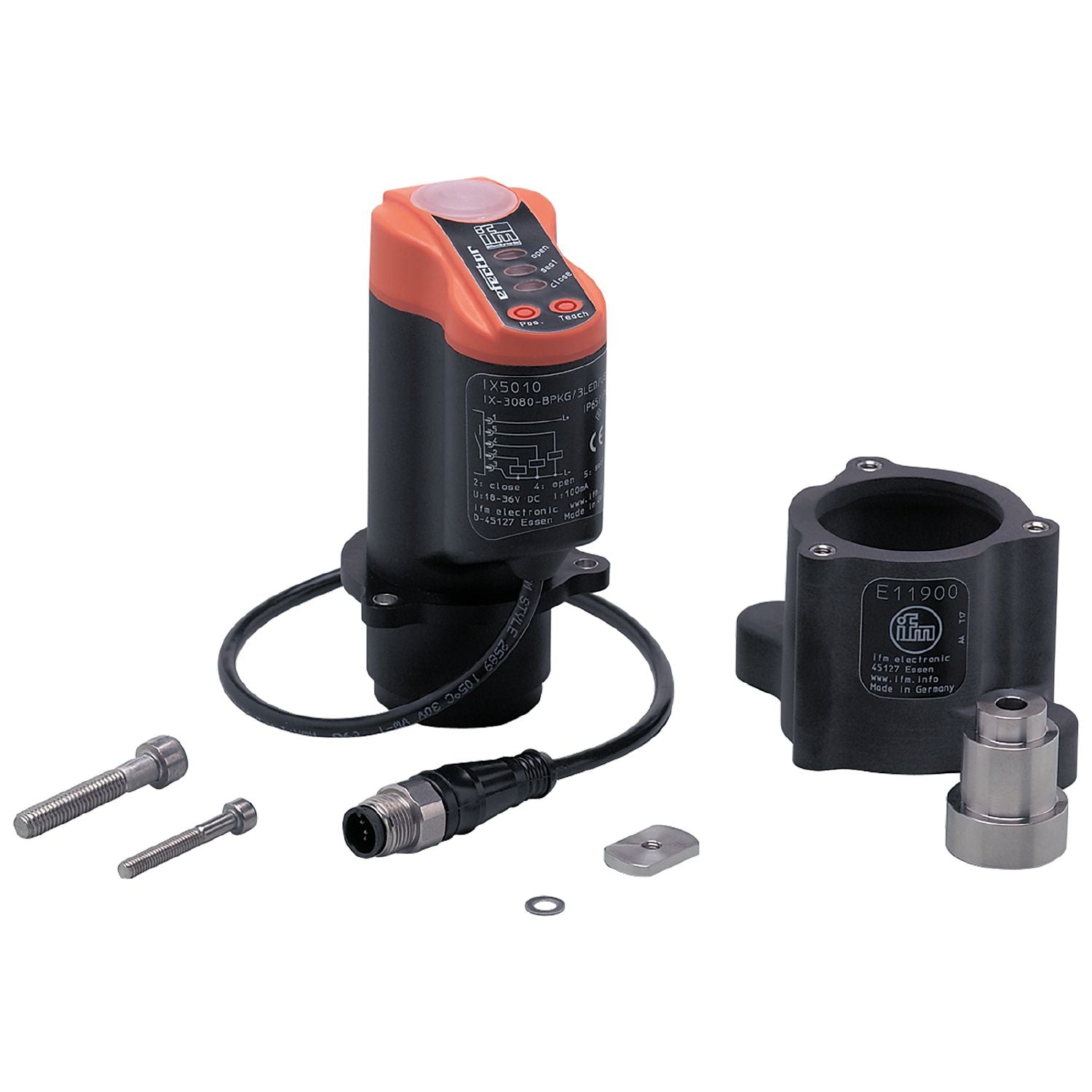

IFM ZZ0214 - Position sensor for rising stem valves SET IX5010+E11900

Position feedback for single and double seat valve and for diaphragm valves.
Freely selectable switching outputs: valve open / closed, seat lift.
Replaces three binary pulse pick-ups.
Resolution of 0.2 mm across the entire measuring range.
Programming of valve positions with pushbuttons

Dimensions [mm]	65 x 43 x 110

Operating conditions

Ambient temperature [°C]	-25...85
Note on ambient temperature	for firmly laid cable
Protection	IP 65; IP 67;(only in conjunction with an installation in the valve head that provides sufficient protection against mechanical damage of the sensor)

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV CD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV coupling clamp EN 61000-4-6 HF conducted 3 V

Weight [g]	491
Dimensions [mm]	65 x 43 x 110

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
