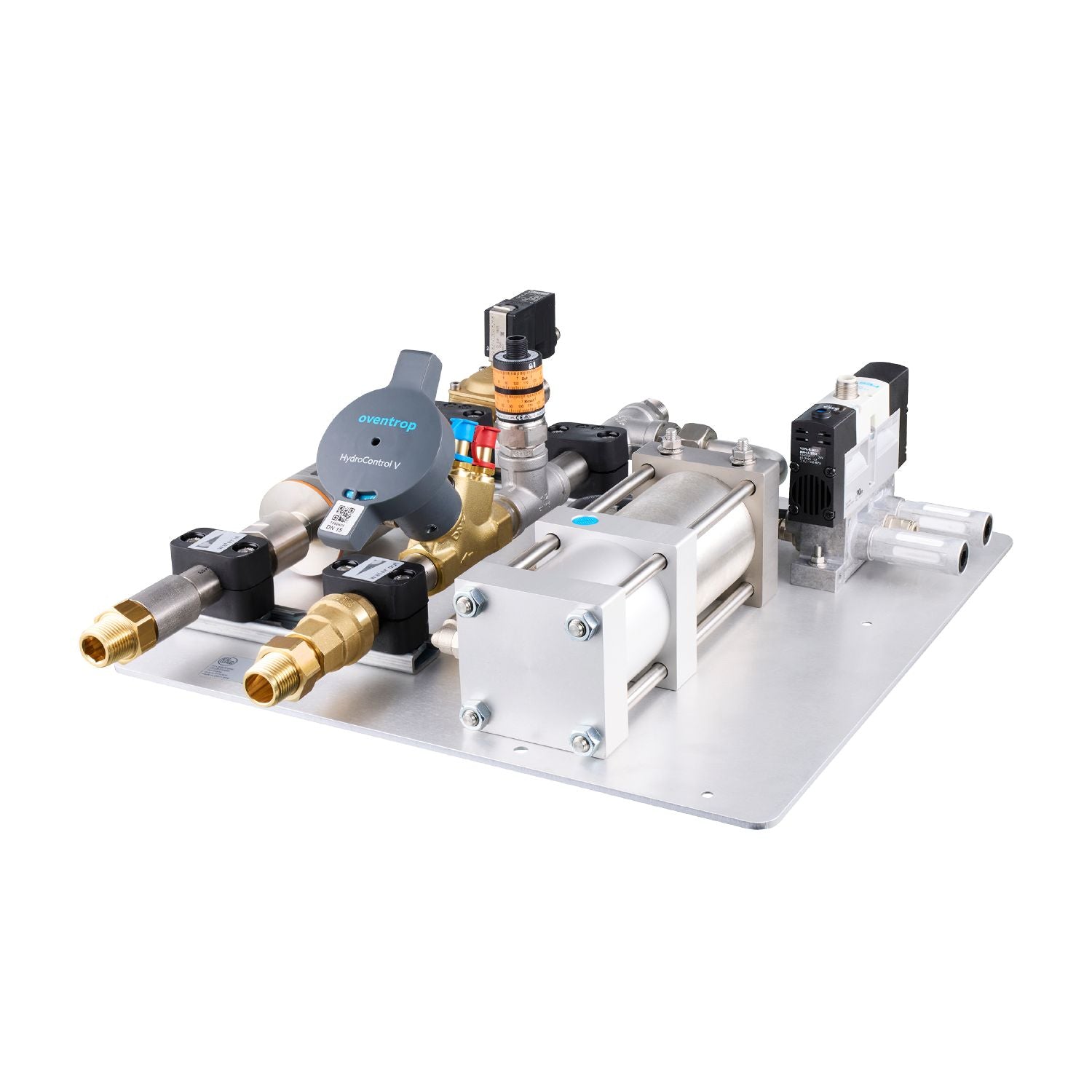

IFM ZZ0432 - Cooling water control panel SUCTION SYSTEM FOR COOLING WATER

For use in robot spot welding systems in the automotive industry.
Reliable detection of lost tips, burst pipes and leakage in the cooling system.
With flow meter to detect the amount of cooling water.
Pressure sensor to detect a sudden drop in pressure.
With cooling water suction device in case of a fault

Process connection	M22 x 1,5

Process connection	threaded connection R 1/2

Measuring range [l/min]	0.1...25

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation; cooling water control; cooling water extraction
Installation	connection to pipe by means of an adapter; tube connection
Measuring parameters	flow; temperature; pressure; totaliser
Control	manual
Media	conductive liquids; hydrous media; glycol solutions
Medium temperature [°C]	-10...70
Pressure rating [bar]	10
Volume expansion cylinder [ml]	99.75
Components	Magnetic-inductive flow meter, SM6000 Electronic pressure monitor, PK6524 water stop valve regulating valve backstop expansion cylinder 5/2-way valve

Outputs

Output signal	switching signal; analogue signal; pulse signal; IO-Link (configurable)
Output function	normally open / normally closed;(parameterisable)

Measuring/setting range

Measuring range [bar]	0...10

Measuring range [l/min]	0.1...25

Measuring range [°C]	-20...80

Response times

Risk time (response time for safety-related faults) [ms]	500

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-25...80
Protection	IP 67;(sensors)

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	8702.8
Type of mounting	with mounting plate
Materials	stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01)
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK; FKM; NBR; PVDF; PTFE

Process connection	M22 x 1,5

Process connection	threaded connection R 1/2

Pack quantity	1 pcs.

Electrical connection

	Connector: 4 x M12; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZZ0432-01 — 07.10.2021 —
