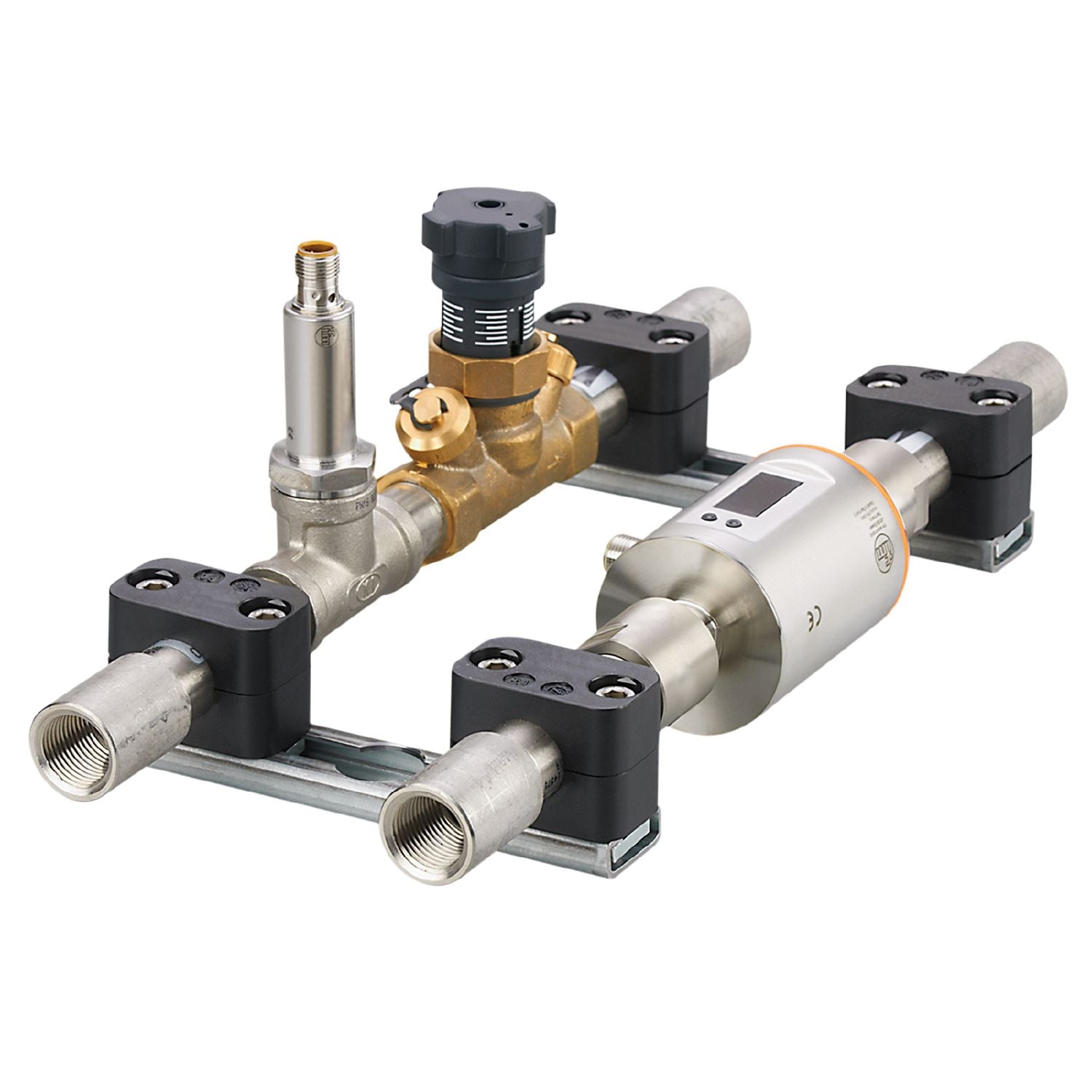

IFM ZZ0600 - Cooling water control panel FLUID MONITORING SYSTEM

Process connection	threaded connection G 1/2 internal thread

Process connection	threaded connection G 1/2 internal thread

Measuring range [l/min]	0.1...25

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation; cooling water control
Installation	connection to pipe by means of an adapter; tube connection
Measuring parameters	flow; temperature; totaliser
Control	manual
Media	conductive liquids; hydrous media; glycol solutions
Medium temperature [°C]	-10...70
Components	Magnetic-inductive flow meter, SM6000 Temperature transmitter, TA2405 regulating valve

Outputs

Output signal	switching signal; analogue signal; Pulse output; IO-Link (configurable)
Output function	normally open / normally closed;(parameterisable)

Measuring/setting range

Measuring range [l/min]	0.1...25

Measuring range [°C]	-50...150

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-25...80
Protection	IP 67;(sensors)

Tests / approvals

Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	2662.35
Type of mounting	Mounting bracket
Materials	stainless steel (1.4404 / 316L); PEI; PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01)
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK; FKM; NBR; PVDF

Process connection	threaded connection G 1/2 internal thread

Process connection	threaded connection G 1/2 internal thread

Pack quantity	1 pcs.

Electrical connection

	Connector: 2 x M12; Contacts: gold-plated
