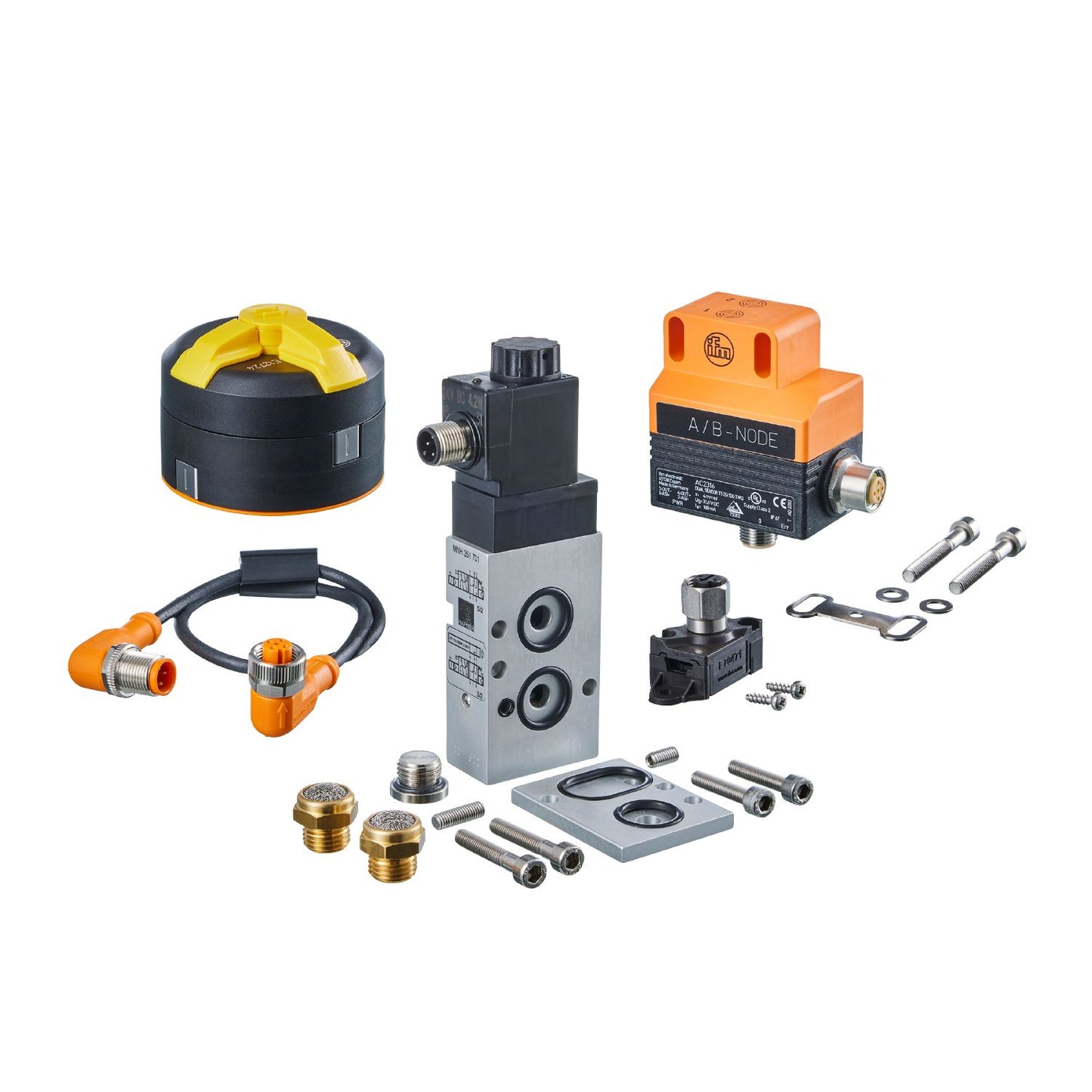

IFM ZZ0669 - AS-Interface automation set for pneumatic valve actuators Added Value package AS-i T5

Complete automation set for quick set-up.
For monitoring valve positions.
For reliable position feedback on valve actuators.
With triggering and fault monitoring of the solenoid valve.
Quick and secure mounting with only three screws

Output function	PNP
Sensing range [mm]	4

Max. current consumption from AS-i [mA]	160
Operating voltage AUX DC [V]	26.5...31.6;("supply class 2" to cULus)

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 1

Inputs

Number of digital inputs	2

Outputs

Number of digital outputs	1
Output function	PNP

Detection zone

Sensing range [mm]	4

AS-i classification

AS-i version	2.1
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E

Weight [g]	763.1
Mounting	non-flush mountable
Hole spacing [mm]	80
Shaft height of valve drive [mm]	30

Accessories

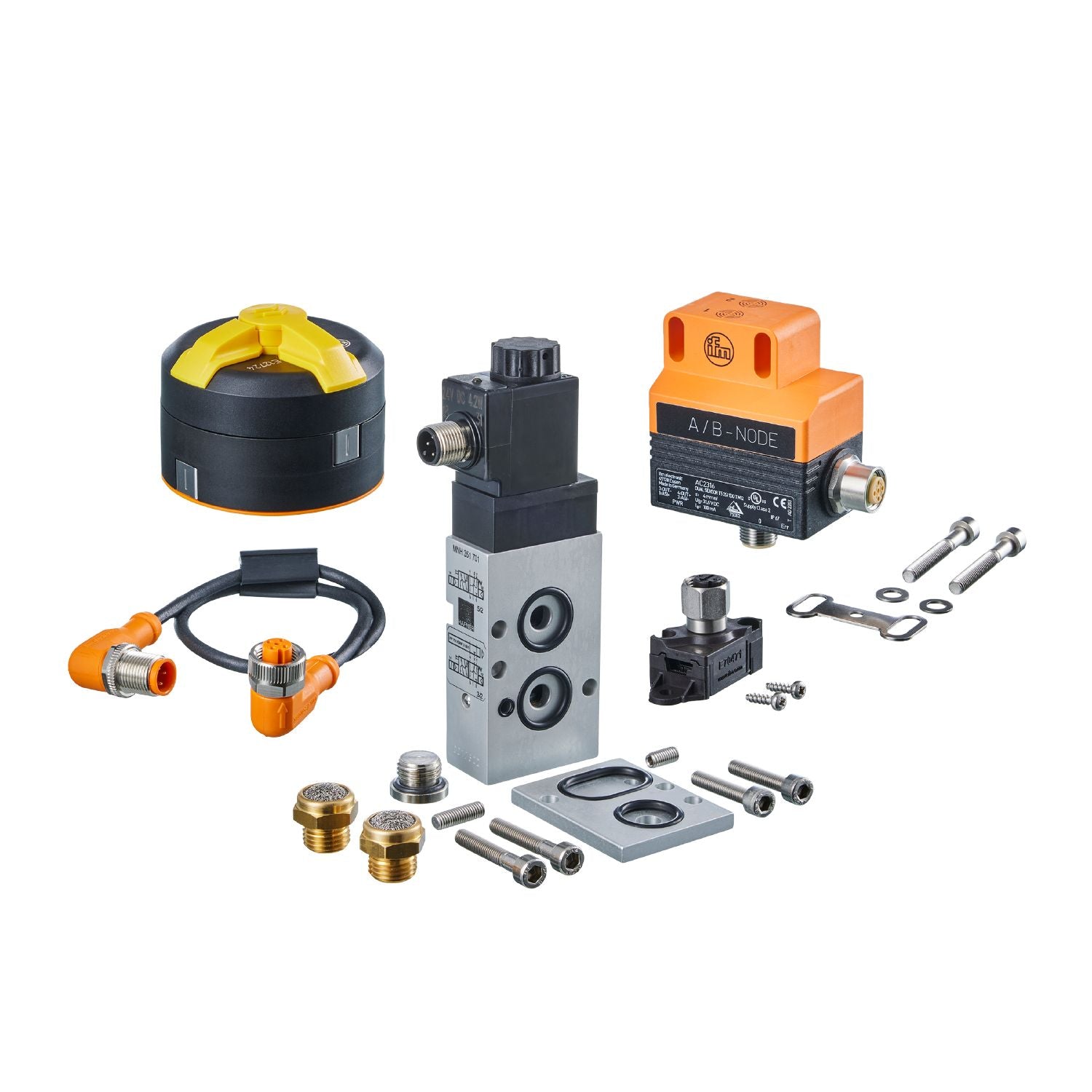

Items supplied	T5 connection: 1, AC2316 target puck: 1, E12724 Flat cable insulation displacement connector: 1, E75471 solenoid valve: 1, Hafner MNH351 silencer: 2 Connection cable: 1, EVC030

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZZ0669-01 — 08.12.2023 —
