IFM ZZ1060 - IO-Link interface SET AL1060 IO-Link Master USB

For quick and easy parameter setting and set-up of IO-Link devices.
Robust M12 connectors for field applications for USB, power, and sensor communication.
Clearly visible LEDs for displaying operation, switching status and error

Application	parameter setting and analysis of units

Nominal voltage DC [V]	5; (USB)
Current consumption [mA]	< 1100;(USB)
Protection class	III
Sensor supply	24 V DC

Current rating per port [A]	0.65

Current rating per port [A]	0.15

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2;(IO-Link port Class A : 1 x 2)
Switching level high [V]	11...30
Switching level low [V]	0...5
Short-circuit protection digital inputs	yes

Outputs

Number of digital outputs	2;(IO-Link port Class A: 1 x 2)
Max. current load per output [mA]	150
Short-circuit proof	yes

Interfaces

Communication interface	IO-Link; USB
Number of USB interfaces	1

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	1

Version	USB 2.0

Operating conditions

Ambient temperature [°C]	-25...50
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 DIN EN 60068-2-6

Weight [g]	388.3
Materials	housing: PA; socket: PA; lock nut: nickel-plated brass
Sealing material	FKM

Displays / operating elements

Display	PWR 1 x LED, green/red power supply IO-Link 1 x LED, green/red communication DI/DO 1 x LED, orange digital input/output

Accessories

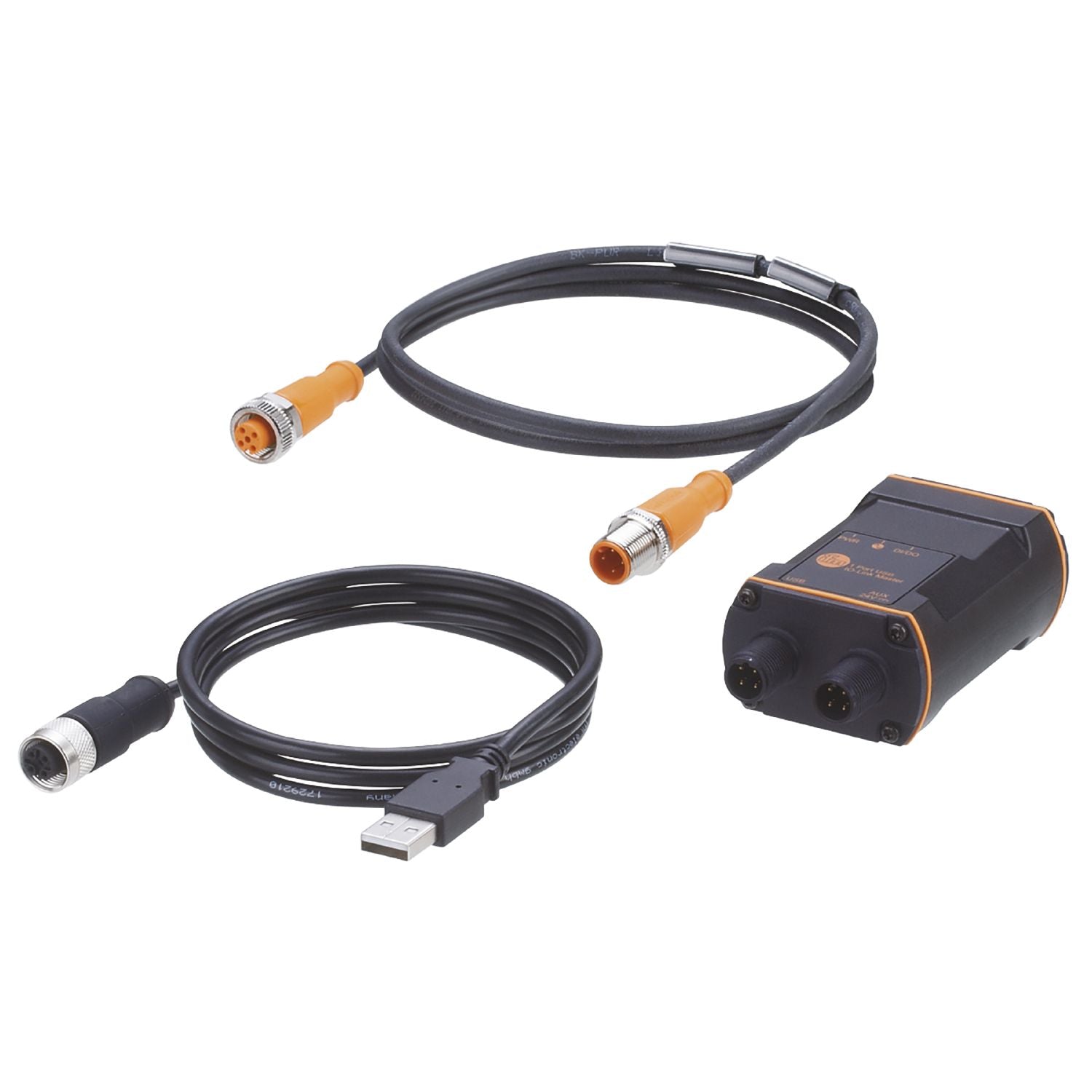

Items supplied	IO-Link master with USB interface: 1, AL1060 Connection cable: 1 m, M12 A-coded, EVC012 USB cable: 1 m, M12 B-coded, E12689
Accessories (optional)	Switched-mode power supply 24 V DC:, M12 A-coded, E80121

Pack quantity	1 pcs.

Electrical connection - AUX

	Connector:M12; coding: A

Electrical connection - IO-Link

	Connector:M12; coding: A; Sealing: FKM

Electrical connection - USB

	; coding: B

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZZ1060-02 — 15.08.2023 —
