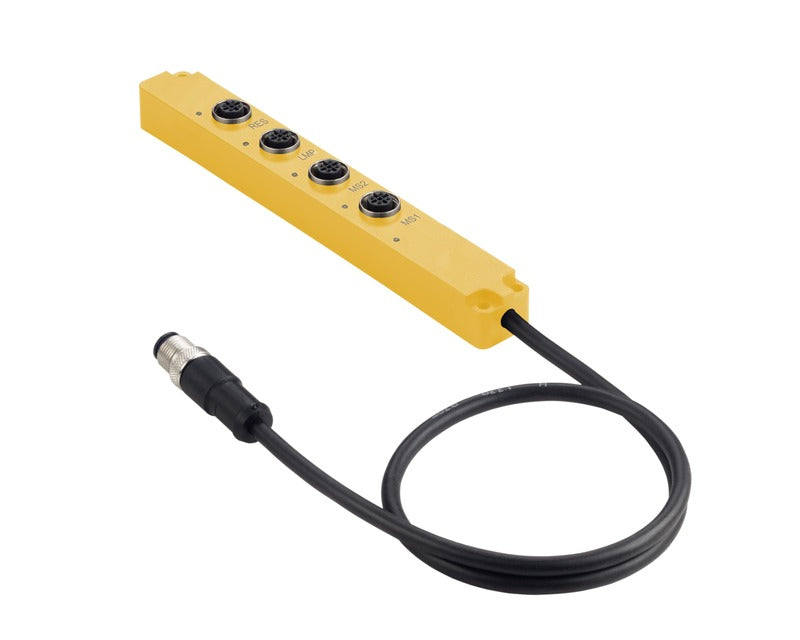

Leuze Electronic AC-SCM5U Sensor connection module

Leuze Electronic AC-SCM5U Sensor-Modul, P\n: 520150

Suitable for: MLD 330, MLD 530 multiple light beam safety devices
Insulation resistance, min.: 10,000,000,000 Ω
Current load, max.: 1 A
Supply voltage UB: 24 V, DC, -20 ... 20 %
Number of connections: 5 Piece(s)
Function: Connection to device, Local interface
Type of connection: Cable with connector
Cable length: 500 mm
Sheathing material: PUR
Thread size: M12
Type: Male
Material: Metal
No. of pins: 5 -pin
Encoding: A-coded
Function: Local input, muting sensor 1
Type of connection: Connector
Designation on device: MS1
Thread size: M12
Type: Female
Material: Metal
No. of pins: 5 -pin
Encoding: A-coded
Function: Local input, muting sensor 2
Type of connection: Connector
Designation on device: MS2
Thread size: M12
Type: Female
Material: Metal
No. of pins: 5 -pin
Encoding: A-coded
Function: Connection - external muting indicator
Type of connection: Connector
Designation on device: LMP
Thread size: M12
Type: Female
Material: Metal
No. of pins: 5 -pin
Encoding: A-coded
Function: Connection - start/muting restart button
Type of connection: Connector
Designation on device: RES
Thread size: M12
Type: Female
Material: Metal
No. of pins: 5 -pin
Encoding: A-coded
Design: Cubic
Dimension (W x H x L): 30 mm x 20.9 mm x 144 mm
Housing material: Plastic
Plastic housing: PA 6
Net weight: 160 g
Housing color: Black
Type of fastening: Through-hole mounting
Type of display: LED
Number of LEDs: 4 Piece(s)
Ambient temperature, operation: -30 ... 80 °C
Customs tariff number: 85369010
ECLASS 5.1.4: 27279201
ECLASS 8.0: 27279219
ECLASS 9.0: 27440108
ECLASS 10.0: 27440108
ECLASS 11.0: 27440108
ECLASS 12.0: 27440108
ECLASS 13.0: 27440108
ECLASS 14.0: 27440108
ETIM 5.0: EC002585
ETIM 6.0: EC002585
ETIM 7.0: EC002585
ETIM 8.0: EC002585
ETIM 9.0: EC002585
