Rittal AS 4050.452, Crimping machine L8
Rittal AS 4050.452, Crimping machine L8
Regular price
€16.390,32
Regular price
Sale price
€16.390,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:AS 4050.452

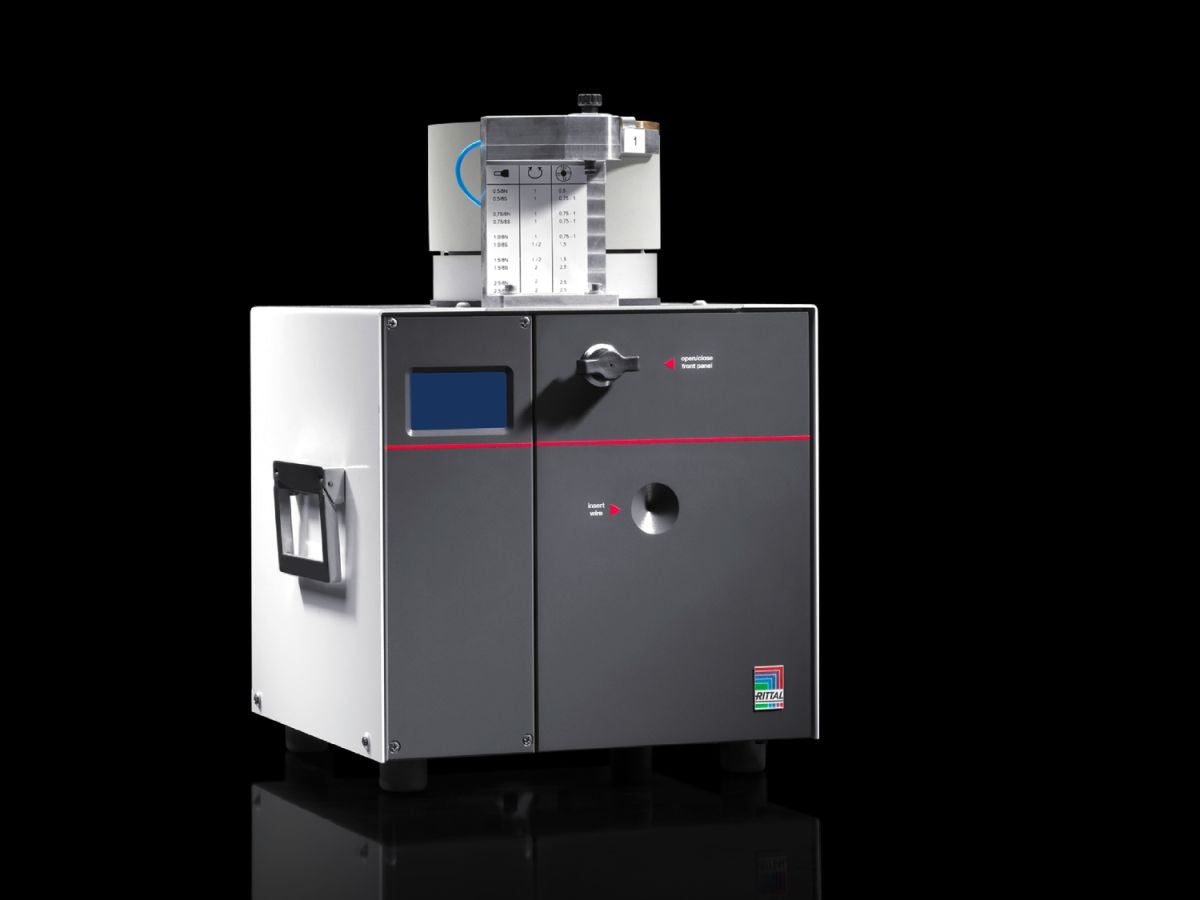

Electro-pneumatically powered wire stripping and crimping machine for loose, insulated wire end ferrules.
| Article number: | AS 4050.452 |
| Design | Touchscreen display |
| Product description | Electro-pneumatically driven wire stripping and crimping centre for loose, insulated wire end ferrules. |
| Benefits | Easy to operate |
| Technical specifications | Crimping range 0.5 - 2.5 mm² (AWG 20 - 14) |
| Supply includes | Crimping machine L81 vibratory bowl feeder 0.5 - 1.5 mm²1 vibratory bowl feeder 1.5 - 2.5 mm² |
| Note | The standard crimping form is trapezoid – others available on request |
| Dimensions | Width: 390 mmHeight: 460 mmDepth: 330 mm |
| Compressed air connection | 5.5 bar |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Apparent power | 110 VA |
| Compression | Trapezoid crimp |
| Cycle time | 1.5 s |
| Packs of | 1 pc(s). |
| Net weight | 34.6 kg |
| Gross weight | 34.67 kg |
| Customs tariff number | 84798997 |
| EAN | 4028177804869 |
| ETIM 9 | EC002778 |
| ETIM 8 | EC002778 |
| ECLASS 8.0 | 36600890 |
| Product description | Crimp machine L 8, 0,5-2,5mm² |
