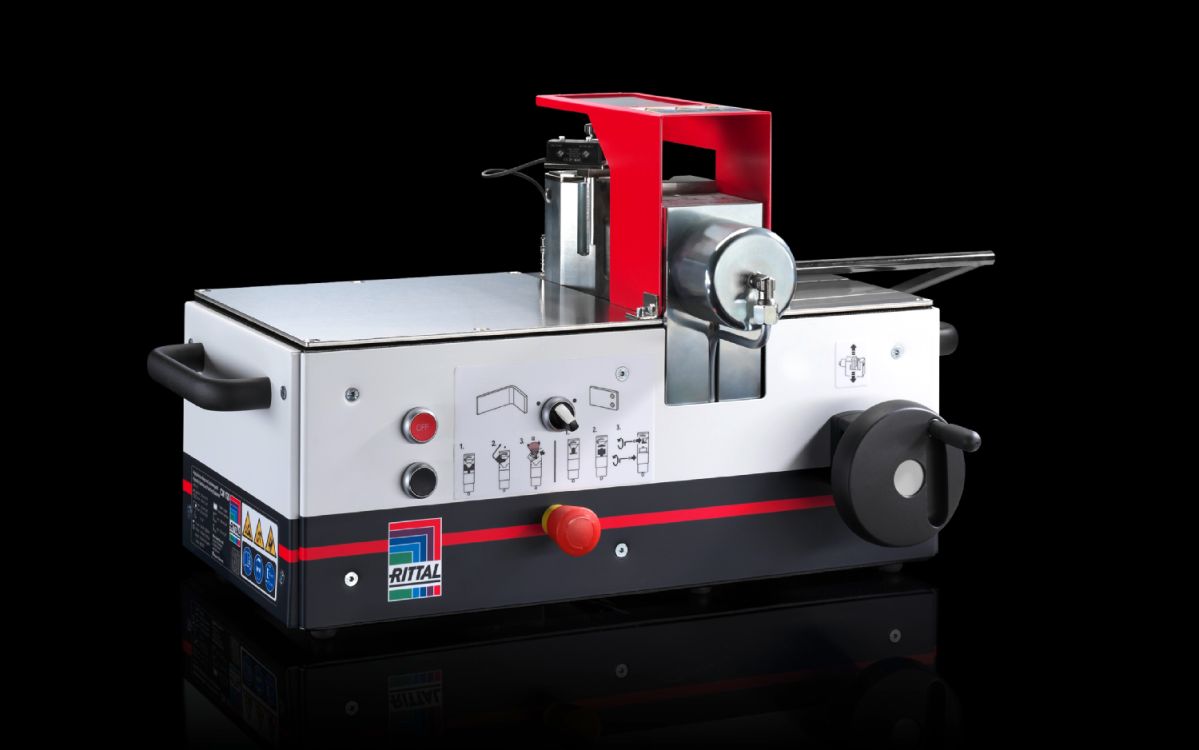

Rittal AS 4055.700, Busbar bending and hole-punching unit CW 120-S
Rittal AS 4055.700, Busbar bending and hole-punching unit CW 120-S
Regular price
€7.021,74
Regular price
Sale price
€7.021,74
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:AS 4055.700
The bending and hole-punching unit in the CW 120-S product series is ideal for bending and punching busbars. It supports the punching of both round holes and slots. The integral precision laser facilitates the cutting and bending process. The bending and hole-punching unit is easily positioned on a workbench.
| Article number: | AS 4055.700 |
| Design | Electric protractorLength stopMandrel R10Bending die |
| Product description | The bending and hole-punching unit in the CW 120-S product series is ideal for bending and punching busbars. Round holes and slots may be punched. The bending and hole-punching unit is easily positioned on a workbench. |
| Benefits | High level of bending and punching accuracy |
| Material thickness | 12 mm |
| Punching/material width (max.) | 120 mm |
| Bending/side length (min.) | 50 mm |
| U-Bend (min.) | 100 mm |
| Z-Bend (min.) | 72 mm |
| Bending angle (max.) | 90 ° |
| Note | With a Z bend, the length of the short side depends on the material thickness |
| Bending (max.) | 120 x 12 mm |
| Punching (max.) | 6.6 x 21.5 mm |
| Machine dimensions | Width: 700 mmHeight: 410 mmDepth: 461 mm |
| Support area | Width: 756 mmHeight: 426 mmDepth: 461 mm |
| Packs of | 1 pc(s). |
| Net weight | 64.5 kg |
| Gross weight | 67.5 kg |
| Customs tariff number | 84624900 |
| EAN | 4028177920668 |
| ETIM 9 | EC004303 |
| ETIM 8 | EC004303 |
| ECLASS 8.0 | 36600804 |
| Product description | CW 120 – S stationary busbar bending and hole-punching unit. The bending and hole-punching unit in the CW 120 – S product series is ideal for bending and punching busbars. It supports the punching of round holes and slots. |
